Help CenterSteel Structure Shot Blasting Cleaning Machine/steel Plate Shot Blasting Machine
Related Products
-
Q69 Series Small Pass-through Type Shot Cleaning MachineUS$ 40,000 - 100,000MOQ: 1 Set -
QH698 Tunnel Pass-through Type Shot Blasting MachineUS$ 20,000 - 50,000MOQ: 1 Set
-
Steel Fabrication Roller Conveyor Shot Blasting MachineUS$ 40,000 - 100,000MOQ: 1 Set
-
Q69 Turbine Wheel Shot Blasting Machine Pass Through TypeUS$ 40,000 - 100,000MOQ: 1 Set
-
Tunnel Type Steel Beam Shot BlastingUS$ 50,000 - 100,000MOQ: 1 Set
Specifications
1.Design based on requirments2.Prompt delivery
3.Competitive price
4.Steel structure blast machine
5.Roller conveyor
Qingdao Antai Heavy Industry Machinery Co., Ltd.
Founded in 2003, 10 years experience for making shot blasting machine.
A group company,having real estate, machinery and leather bags industry.
Eight experienced engineers to consider every possibility for customers.
Three of them has over 25 years knowledge of shot blasting technology.
3D software for auxiliary design. Show every design details in front of you.
Experienced technicians for production, installation, commissioning & service.
ISO 9001:2008 certified company, CE certificate will be issued soon.
All machining parts out sourced from professional CNC machining company with strict quality control procedure.
Own foundry to produce special material spare parts for our machines.
QH69 shot blasting machine is mainly used for surface treatment (namely preheating, rust removal, paint spraying and drying) of steel plate and various structural sections, as well as for cleaning and strengthening of metal structural parts.
| Technical parameter of pass-through type shot blasting machine Q69 | |||||||||
| No. | Model Item |
Q698 | Q6912 | Q6915 | Q6920 | Q6925 | Q6930 | Q6940 | |
| 1 | Width of workpiece | mm | 800 | 1200 | 1500 | 2000 | 2500 | 3000 | 4000 |
| 2 | Size of inlet opening | mm | 800* 1600 |
1200* 400 |
1500* 400 |
2000* 400 |
2500*800 | 3000*800 | 4000*400 |
| 3 | Length of workpiece | mm | 1200- 12000 |
1200- 6000 |
1200- 12000 |
1200- 12000 |
3000-12000 | 2400-12000 | 4500-18000 |
| 4 | Roller speed | m/min | 0.5-4 | 0.5-4 | 0.5-5 | 0.5-4 | 0.5-4.5 | 0.5-4 | 2-8 |
| 5 | Thickness of plate | mm | 3-60 | 3-60 | 1.5-60 | 3-60 | 3-60 | 3-110 | 4.5-110 |
| 6 | Abrasive flow rate | kg/min | 8*120 | 4*250 | 4*250 | 6*250 | 6*250 | 6*360 | 8*360 |
| 7 | Abrasive initial fill | kg | 4000 | 4000 | 4000 | 4500 | 4500 | 8000 | 11000 |
| 8 | Adjusting height of rolling brush | mm | 400 | 200 | 350 | 450 | 600 | 850 | 900 |
| 9 | Ventilation capacity | m3/h | 22000 | 17560 | 19000 | 19550 | 27758 | 28050 | 38000 |
| 10 | Total power of shot blast machine (no dust collector) |
kw | 90 | 78.3 | 113.6 | 156.6 | 224.55 | 204.8 | 293.6 |

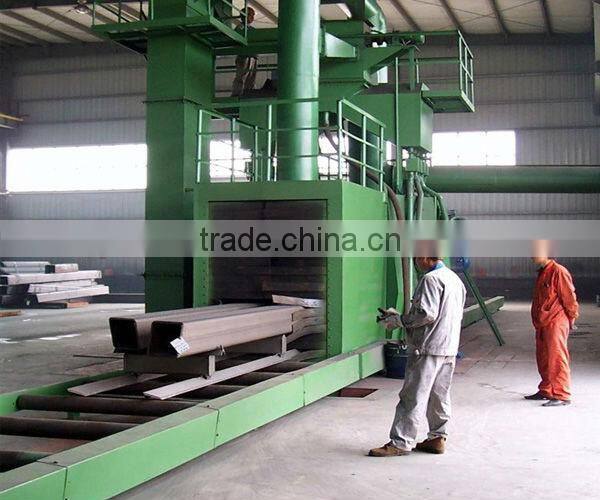

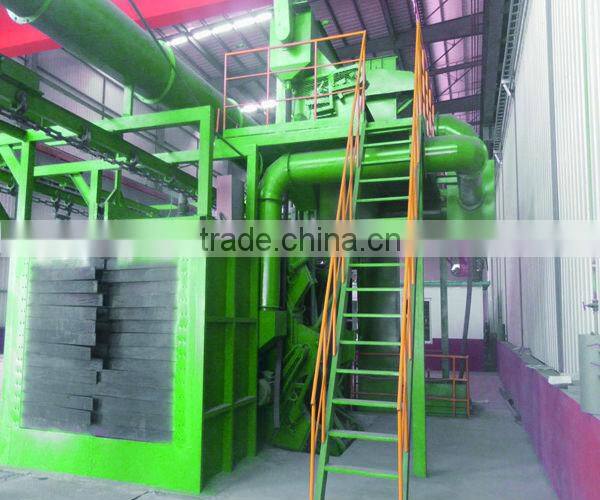

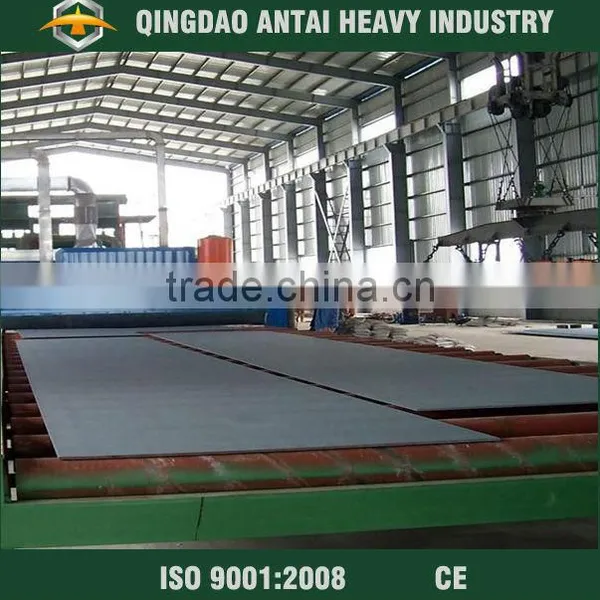

Photos of H steel shot blasting machine:
1.Production time of 40 days h beam shot blasting machine
2.Installation and commissioning time:20 days
3.installation and commissioning issue:Antai will send 1-2 technicians to help with machine installation
and commissioning for our shot blasting machine,customer pays for their tickets,hotel and diet Salary is USD
70 per day per person.
4.warranty time of shot blasting machine:12 months from date of commissioning completion,but no more
than 18 months from date of delivery.
5.Payment term:30% as down payment,70%balance at sight of B/L copy before delivery
6.Antai supply full english (or Russian)documents,including general installation drawing,pit design drawing,
manual book,electric wiring diagram,electric manual book and maintenance book ,etc
