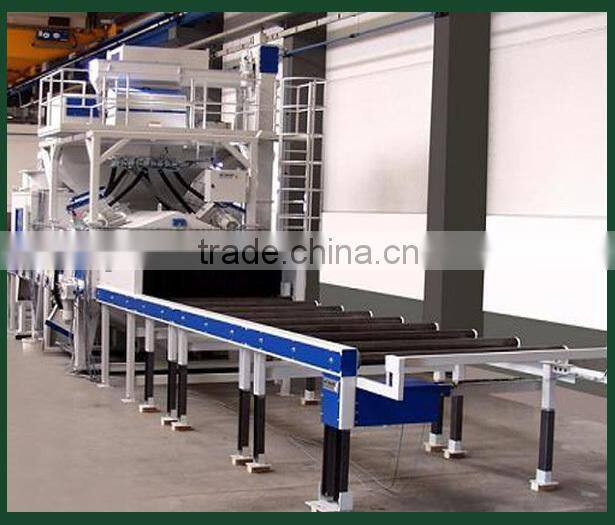

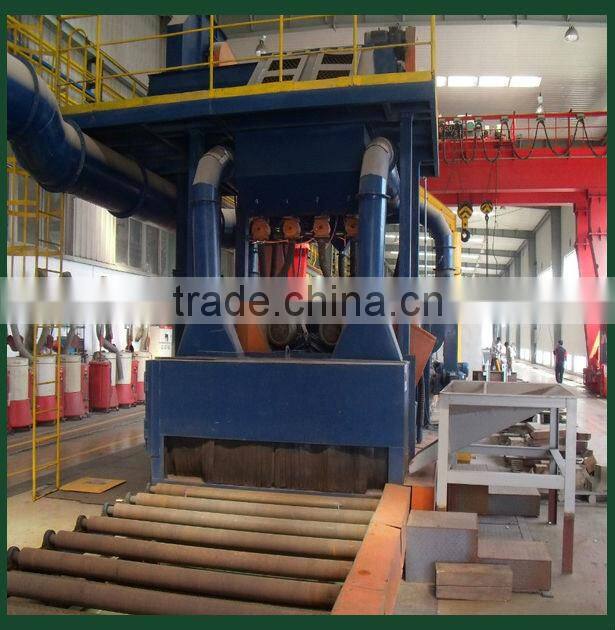

Help CenterQH698 Tunnel Pass-through Type Shot Blasting Machine
Related Products
-
Steel Fabrication Roller Conveyor Shot Blasting MachineUS$ 40,000 - 100,000MOQ: 1 Set -
Q69 Turbine Wheel Shot Blasting Machine Pass Through TypeUS$ 40,000 - 100,000MOQ: 1 Set
-
Tunnel Type Steel Beam Shot BlastingUS$ 50,000 - 100,000MOQ: 1 Set
-
QH698 Tunnel Type Shot Blasting Machine for H BeamsNegotiableMOQ: 1 Set
-
Roller Conveyor Airless Wheel Turbine Shot Blasting MachineUS$ 40,000 - 100,000MOQ: 1 Set
Specifications
1.Design based on requirements2.Prompt Delivery
3.Competitive Price
4.Blasting beams,profile,structur
5.Four turbine whee
Qingdao Antai Heavy Industry Machinery Co., Ltd.
Founded in 2003, 10 years experience for making shot blasting machine.
A group company,having real estate, machinery and leather bags industry.
Eight experienced engineers to consider every possibility for customers.
Three of them has over 25 years knowledge of shot blasting technology.
3D software for auxiliary design. Show every design details in front of you.
Experienced technicians for production, installation, commissioning & service.
ISO 9001:2008 certified company, CE certificate will be issued soon.
All machining parts out sourced from professional CNC machining company with strict quality control procedure.
Own foundry to produce special material spare parts for our machines.

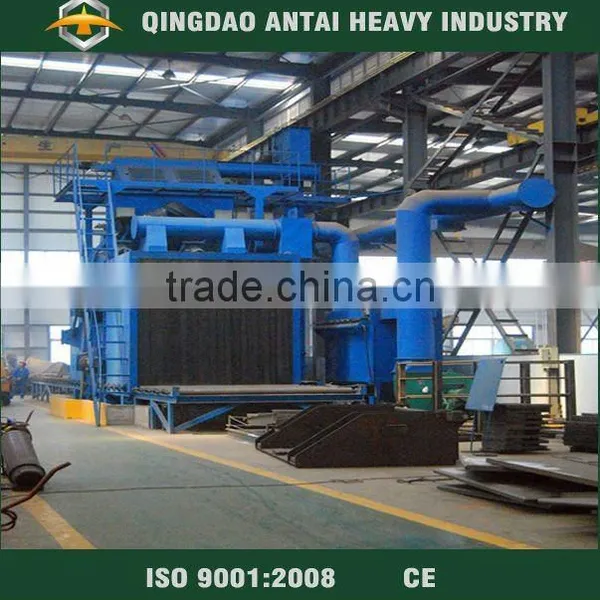

H-beam shot blast machines belong to the roller type shot blast-cleaning machine ,and used to de-stress and surface de-rust.
This series of machines belong to the roller type shot blast-cleaning machine ,and mainly used to de-stress and surface de-rust the steel structures,such as Large-scale H steel,etc.In the construction and bridge professions. We can design different size of shot blasting machine for H beam and other structure steel according to customer's demand.
Technical Specification:
Model: QH698
1. Inlet opening: 800mm* 1000mm
2. Size of H beam: Height≤1000mm, Width ≤800
3. Roller conveyor speed: 0.5-4 m/min, frequency inverter
4. Max load of conveyor: 2000 kg/m
5. Rust removal standard: Sa2.5
6. Number of turbine: 8 pcs
7. Power of turbine: 7.5 KW* 8
8. Total power of this machine: about 130 KW
9. Protective liner of cabinet: ZGMn 13
10. Dust collector: cartridge type dust collector
11. Noise level: ≤90 dB
| Technical parameter of pass-through type shot blasting machine Q69 | |||||||||
| No. | Model Item |
Q698 | Q6912 | Q6915 | Q6920 | Q6925 | Q6930 | Q6940 | |
| 1 | Width of workpiece | mm | 800 | 1200 | 1500 | 2000 | 2500 | 3000 | 4000 |
| 2 | Size of inlet opening | mm | 800* 1600 |
1200* 400 |
1500* 400 |
2000* 400 |
2500*800 | 3000*800 | 4000*400 |
| 3 | Length of workpiece | mm | 1200- 12000 |
1200- 6000 |
1200- 12000 |
1200- 12000 |
3000-12000 | 2400-12000 | 4500-18000 |
| 4 | Roller speed | m/min | 0.5-4 | 0.5-4 | 0.5-5 | 0.5-4 | 0.5-4.5 | 0.5-4 | 2-8 |
| 5 | Thickness of plate | mm | 3-60 | 3-60 | 1.5-60 | 3-60 | 3-60 | 3-110 | 4.5-110 |
| 6 | Abrasive flow rate | kg/min | 8*120 | 4*250 | 4*250 | 6*250 | 6*250 | 6*360 | 8*360 |
| 7 | Abrasive initial fill | kg | 4000 | 4000 | 4000 | 4500 | 4500 | 8000 | 11000 |
| 8 | Adjusting height of rolling brush | mm | 400 | 200 | 350 | 450 | 600 | 850 | 900 |
| 9 | Ventilation capacity | m3/h | 22000 | 17560 | 19000 | 19550 | 27758 | 28050 | 38000 |
| 10 | Total power of shot blast machine (no dust collector) |
kw | 90 | 78.3 | 113.6 | 156.6 | 224.55 | 204.8 | 293.6 |
notice :
According to your requirements,the most suitable machines will be designed for your workpieces please indicate the folloing details.
1.what kind of workpiece will you clean ?
2.The workpiece size,length ,width and height of maximum workpiece?
3.How many workpiecs do you want to clean per day ?
Based on this question,the detailed technical proposals will be sent to you for reference.
1.Production time of 40 days h beam shot blasting machine
2.Installation and commissioning time:20 days
3.installation and commissioning issue:Antai will send 1-2 technicians to help with machine installation
and commissioning for our shot blasting machine,customer pays for their tickets,hotel and diet Salary is USD
70 per day per person.
4.warranty time of shot blasting machine:12 months from date of commissioning completion,but no more
than 18 months from date of delivery.
5.Payment term:30% as down payment,70%balance at sight of B/L copy before delivery
6.Antai supply full english (or Russian)documents,including general installation drawing,pit design drawing,
manual book,electric wiring diagram,electric manual book and maintenance book ,etc
