Specifications
Q69series roller conveyor Shot blasting systems for steel plates and structural steel sections.Specifications
fessional manufacturer
2.cleaning steel plate and structure
petitive price
4.delivery soon
5.OEM

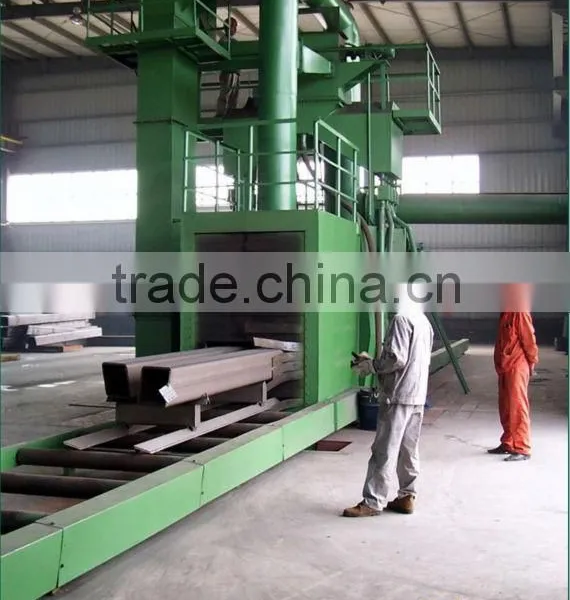

Q69 STEEL PLATE ,SECTION SHOT BLAST CLEAN-UP MACHINE
Designed and produced by adopting the advantages of similar products from both within the country and abroad.the rusting cleaning part(shot blast cleaning )adopts high-efficient blast wheel and full shutter type shot sand separator. The sweeping machine adopts specially made high-strength nylon rolling brush and high-pressure ventilator.the preheating and drying part may adopt various heating methods.the paint spraying part adopt high-pressure airless spraying methods.the complete set of equipment is controlled by PLC, and is the large-size complete equipment of international advanced level.
It is mainly used for surface treatment(namely preheating,rust removal,paint spraying and drying )of steel plate and various structural sections,as well as for cleaning and srenghening of metal structure parts.
We can design and produce for our customer according to the cleaning requirements of workpiece.
parts of machine :
machine advantages :
advanced design, reasonable structure ,low-power consumption and perfect efficiency
Our main market : EU, USA.SOUTH AMERICA,OCEANIA,MIDDLE-EAST AND SOUTH-EAST ASIA AND SO ON
Technique parameter
Q69 series pass-through type shot blast machine | |||||||||
Serial number |
Item |
Type |
Q698 |
Q6912 |
Q6915 |
Q6920 |
Q6925 |
Q6930 |
Q6940 |
1 |
Effictive cleaning width |
Mm |
800 |
1200 |
1500 |
2000 |
2500 |
3000 |
4000 |
2 |
Dimension of inlet opening |
Mm |
800*1600 |
1200*400 |
1500*400 |
2000*400 |
2500*800 |
3000*800 |
4000*400 |
3 |
Length of cleaning piece |
Mm |
1200-12000 |
1200-6000 |
1200-12000 |
1200-12000 |
3000-12000 |
2400-12000 |
4500-48000 |
4 |
Roller speed(slepless speed requlation) |
m/min |
0.5-4 |
0.5-4 |
0.5-4 |
0.5-4 |
0.5-4.5 |
0.5-4 |
2-8 |
5 |
Thickness of cleaning steel plate |
Mm |
3-60 |
3-60 |
1.5-60 |
3-60 |
3-60 |
3-110 |
4.5-100 |
6 |
Specification of the treated sectional bars |
16-28 |
|||||||
7 |
Abrasive flow rate |
Kg/min |
8*120 |
4*250 |
4*250 |
6*250 |
6*250 |
6*360 |
8*360 |
8 |
Abrasive initial filling |
Kg |
4000 |
4000 |
4000 |
4500 |
4500 |
8000 |
11000 |
9 |
Adjusting height of rolling brust(scraping plate) |
Mm |
4000 |
200 |
350 |
450 |
600 |
850 |
900 |
10 |
Ventilation capacity |
M3/h |
22000 |
17560 |
19000 |
19550 |
27758 |
28050 |
3800 |
11 |
Outline dimensions |
Mm |
25017*4500*9015 |
12180*4250*7095 |
15200*5370*6797 |
30650*6850*9095 |
31200*8070*7500 |
44042*6385*7758 |
45000*7830*11117 |
12 |
Pit depty |
Mm |
1937 |
1616 |
2257 |
2800 |
2353 |
2800 |
4317 |
13 |
Total power |
Kw |
90 |
78.3 |
113.5 |
156.6 |
224.55 |
204.8 |
293.6 |
14 |
Gross weight of machine |
T |
20 |
20.4 |
33 |
41 |
53.2 |
71.8 |
75 |
