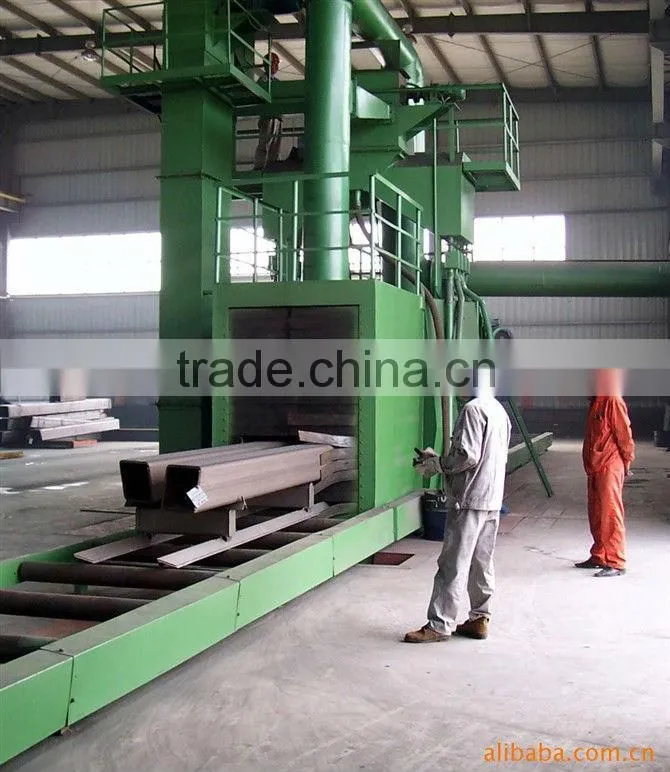

Help CenterSee Larger Image Shot Blasting Abrator for Steel Plate, H Beam and Steel Pipes
Related Products
-
Q69 Series Roller Conveyor Shot Blasting Machine/surface Shot Blasting Machine Quality ChoiceUS$ 50,000 - 70,000MOQ: 1 Set -
Q69 Roller Conveyor Stone Shot Blasting MachineUS$ 40,000 - 100,000MOQ: 1 Set
-
Steel Pipe Shot Blast Cleaning Machine/steel Plate Shot Blast Cleaning MachineUS$ 40,000 - 100,000MOQ: 1 Set
-
Steel Structure Shot Blasting Cleaning Machine/steel Plate Shot Blasting MachineUS$ 50,000 - 70,000MOQ: 1 Set
-
Q69 Series Small Pass-through Type Shot Cleaning MachineUS$ 40,000 - 100,000MOQ: 1 Set
Specifications
steel structure shot blasting1.OEM & ODM available
2.Good Cleanness Effectness
3.Environment friendly
Main technical parameters
The series shot blasting machine is used for construction industry, bridge industry. The series steel plate, model material pretreatment line is made up of warm-up,s hot blasting, spray-paint, drying. According to customers requirements, we could shot blasting for stand-alone. It also could continue work through online to realize warm-up, shot blasting, spray-paint, drying. It is used for removing rust, painting(pretreatment) of steel plate, profiled steel. It is ideal equipment for shipping, automobile, locomotive, machine, bridge, oil artesian well platform, port and dock facilities, container, boiler industry. The production line is controlled by PLC machine. It adopts shift storage and photo electricity check, automatic measurement of the thickness and width of the plate, automatic adjustment the width of shot blasting belt and the height of cleaning device. The whole line rolling bearing four frequency control. It could be subsection or the whole line fine tuning. It can assure that shot blasting, painting drying quality of pretreatment steel material.
parameter |
Q698 |
Q6912 |
Q6915 |
Q6920 |
Q6925 |
Q6930 |
Q6940 |
The effective cleaning width(mm) |
800 |
1200 |
1500 |
2000 |
2500 |
3000 |
4000 |
The room feed-in size |
1000*400 |
1400*400 |
1700*400 |
2200*400 |
2700*800 |
3200*800 |
4200*400 |
The length of cleaning workpiece(mm) |
1200-12000 |
1200-1600 |
1200-12000 |
1200-12000 |
3000-12000 |
2400-12000 |
4500-18000 |
The speed of wheel conveyer(m/min) |
0.5-4 |
0.5-4 |
0.5-4 |
0.5-4 |
0.5-4 |
0.5-4 |
0.5-4 |
The thickness of cleaning steel sheet (mm) |
3-60 |
3-60 |
1.5-60 |
3-60 |
3-60 |
3-110 |
4.5-100 |
Steel spectification (mm) |
800*300 |
1000*300 |
1500*300 |
2000*300 |
2500*700 |
3000*700 |
4000*300 |
The quantity of shot blasting (kg/min) |
4*180 |
4*250 |
4*250 |
6*250 |
6*250 |
6*360 |
8*360 |
The first enclosed quantity (kg) |
4000 |
4000 |
4000 |
4500 |
4500 |
8000 |
11000 |
Roll brush adjusting height (mm) |
200 |
200 |
350 |
450 |
600 |
850 |
900 |
Air capacity(m3/h) |
22000 |
17560 |
19000 |
19550 |
27758 |
28050 |
38000 |
Exterior size (mm) |
|
|
|
|
|
|
|
Total power (kw) |
90 |
78.3 |
113.5 |
156.6 |
204.8 |
224.55 |
293.6 |
