Help CenterDouble Hook Type Shot Blast Cleaning Machine
Related Products
-
QD378 Rotary Hook Type Shot Blasting MachineUS$ 8,000 - 10,000MOQ: 1 Set -
Q485 Monorail Type Shot Blasting MachineNegotiableMOQ: 1 Set
-
High Speed Abrasive Blasting MachineNegotiableMOQ: 1 Set
-
Q485 Monorail Type Hanger Shot Blasting MachineUS$ 29,000 - 59,000MOQ: 1 Set
-
Q378 Rotary Hook Type Hanger Shot Blasting Cleaning MachineUS$ 50,000 - 70,000MOQ: 1 Set
Specifications
1.Double hook or signle hook2.Two turbine wheels
3.Competitive Price
4.ISO 9001:2008
5.Rotary blasting process
Qingdao Antai Heavy Industry Machinery Co., Ltd.
Founded in 2003, 10 years experience for making shot blasting machine.
A group company,having real estate, machinery and leather bags industry.
Eight experienced engineers to consider every possibility for customers.
Three of them has over 25 years knowledge of shot blasting technology.
3D software for auxiliary design. Show every design details in front of you.
Experienced technicians for production, installation, commissioning & service.
ISO 9001:2008 certified company, CE certificate will be issued soon.
All machining parts out sourced from professional CNC machining company with strict quality control procedure.
Own foundry to produce special material spare parts for our machines.
Double hook type shot blast cleaning machine is widely used in foundry plant, forging tal processing.
The double hook or Y track rail shot-blasting machines are the most versatile in terms of typical employment and size of the materials to be treated. Moreover the motorised hoists installed on the overhead conveyor allow the lifting of very high loads. The customer can choose the size and loading capacity of the machine according to the parts to be shot-blasted.
Q37 series double hook type shot blast cleaning machine is mainly used for surface cleaning and strengthening of steel parts, castings, aluminum alloy parts and other parts are widely used in casting pressure segment, machinery, iron and steel industries. Q37 series of the clean-up equipment with or without pit, double hook does not change the track, compact structure, and high productivity.
Double hook configuration, working independently of each other, independently of each other, to improve production efficiency, the spreader using planetary principle, rotation Orbital simultaneously, the processed workpieces does not exist yin surface.
Technique parameter:
| Type | Size of work piece cleaned | Carrying weight of single hook | Capacity of shot-blasting | lifting capacity of hoist | Separating capacity of separator | Ventilation capacity | power(excluding dedusting | Outline dimensions |
| mm | kg | kg/min | t/h | t/h | m3 /h | kw | mm | |
| QD3710 | Ø900*1600 | 1000 | 2*250 | 30 | 30 | 9000 | 39.65 | 5844*2742*5716 |

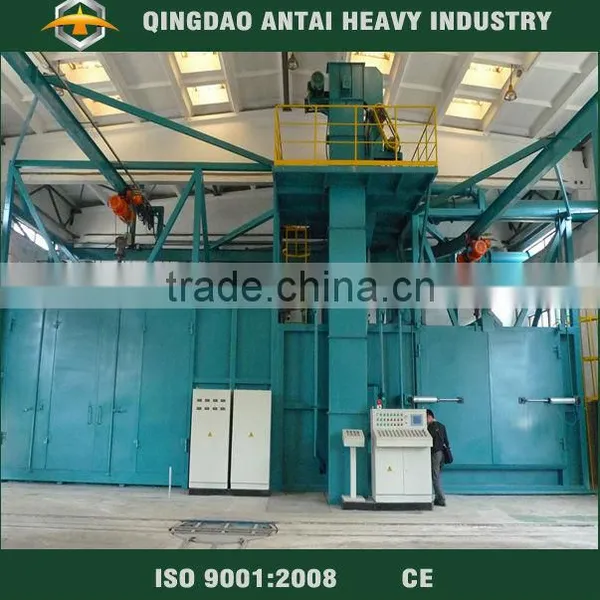

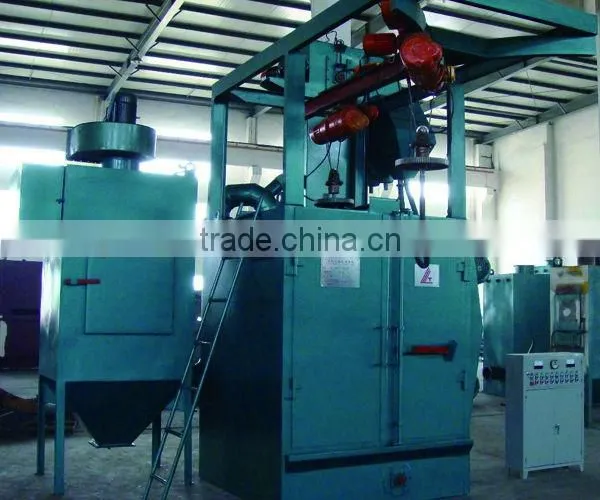

Photos of hook shot blasting machine:
