Help CenterHanger Chain Shot Peening Blasting Machine
Related Products
-
Hanger Pass Through Type Shot Blasting MachineUS$ 35,000 - 80,000MOQ: 1 Set -
Q38 Series of Hanger Chain Type Shot Blasting MachineUS$ 40,000 - 100,000MOQ: 1 Set
-
Single Or Double Hook Type Shot and Air Blast MachineUS$ 20,000 - 60,000MOQ: 1 Set
-
Q38 Series Hanging Chain Automatic Shot Blasting MachineUS$ 50,000 - 100,000MOQ: 1 Set
-
Single or Double Hook Type Surface Cleaning Equipment Shot Blasting MachineUS$ 40,000 - 100,000MOQ: 1 Set
Specifications
1.Design based on requirments2.Prompt Delivery
3.Competitive Price
4.shot blast wheel
5.Labor saving
OUR CUSTOMER:
Qingdao Antai Heavy Industry Machinery Co., Ltd.
Founded in 2003, 10 years experience for making shot blasting machine.
A group company,having real estate, machinery and leather bags industry.
Eight experienced engineers to consider every possibility for customers.
Three of them has over 25 years knowledge of shot blasting technology.
3D software for auxiliary design. Show every design details in front of you.
Experienced technicians for production, installation, commissioning & service.
ISO 9001:2008 certified company, CE certificate will be issued soon.
All machining parts out sourced from professional CNC machining company with strict quality control procedure.
Own foundry to produce special material spare parts for our machines.
Wheel sand blasting machine:

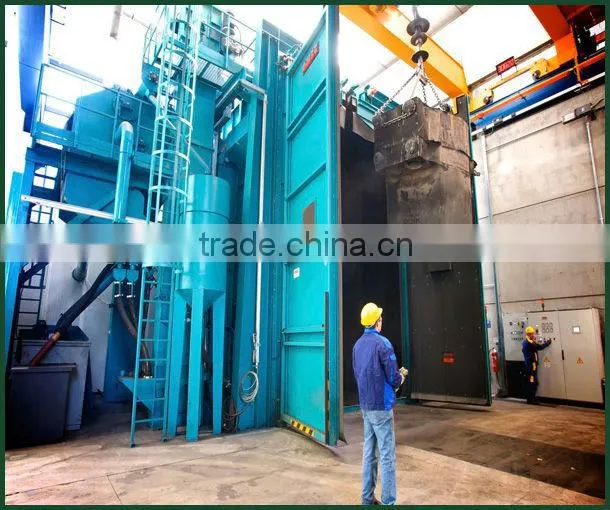

The tunnel type wheel shot blasting machine DELTAMATIC are designed to increase the performance of the hook type machines by keeping the turbines continuously running.

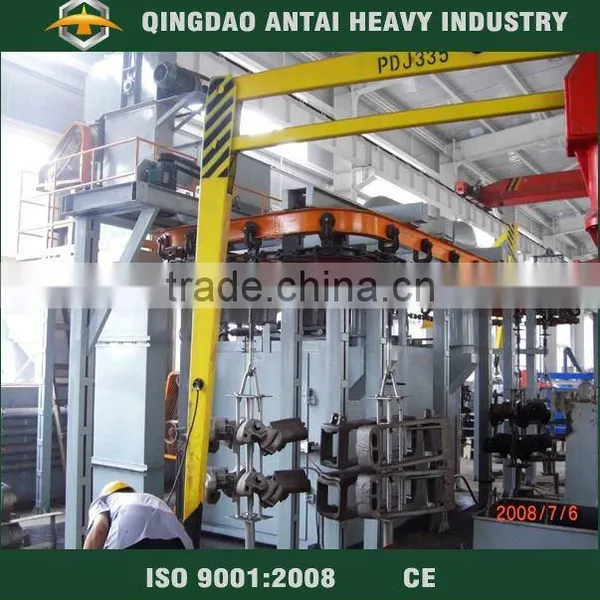

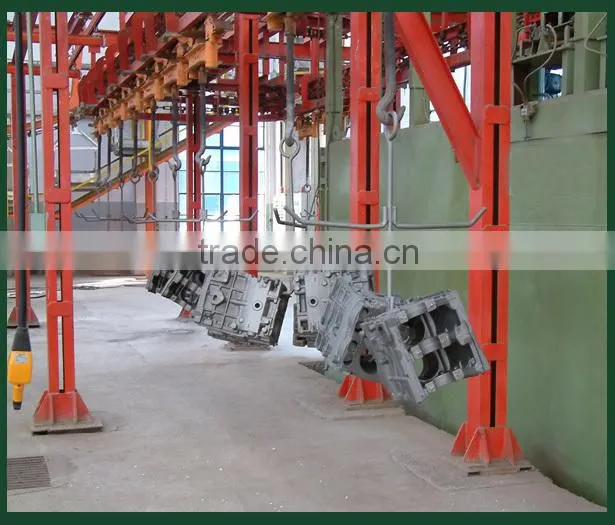

The materials are hanged on several hooks connected to a ring type overhead conveyor, which can be monorail, double rail or with hoists.
The hook inside the wheel shot blasting machine, once in position, starts to rotate on its axis and move back and forward in front of the turbines (mounted on one side of the machine). These combined movements ensure the complete shot blasting of the parts external surface.
The customer can choose the size and loading capacity of the shot blasting machine according to the parts to be shot-blasted.
Depending on the height of the machine, the installation may require a pit. The shot blasting unit is supplied complete with a self-cleaning dry cartridges dust collector.
Shot blasting machine, overhead rail shot blast machine, monorail sand blasting machine
Technical specification:
| No | Item | step moving type shot blasting machine | Continuous moving shot blast machine | ||||
| Q483 | Q485 | Q4810 | Q583 | Q5810 | |||
| 1 | Max weight of piece | kg | 300 | 500 | 800 | 300 | 1000 |
| 2 | Size of workpiece | mm | 1000*1400 | 1200*1700 | 700*2400 | 1000*1500 | 750*2400 |
| 3 | Abrasive flow rate | kg/m | 2*250 | 3*250 | 6*360 | 4*250 | 6*360 |
| 4 | Productivity | Hook/h | 10 | 10 | 10 | 30-60 | 50 |
| 5 | Speed of chain | m/min | 2.44 | 7.34 | 2.44 | Converter speed | |
| 6 | Lifting distance of pendant chain | mm | 2560 | 2560 | 2560 | 1000 | |
| 7 | Ventilation capacity | M3/h | 6000 | 10000 | 25000 | 18000 | 25000 |
| 8 | Power(not include dust collector) | kw | 38.75 | 58.43 | 85 | 127.25 | 160 |
| 9 | Outline dimension of shot blasting machine | mm | 8450*5350 *5003 |
12235*5410 *9411 |
4500*5350 *5003 |
18000*5960 *6440 |
17700*9615 *10000 |
NOTICE:
According to your requirements,the most suitable machines will be designed for your workpieces please indicate the folloing details.
1.what kind of workpiece will you clean ?
2.The workpiece size,length ,width and height of maximum workpiece?
3.How many workpiecs do you want to clean per day ?
Based on this question,the detailed technical proposals will be sent to you for reference.
1.Production time of 40 days hook shot blasting machine
2.Installation and commissioning time: 20 days
3.installation and commissioning issue:Antai will send 1-2 technicians to help with machine installation
and commissioning for our shot blasting machine,customer pays for their tickets,hotel and diet Salary is USD70 per day per person.
4.warranty time of shot blasting machine:12 months from date of commissioning completion,but no more
than 18 months from date of delivery.
5.Payment term:30% as down payment,70%balance at sight of B/L copy before delivery
6.Antai supply full english (or Russian)documents,including general installation drawing,pit design drawing,
manual book,electric wiring diagram,electric manual book and maintenance book ,etc
WELCOME YOU TO VISIT OUR FACTORY
