Help CenterQ38 Series Hanging Chain Automatic Shot Blasting Machine
Related Products
-
Single or Double Hook Type Surface Cleaning Equipment Shot Blasting MachineUS$ 40,000 - 100,000MOQ: 1 Set -
QT37 Hook Airless Blasting Cleaning MachineUS$ 15,000 - 30,000MOQ: 1 Set
-
Q58 Hanging Chain Type Shot Blassting Cleaning MachineUS$ 40,000 - 100,000MOQ: 1 Set
-
Q38/Q48 Hanger Chains Shot Blasting Cleaning MachineUS$ 80,000 - 120,000MOQ: 1 Set
-
Q38 Continuous Chain Shot Blast MachineUS$ 45,000 - 80,000MOQ: 1 Set
Specifications
1.Design based on requirements2.Prompt Delivery
3.Competitive Price
4.Overhead conveyor
5.Continuous flow process
Qingdao Antai Heavy Industry Machinery Co., Ltd.
Founded in 2003, 10 years experience for making shot blasting machine.
A group company,having real estate, machinery and leather bags industry.
Eight experienced engineers to consider every possibility for customers.
Three of them has over 25 years knowledge of shot blasting technology.
3D software for auxiliary design. Show every design details in front of you.
Experienced technicians for production, installation, commissioning & service.
ISO 9001:2008 certified company, CE certificate will be issued soon.
All machining parts out sourced from professional CNC machining company with strict quality control procedure.
Own foundry to produce special material spare parts for our machines.
Detailed Product Description
1. wheel blasting machine
2. works are hanged on several hooks
3. a ring type overhead conveyor
4. monorail rail with hoist
hanging chain automatic shot blasting machine
The tunnel type machines DELTAMATIC are designed to increase the performance of the hook type machines by keeping the turbines continuously running.

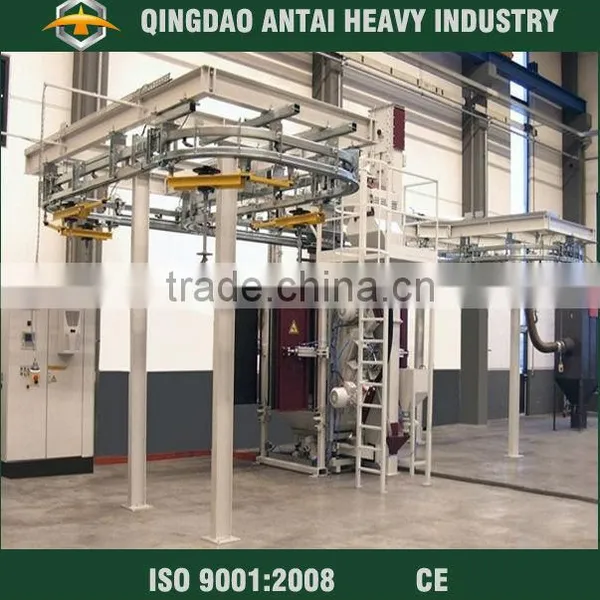

The materials are hanged on several hooks connected to a ring type overhead conveyor, which can be monorail, double rail or with hoists.
The hook inside the blasting room, once in position, starts to rotate on its axis and move back and forward in front of the turbines (mounted on one side of the machine). These combined movements ensure the complete shot-blasting of the parts external surface.
The customer can choose the size and loading capacity of the machine according to the parts to be shot-blasted.
Depending on the height of the machine, the installation may require a pit. The shot-blasting unit is supplied complete with a self-cleaning dry cartridges dust collector.
Technical specification:
| No | Item Model | Pendant chain step-type blasting machine | Pendant chain continuous blast machine | ||||
| Q483 | Q485 | Q4810 | Q583 | Q5810 | |||
| 1 | Max weight of piece | kg | 300 | 500 | 800 | 300 | 1000 |
| 2 | Size of workpiece | mm | 1000*1400 | 1200*1700 | 700*2400 | 1000*1500 | 750*2400 |
| 3 | Abrasive flow rate | kg/m | 2*250 | 3*250 | 6*360 | 4*250 | 6*360 |
| 4 | Productivity | Hook/h | 10 | 10 | 10 | 30-60 | 50 |
| 5 | Speed of chain | m/min | 2.44 | 7.34 | 2.44 | Converter speed | |
| 6 | Lifting distance of pendant chain | mm | 2560 | 2560 | 2560 | 1000 | |
| 7 | Ventilation capacity | M3/h | 6000 | 10000 | 25000 | 18000 | 25000 |
| 8 | Power(not include dust collector) | kw | 38.75 | 58.43 | 85 | 127.25 | 160 |
| 9 | Outline dimension | mm | 8450*5350 *5003 |
12235*5410 *9411 |
4500*5350 *5003 |
18000*5960 *6440 |
17700*9615 *10000 |

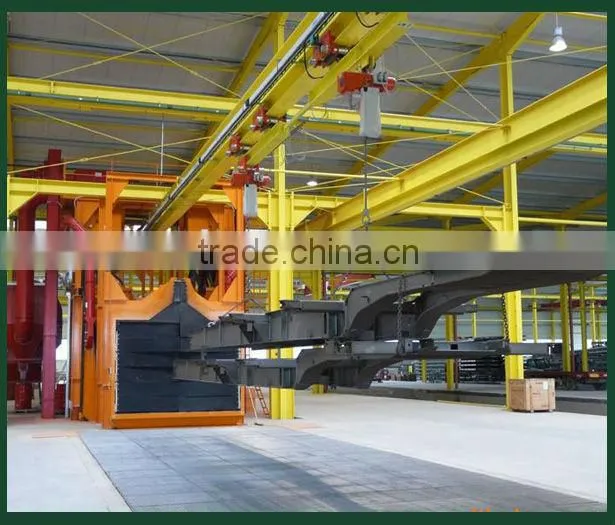

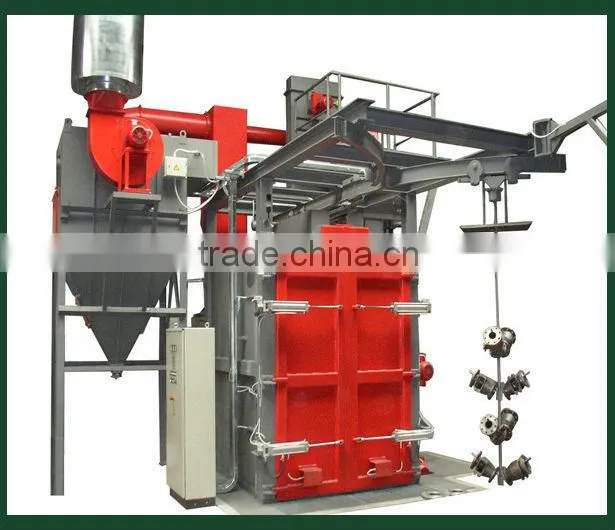

Photos of hanger chain shot blasting machine:
