Veiculo Smart Terminal GPS Veiculo Rastreamento With Free Rastreamento Platform

Veiculo Smart Terminal GPS Veiculo Rastreamento With Free Rastreamento Platform photo-1
Veiculo Smart Terminal GPS Veiculo Rastreamento With Free Rastreamento Platform photo-2
Veiculo Smart Terminal GPS Veiculo Rastreamento With Free Rastreamento Platform photo-3
Veiculo Smart Terminal GPS Veiculo Rastreamento With Free Rastreamento Platform photo-4

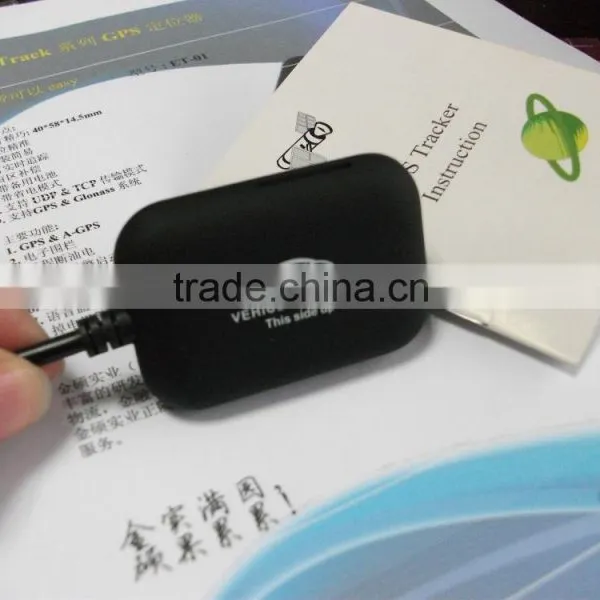

Veiculo Smart Terminal GPS Veiculo Rastreamento With Free Rastreamento Platform photo-5
US$ 25.00 - 28.00 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Type:
Vehicle GPS tracker V.3
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Type Vehicle GPS tracker V.3

Veiculo Smart Terminal GPS Veiculo Rastreamento with Free Rastreamento Platform

Product Description



What's the specifical of the Car GPS tracker ET-01 ?

Size
40*58*14.5mm
Working Voltage
DC:6-30v
Input Fuse
2A
Working Temperature
-40-85
Humidity
10%-69%
CPU
MT6261D(260MHz)









GSM Module

*Band:850/900/1800/1900MHz
*Tally with: GSM phase 2/2+
*-Class 4 (2W @ 850/900MHz)
*-Class 1 (1W @ 1800/1900MHz)
*GPRS multi-slot class 1GPRS mobile station class B
*Max RF Output: 33.0dBm±2dBm
*Dynamic Input Range: -15 ~ -102dBm
*Receiving delicacy: Class RBER≤2%(-105dBm)
*Frequency Stability: > 2.5ppm
*Max Frequency Deviation: ±0.1ppm
*RMS Deviation:  ≤5deg





















GPS Module

*GPS chip set: U-BLOX 7
*Frequency: L1, 1575.42 MHz, GPS L1 C/A.
Number of Channel: 56,SBAS L1C/A,QZSSL1C/A.
*GPS sensitivity:-164dBm
*Positioning accuracy: 5m
*Reacquisition: 0.1 sec, average
*Hot boot: 2 sec., average
*Warm boot: 38 sec., average
*Cold boot: 44 sec., average
*Altitude limit: 18000 m
*Velocity limit: 515 m/s

I/O Port

4 I/O cables
1.Positive 6V-30V. red wire
2.Negative. Black wire

3.Remote cut off engine power. Yellow wire
4ACC, engine ignition detecting. Green wire

Current
*Sleep mode: 4mA
*.working Current: 60~150mA
*Charging current: Max<500mA



 Veiculo Smart Terminal GPS Veiculo Rastreamento with Free Rastreamento Platform

Veiculo Smart Terminal GPS Veiculo Rastreamento with Free Rastreamento Platform

Veiculo Smart Terminal GPS Veiculo Rastreamento with Free Rastreamento Platform











Veiculo Smart Terminal GPS Veiculo Rastreamento with Free Rastreamento Platform

                                                              ↓



Veiculo Smart Terminal GPS Veiculo Rastreamento with Free Rastreamento Platform



                                                             ↓



Veiculo Smart Terminal GPS Veiculo Rastreamento with Free Rastreamento Platform



                                                                 ↓

Veiculo Smart Terminal GPS Veiculo Rastreamento with Free Rastreamento Platform

 Veiculo Smart Terminal GPS Veiculo Rastreamento with Free Rastreamento PlatformVeiculo Smart Terminal GPS Veiculo Rastreamento with Free Rastreamento PlatformVeiculo Smart Terminal GPS Veiculo Rastreamento with Free Rastreamento PlatformVeiculo Smart Terminal GPS Veiculo Rastreamento with Free Rastreamento PlatformVeiculo Smart Terminal GPS Veiculo Rastreamento with Free Rastreamento PlatformVeiculo Smart Terminal GPS Veiculo Rastreamento with Free Rastreamento PlatformVeiculo Smart Terminal GPS Veiculo Rastreamento with Free Rastreamento Platform

Main Features
1. Small size

2. Accurate locating

3. Easy installing

4. Real-time Positioning & Tracking

5. Blind area compensation

6. Built-in battery

7. Power saving mode

8. Support UDP & TCP protocol

9. Support GPS & Glonass system



Main Functions

 1. GPS & A-GPS (LBS—location based service


2. Geo-fence

3. Remote controlling oil & circuit

4. ACC. Engine start detection

5. Vibration detecting alarm

6. Over speed alert

7. Audio monitoring (optional)

8. External power cut alert

FAQ

Q: Can I get the sample order

A:yes, we welcome sample order to test and check the quality, Mix samples are acceptalbe

Q:How did yo ship the goods and how long does it take arrive

A:we ususally ship by DHL,FedEx,EMS, TNT, it should be 3-5days to get

Q:How is the quality, and how to guarantee for the products

A: we get CE certification about GPS tracker, and factory processed ISO9001, push 7S to control workshops enviorment and goods quality, and 100% testing before pakcing. check one by one.
