Home > Electrical & Electronics > GPS > GPS Tracker > GPS Tracker With One Year Battery ET-01 With Free Tracking Platform

GPS Tracker With One Year Battery ET-01 With Free Tracking Platform

GPS Tracker With One Year Battery ET-01 With Free Tracking Platform thumbnail-3

GPS Tracker With One Year Battery ET-01 With Free Tracking Platform thumbnail-4

GPS Tracker With One Year Battery ET-01 With Free Tracking Platform thumbnail-5

GPS Tracker With One Year Battery ET-01 With Free Tracking Platform photo-1

GPS Tracker With One Year Battery ET-01 With Free Tracking Platform photo-2

GPS Tracker With One Year Battery ET-01 With Free Tracking Platform photo-3

GPS Tracker With One Year Battery ET-01 With Free Tracking Platform photo-4

GPS Tracker With One Year Battery ET-01 With Free Tracking Platform photo-5

US$ 25.00 - 28.00 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Type:

Vehicle GPS tracker V.3

Contact Supplier Request Quote Chat Now

Shenzhen Linkconn Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Vehicle GPS tracker V.3

GPS Tracker with one year battery ET-01 with Free Tracking Platform

Product Description

What's the specifical of the Car GPS tracker ET-01 ?

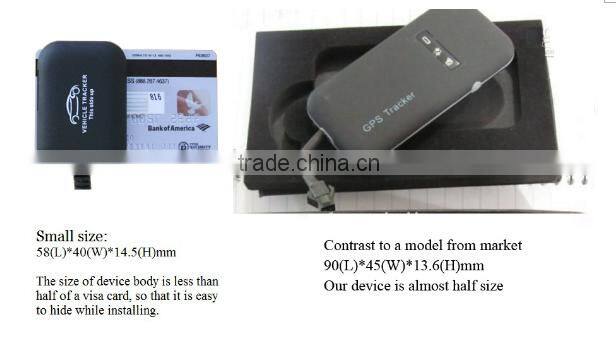

Size	405814.5mm
Working Voltage	DC:6-30v
Input Fuse	2A
Working Temperature	-40-85
Humidity	10%-69%
CPU	MT6261D(260MHz)
GSM Module	Band:850/900/1800/1900MHz Tally with: GSM phase 2/2+ -Class 4 (2W @ 850/900MHz) -Class 1 (1W @ 1800/1900MHz) GPRS multi-slot class 1GPRS mobile station class B Max RF Output: 33.0dBm±2dBm Dynamic Input Range: -15 ~ -102dBm Receiving delicacy: Class RBER≤2%(-105dBm) Frequency Stability: > 2.5ppm Max Frequency Deviation: ±0.1ppm *RMS Deviation: ≤5deg

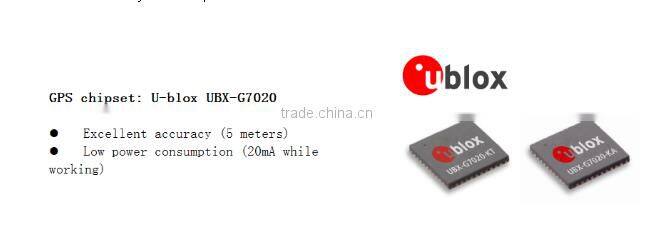

GPS Module	GPS chip set: U-BLOX 7 Frequency: L1, 1575.42 MHz, GPS L1 C/A. Number of Channel: 56,SBAS L1C/A,QZSSL1C/A. GPS sensitivity:-164dBm Positioning accuracy: 5m Reacquisition: 0.1 sec, average Hot boot: 2 sec., average Warm boot: 38 sec., average Cold boot: 44 sec., average Altitude limit: 18000 m Velocity limit: 515 m/s

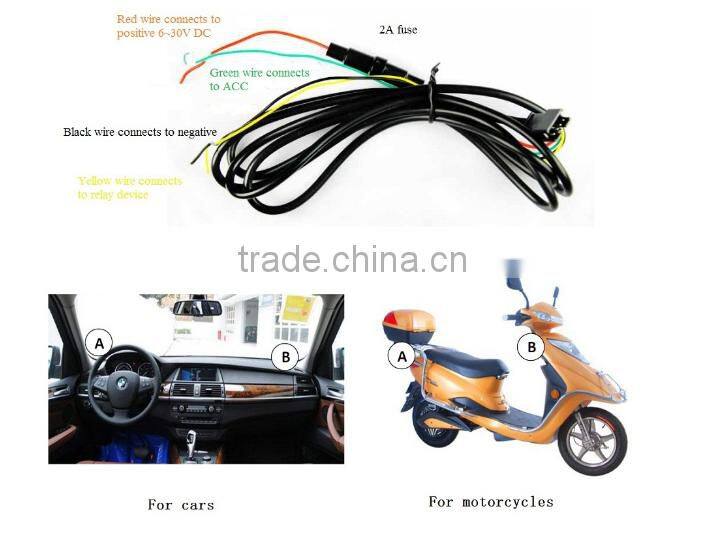

I/O Port	4 I/O cables 1.Positive 6V-30V. red wire 2.Negative. Black wire 3.Remote cut off engine power. Yellow wire 4ACC, engine ignition detecting. Green wire
Current	Sleep mode: 4mA .working Current: 60~150mA *Charging current: Max<500mA

↓

Main Features

1. Small size

2. Accurate locating

3. Easy installing

4. Real-time Positioning & Tracking

5. Blind area compensation

6. Built-in battery

7. Power saving mode

8. Support UDP & TCP protocol

9. Support GPS & Glonass system

Main Functions

1. GPS & A-GPS (LBS—location based service

2. Geo-fence

3. Remote controlling oil & circuit

4. ACC. Engine start detection

5. Vibration detecting alarm

6. Over speed alert

7. Audio monitoring (optional)

8. External power cut alert

FAQ

Q: Can I get the sample order

A:yes, we welcome sample order to test and check the quality, Mix samples are acceptalbe

Q:How did yo ship the goods and how long does it take arrive

A:we ususally ship by DHL,FedEx,EMS, TNT, it should be 3-5days to get

Q:How is the quality, and how to guarantee for the products

A: we get CE certification about GPS tracker, and factory processed ISO9001, push 7S to control workshops enviorment and goods quality, and 100% testing before pakcing. check one by one.
