720P USB PTZ IP Video Conference Camera for PC Conference
Specifications
USB PTZ IP video conference cameraHD 720P 1.3mp
IR remote control
5M USB cable
4.5MM Fixed lens
720P USB PTZ IP video conference camera for PC conference
The unique feature: USB 2.0 video output ,One USB Cable can both transfer video and control the pan tilt movement ,no need additional control cable. Main Features:
|
l 4MM Fixed lens USB Camera---Model Number HD650-USB l 3x optical zoom USB Camera---Model Number HD651-USB
|

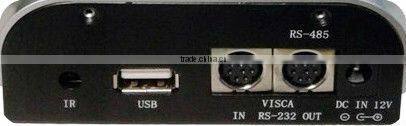

Interface:
Spec sheet:
Model No. | HD650-USB | HD651-USB | |
Image Sensor | Sensor | 1/2.5" CMOS | |
Effective Pixels | 1.3 Megapixel | ||
Illumination | 5.0Lux @F2.0 | ||
White Balance | Auto/Manual | ||
Gain Control | Auto | ||
Back-light | On / Off | ||
E-Shutter | |||
S/N Ratio | > 50db | ||
Lens | Focus | 4mm fixed lens f=4 F=1.6 | f=5-15mm F1.6 |
Iris | Auto/Manual | ||
Zoom | 3 optical x 3 digital zoom | ||
Lens HOV | 72.5° | 19°-41° | |
Video Output | USB | ||
Video Output Model | 720P@30 | ||
Communication Interface | EIA/RS232C,EIA/RS485C (Bidirectional) | ||
Communication | VISCA/PELCO-D | ||
Baud Rate | 9600/38400bps | ||
Tour | 4 Line | ||
Preset | 64 | ||
Speed Matching | Pan/Tlit movement speed depends on camera module zoom in/out | ||
OSD Menu | Access to OSD Menu and adjust camear module para meters | ||
Image Auto Flip | Support Horizontal/Vertical image flip | ||
Pan Speed | 1-280 degree per second | ||
Tilt Speed | 1-100 degree per second | ||
Pan Rotation Angle | 360° Continuously Pan Movement | ||
Tilt Rotation Angle |
Tilt: ±120degree | ||
Auto Pan Scan | Support auto pan scan | ||
Boundary Scan | 0-359 degree (programmable) | ||
Remote Controller | IR wireless control P/T/Z | ||
Power Supply | DC12V±10%, 2A | ||
Working Temperature | 0-50°C | ||
Environment Humidity | 0-95%RH | ||
Size(LxWxH) | 124X120X145mm | ||
Weight | 800g | ||
