720p High Definition Video Conferencing Camera
1080p, 720p FULL HD
Installation WALL/CEILING/TRIPOD
Features
Full HD (1920x1080 30p) video
HDMI/HD-SDI Interface
359° Pan, 240° Tilt
Variety of 25 settings video mode (1920x1080 30p (EIS not available), 1920x1080 24p(EIS not available), 1920x1080 15p(EIS available), 1280x720 60p(EIS not available), 1280x720HR 30p(EIS available), 1280x720HR 24p(EIS available) , 1280x720HR 15p(EIS available), Cinema 1680x720 30p(EIS not available), Cinema 1680x720 24p(EIS not available), 525-HS 30p(EIS available), 525-HS 15p(EIS available), 525-HR 30p(EIS available), 525-HR 15p(EIS available), 625-HS 25p(EIS available), 625-HS 10p(EIS available), 625-HR 25p(EIS available), 625-HR 10p(EIS available), VGA-HS 30p(EIS available), VGA-HS 15p(EIS available), VGA-HR 30p, (EIS available) VGA-HR 15p(EIS available)) *HR: hyper resolution mode, HS: high sensitivity mode
EIS: Electric Image Stabilizer
High resolution video with Progressive Scan
2.1 M high resolution still image capture
Custom preset
Light source estimated color correction
Focus preset function
Light and sharp optical x10 zoom lens, F1.8 – 2.2, with mechanical shutter
Approx.1 cm wide macro
High sensitivity image capture functionality
Provided with HOST I/F Two-wire serial interface
Digital image output using multiplexed 16-bit parallel interface
Low power consumption, 800 mW at 1080 30p video input and output
Built-in EIS (Electronic Image stabilizer for movie )
Support scene mode : Night, Wide Dynamic Range, and High color temperature

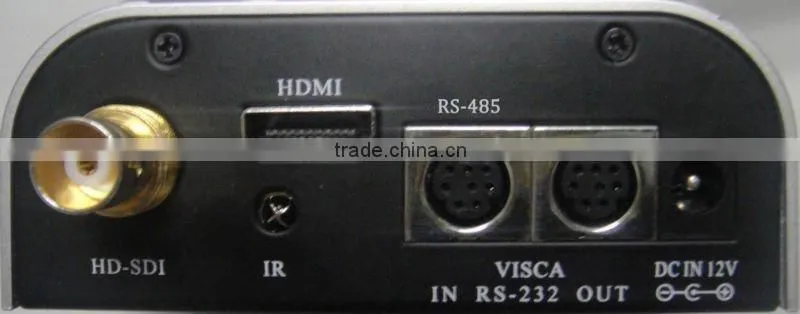

Interface
HDMI
SDI
VISCA
IR remote control
12v Power
RS-485/232
Installation
WALL/CEILING/TRIPOD
Specification sheet
|
Image SenSor |
Sensor |
1/2.5 model, primary color CMOS, 2.1 M compatible |
Signal System |
PAL/NTSC |
|
Minimum Scene lllumination |
1Lux at F1.8 |
|
White Balance |
AUTO/Manual |
|
Gain Control |
AUTO |
|
Back-light compensation |
ON/OFF |
|
Electronic shutter |
1/5~1/4000S |
|
S/N Ratio |
>50db |
|
Lens |
Focus |
AUTO |
Iris |
AUTO/Manual |
|
Zoom |
10 Optical ZOOM |
|
1/3.6model f=4.5-45mm F1.8-2.2 | ||
Video Output |
HD-SDI |
|
HDMI | ||
Control Decoder |
EIA/RS-485 |
|
Communication |
EIA/RS-232(Bidirectional) |
|
PTZ Control Protocol |
VISCA,PELCO-P,PELCO-D |
|
Baud Rate |
4800/9600 bps |
|
Patrol tours |
4 |
|
Preset |
64 |
|
Save status after Power off |
Support |
|
Speed Matching Function |
Support |
|
OSD Menu |
Support |
|
Image Auto Flip |
Support |
|
Pan Speed |
0-100 degrees/s |
|
Tilt Speed |
0-80 degrees/s |
|
Pan Rotation Angle |
359degrees |
|
Tilt Rotation Angle |
240degrees |
|
Auto Pan Scan |
Support |
|
Boundary Scan |
0-359degrees(Programable) |
|
Remoter Control |
IR Wireless remote control P/T/Z |
|
Power |
DC12V ±10% 1.2A |
|
Operation Temperature |
-10°C~60°C |
|
Environmental humidity |
0-95%RH(non-condensaion) |
|
Length X width X high |
124x120x145mm/220x175x220mm(NET/PACKAGE) |
|
Weight |
800g/1300g(NET/PACKAGE) |
|
