HDMI/HD-SDI High Speed Dome PTZ 1080P Video Conference HD Camera

HDMI/HD-SDI High Speed Dome PTZ 1080P Video Conference HD Camera thumbnail-1
HDMI/HD-SDI High Speed Dome PTZ 1080P Video Conference HD Camera photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Video Conference System
Function:
Other, video
Simultaneous Interpretation:
Yes
Contact Supplier Request Quote Chat Now
Shenzhen Oneking Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Video Conference System
Function Other, video
Simultaneous Interpretation Yes
Place of Origin Guangdong, China
Brand Name 1king/OEM
Model Number HD-380

Specifications

1080P video conference HD camera
10X Optical Zoom
HDMI/HD-SDI Output
HOV 49 degree
IR remote controller

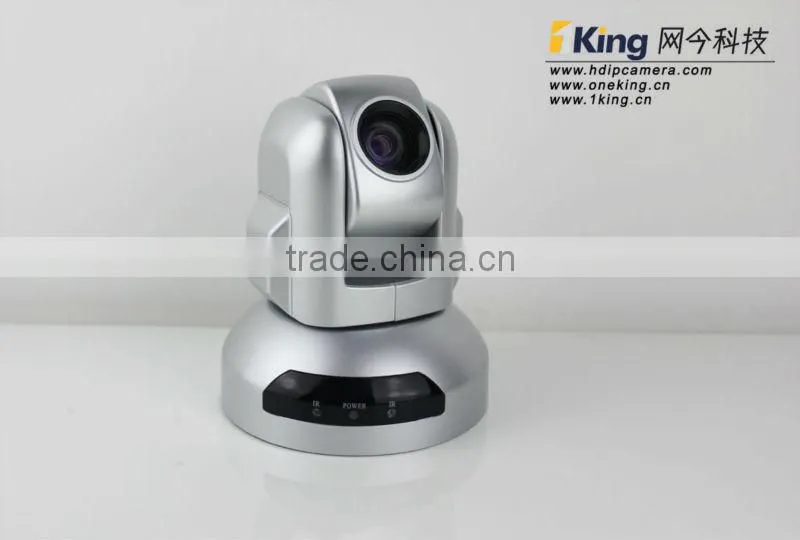

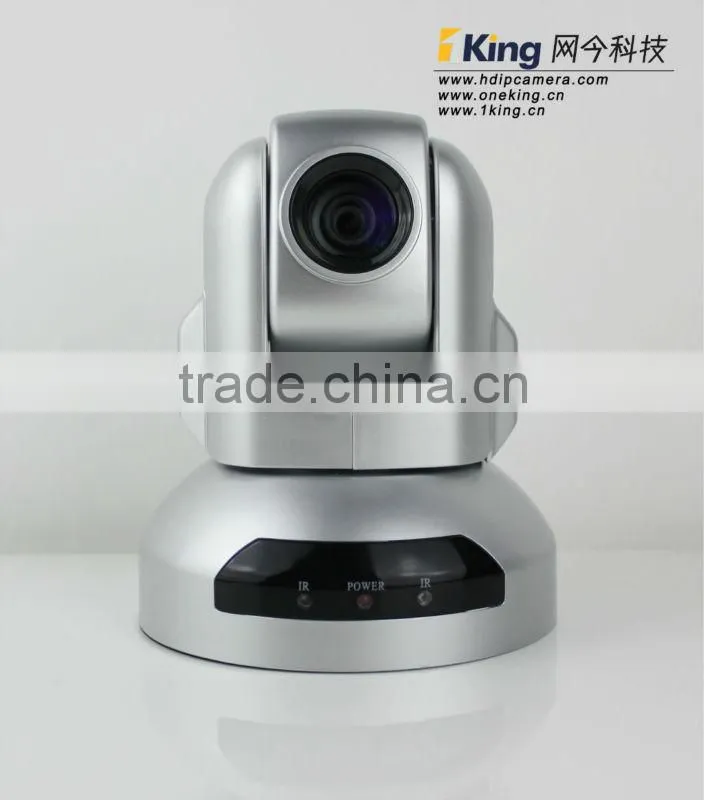

HDMI/HD-SDI high speed dome PTZ 1080P video conference HD camera

video conference HD camera

01) Full HD (1920x1080 30p)
02) 10X Optical Zoom
1/2.5 model, primary color CMOS, 2.1 M compatible
1/3.6 model f = 4.5 – 45.0 mm F1.8 – 2.2
03) 359° Pan, 240° Tilt

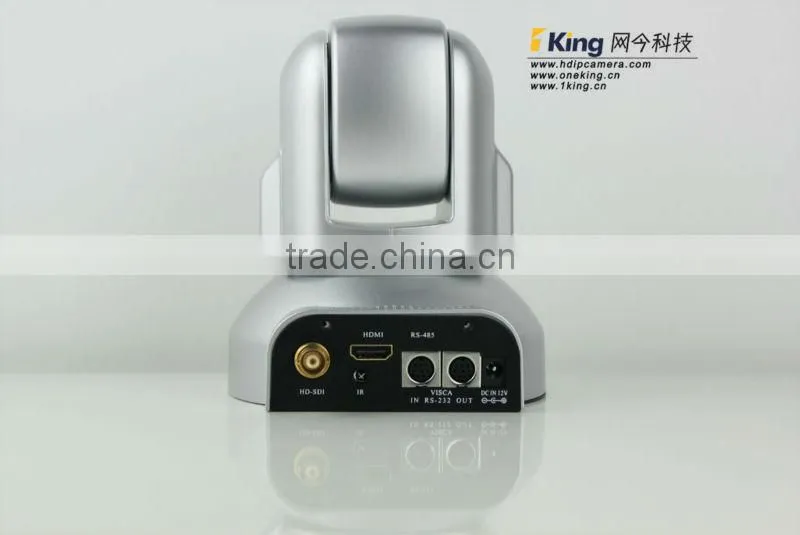

04) HDMI/HD-SDI Output
05) RS-485/RS-232

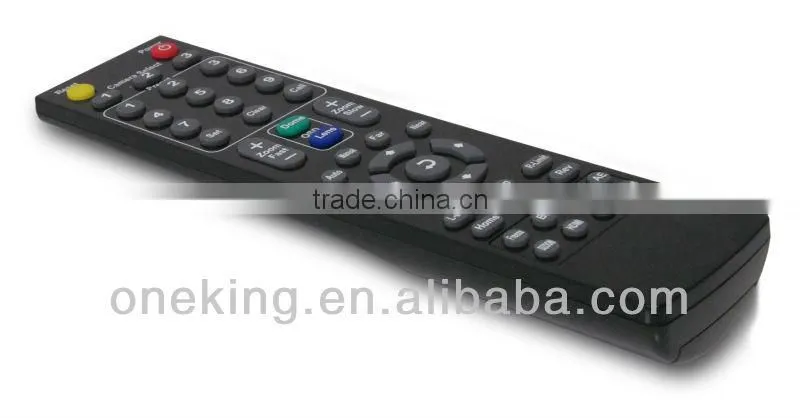

06) IR Remote controller (New)
07) -10 degree C to +60 degree C
08) Desktop/Tripod/Wall installation



Model:HD380

<
Model No.
HD380



Image Sensor
Sensor
1/2.5" CMOS
2.0 Mega Pixel


Effective Pixels
2.1 Megapixel
Illumination
1.0Lux at F1.8
White Balance
Auto/Manual
Gain Control
Auto
Back-light
compensation
On / Off
E-Shutter
1/5~1/4,000S
S/N Ratio
> 50db
Lens
Focus
f=4.5-45mm F1.8-2.2
Iris
Auto/Manual


Zoom x
10x Optical Zoom


Lens HOV
48.4°

Video Output
HDMI,HD-SDI

Video Output Model
1080P@30/25/24,1080i@60/50,720P@60/50

Communication Interface
EIA/RS232C,EIA/RS485C (Bidirectional)
Communication
Control Protocol
VISCA,PELCO-D
Baud Rate
4800/9600bps
Tour
4 Line
Preset
64
Speed Matching
    Pan/Tlit movement speed depends on camera module zoom in/out
OSD Menu
  Access to OSD Menu and adjust camear module para meters
Image Auto Flip
image auto flip when move camera vertically over 90°
Pan Speed
1-280 degree per second
Tilt Speed
1-100 degree per second
Pan Rotation Angle
0~359 degree
Tilt Rotation Angle
±120 degree
Auto Pan Scan
Support auto pan scan
Boundary Scan
0-359 degree (programmable)
Remote Controller
IR wireless control P/T/Z
Power Supply
DC12V±10%, 1.2A
Working Temperature
0-50°C
Environment Humidity
0-95%RH
Size(LxWxH)
124X120X145mm
Weight
800g



HDMI/HD-SDI high speed dome PTZ 1080P video conference HD cameraHDMI/HD-SDI high speed dome PTZ 1080P video conference HD cameraHDMI/HD-SDI high speed dome PTZ 1080P video conference HD cameraHDMI/HD-SDI high speed dome PTZ 1080P video conference HD camera
