Multi-interface HDMI/DVI/HD-SDI/YUV/CVBS 1080p HD Room Conference Camera for Video Conference Room

Multi-interface HDMI/DVI/HD-SDI/YUV/CVBS 1080p HD Room Conference Camera for Video Conference Room thumbnail-1
Multi-interface HDMI/DVI/HD-SDI/YUV/CVBS 1080p HD Room Conference Camera for Video Conference Room photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Video Conference System
Function:
Other, video
Simultaneous Interpretation:
Yes
Contact Supplier Request Quote Chat Now
Shenzhen Oneking Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Video Conference System
Function Other, video
Simultaneous Interpretation Yes
Place of Origin Guangdong, China
Brand Name 1king/OEM
Model Number HD-820-DSY

Specifications

HD PTZ room conference camera
20x zoom.1080P
HDMI/DVI/HD-SDI/YUV/CVBS Output
HOV 55.4 degree
Desktop/Tripod installat

Multi-interface HDMI/DVI/HD-SDI/YUV/CVBS 1080p HD room conference camera for video conference room

01) Full HD (1920x1080 30p)
      HD video conference education camera
02) 20 Optical x 12digital zoom
      1/2.8" Exmor CMOS, 3.27 Megapixel
0.5Lux at F1.6 f=4.7-90mm,F1.6-F3.5
      HOV 55.4 degree
03) 355° Pan, 90° Tilt

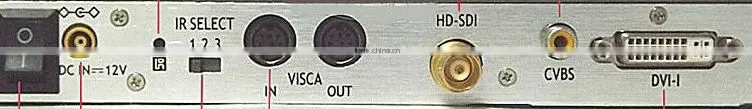

04) HDMI/DVI/HD-SDI/YUV/CVBS optional
05) VISCA IN/Out
06) RS-485/RS-232
07) IR Remote Controller
08) -10 degree C to +60 degree C
09) Desktop/Tripod installation


Model:HD820-DSY

<
Model No.
HD820-DSY



Image Sensor
Sensor
1/2.8" Type Exmor CMOS


Effective Pixels
3.27 Megapixel
Illumination
0.5Lux at F1.6
White Balance
Auto/Manual
Gain Control
Auto
Back-light
compensation
On / Off
E-Shutter
1/1~1/10,000S
S/N Ratio
> 50db
Lens
Focus
f=4.7-90mm F1.6-F3.5
Iris
Auto/Manual


Zoom x
20 Optical x 12 digital Zoom


Lens HOV
55.4°

Video Output
HDMI,DVI,HD-SDI,CVBS,YPbPr

Video Output Model
1080P@30/25,1080i@60/50,720P@60/50

Communication Interface
EIA/RS232C,EIA/RS485C (Bidirectional)
Communication
Control Protocol
VISCA,PELCO-D
Baud Rate
9600/38400bps
Cruise Sequence
4 cruise sequence
Preset Position
64 preset positions
Speed Matching
    Pan/Tlit movement speed depends on camera module zoom in/out
OSD Menu
  Access to OSD Menu and adjust camear module para meters
Image Auto Flip
Support Horizontal/Vertical image flip
Pan Speed
1-200 degree per second
Tilt Speed
1-150 degree per second
Pan Rotation Angle
0~359 degree
Tilt Rotation Angle
±45 degree
Pan Scanning automatically
Support pan scanning automatically
Boundary Scan
0-355 degree (programmable)
Remote Controller
IR wireless control P/T/Z
Power Supply
DC12V±10%, 1.2A
Working Temperature
0-50°C
Environment Humidity
0-95%RH
Size(LxWxH)
250X140X154mm
Weight
1380g



Multi-interface HDMI/DVI/HD-SDI/YUV/CVBS 1080p HD room conference camera for video conference roomMulti-interface HDMI/DVI/HD-SDI/YUV/CVBS 1080p HD room conference camera for video conference room

Multi-interface HDMI/DVI/HD-SDI/YUV/CVBS 1080p HD room conference camera for video conference room


Multi-interface HDMI/DVI/HD-SDI/YUV/CVBS 1080p HD room conference camera for video conference room
