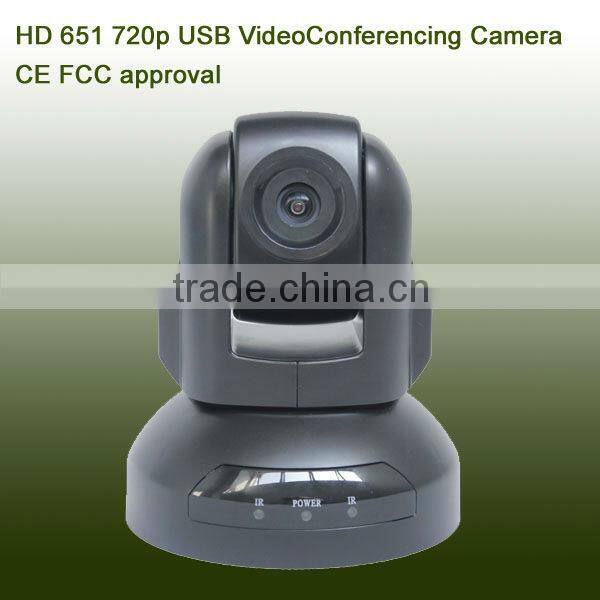

USB based HD 720P skype video conference camera for IP Video Conference Solution

Model No.

HD650-USB

HD651-USB

Image Sensor

Sensor

1/2.5" CMOS
1.3 Mega Pixel

Effective Pixels

1.3 Megapixel

Illumination

5.0Lux @F2.0

White Balance

Auto/Manual

Gain Control

Auto

Back-light
compensation

On / Off

E-Shutter

S/N Ratio

> 50db

Lens

Focus

4mm fixed lens f=4 F=1.6

f=5-15mm F1.6

Iris

Auto/Manual

Zoom

3 optical x 3 digital zoom

Lens HOV

72.5°

19°-41°

Video Output

USB

Video Output Model

720P@30

Communication Interface

EIA/RS232C,EIA/RS485C (Bidirectional)

Communication
Control Protocol

VISCA/PELCO-D

Baud Rate

9600/38400bps

Tour

4 Line

Preset

64

Speed Matching

   Pan/Tlit movement speed depends on camera module zoom in/out

OSD Menu

  Access to OSD Menu and adjust camear module para meters

Image Auto Flip

Support Horizontal/Vertical image flip

Pan Speed

1-280 degree per second

Tilt Speed

1-100 degree per second

Pan Rotation Angle

360° Continuously Pan Movement

Tilt Rotation Angle

Tilt: ±120degree

Auto Pan Scan

Support auto pan scan

Boundary Scan

0-359 degree (programmable)

Remote Controller

IR wireless control P/T/Z

Power Supply

DC12V±10%, 2A

Working Temperature

0-50°C

Environment Humidity

0-95%RH

Size(LxWxH)

124X120X145mm

Weight

800g
