550TVL/700TVL 18x optical zoom USB PTZ Camera For Conference Room
Negotiable
/ Piece
1 Piece(Min.Order)
- 1000 Piece / Pieces per Month
- Shenzhen
- Credit Card
You May Like
-
Best Selling Superior Quality Professional audience sound equipment conference system Deskable Wireless Microphone
-
Xiaomi 2021 New Speaker Audio Video Conference Meeting System AI 120 Wide USB A C Portable Business High Quality Speakers
-
Huawei TE30 All-in-One HD Videoconferencing Endpoint TE30-1080 TE30-1080P-00B TE30-1080P-10B
-
10X ZOOM PTZ Office Conference System School Distance Education 2K live streaming camera Autofocus tracking USB Driver Free
-
Floor-mounted Electrical Plug Socket GX-8 & 13
-
Dual 12-inch Box Line Array Series Speaker
Product Details
| Type: | Video Conference System, Other, Video Conference System, USB PTZ Camera For Conference Room | Function: | Other | Simultaneous Interpretation: | No |
| Place of Origin: | Guangdong, China | Brand Name: | Oneking/OEM | Model Number: | C368-18 |
Product Description
Specifications
USB PTZ Camera For Conference Room1) SN18x/CN 18x Optical zoom
2) S-Video, USB, SD:VBS
3) VISCA/PELCO-D
4) Wall/Ceiling
We are professional manufacturer of Color Video Conference Camera------
550TVL/700TVL 18x optical zoom USB PTZ Camera For Conference Room
USB PTZ Camera For Conference Room
HD Color Video PTZ Caemra
Model No: C368-18
C368 New color video conference camera equipped with color high TVL 18x optical zoom lens (18x optical zoom lens is optional), support USB/AV video output, compatible with VISCA PTZ Protocol; It supports 360 continuously pan movement and come with image auto flip function.
Especially for Video Conference, Telemedicine System, Remote Education, Court and Training Room etc.
Product Description
Features:
- Private camera mould design
- HOV 54.8 degree for wide angle
- 18x optical zoom from 5-90mm at F1.6-F3.0
- 550TVL/700TVL ,SN/oneking camera module
- High speed PTZ Plateform with low noise motor
- Video Output: SD:VBS,S-Video(Sony lens). USB(optional)
Specification:
- Support speed match,OSD Menu,image auto flip,boundary scanning and remote control.
- Support VISCA/PELCO-D protocol and RS232C/RS485
- Support 4 cruise sequence and 64 preset postions.
- Support spped adjustment from 1-200 °/s at Pan and from 1-150°/s at Tilt.
- Support 360 ° pan movement range.
- Support IR wireless remote control P/T/Z
- Support celling mount and desktop Installation.
Specification Sheet
| Camera module | C368 / Sony 18X | C368/ Oneking 18x | |
| Image Sensor | Sensor | SONY FCB-EX48EP 1/4-type EXview HAD CCD | 1/3" SONY Exview HAD CCD II |
| Signal System | PAL/NTSC | PAL/NTSC | |
| Illumination | 1.0Lux/F1.4 | 0.01 Lux | |
| White Balance | Auto/Manual | Auto/Manual | |
| Gain Control | Auto | Auto | |
| Back-light | On /Off | On /Off | |
| compensation | |||
| E-Shutter | 1 - 1/100,000s | 1/50-1/10,000s | |
| Horizontal | 550TVL | 700TVL | |
| Resolution | |||
| S/N Ratio | >50db | >50db | |
| Lens | Focus | f=4.1-73.8 F1.4 -3.0 | f=5-90mm F1.6 -3.0 |
| Iris | Auto/Manual | Auto/Manual | |
| Zoom | 18 Optical x 12 Digital Zoom | 18x optical zoom | |
| Video Output | SD:VBS,S-Video(Sony lens), USB(optional) | ||
| Control Decoder | Built-in decoder | ||
| Communication | EIA/RS422, EIA/RS232(Bidirectional) | ||
| Interface | |||
| PTZ Control Protocol | VISCA, PELCO-P, PELCO-D (optional) | ||
| Baud Rate | 9600/38400bps | ||
| Patrol Lines | 4 Patrol Lines | ||
| Preset Position | 64 Preset Position | ||
| Power-off Protection | Saved scanning or patrol line settings Automatically Before power off | ||
| Speed Matching | Slow down camera Pan/Tilt movement speed while camera zooming in | ||
| OSD Menu | To change parameters of camera or camera module from OSD Menu | ||
| Image Auto Flip | Image Auto Flip | ||
| Pan Speed | 1-200° /S | ||
| Tilt Speed | 1-150°/S | ||
| Pan Rotation Angle | 360° continuously | ||
| Tilt Rotation Angle | Up: 90°, Down: 45° | ||
| Auto Pan Scan | Support auto pan scanning | ||
| Boundary Scan | 0-359° (programmable) | ||
| Remoter Control | IR wireless remote controller P/T/Z | ||
| Power Supply | DC12V±10%, 1.2A | ||
| Working Temperature | 0-50°C | ||
| Environment Humidity | 0-95%RH | ||
| Size(LxWxH) | 250X140X145mm | ||
| Weight | 1380g | ||

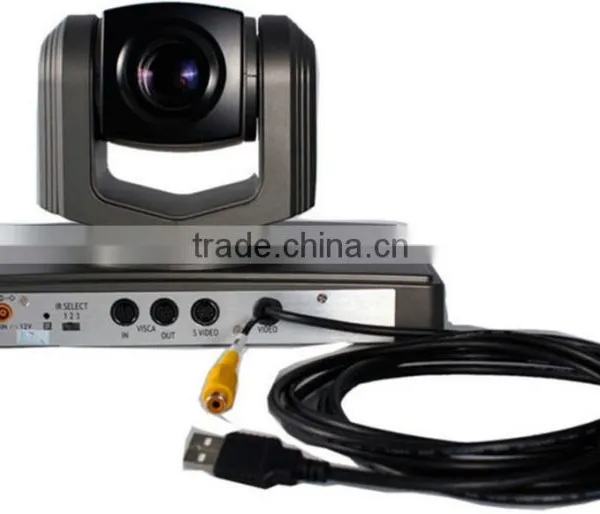

USB PTZ Camera For Conference Room Images:
