10x Optical Zoom Sony CCD Sensor 650TVL 10x USB PTZ Video Conference Camera

Shenzhen Oneking Technologies Co., Ltd.
10x Optical Zoom Sony CCD Sensor 650TVL 10x USB PTZ Video Conference Camera thumbnail-1
10x Optical Zoom Sony CCD Sensor 650TVL 10x USB PTZ Video Conference Camera photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Video Conference System, Other, Video Conference System, 10x USB PTZ Video Conference camera
Simultaneous Interpretation:
No
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Video Conference System, Other, Video Conference System, 10x USB PTZ Video Conference camera
Simultaneous Interpretation No
Place of Origin Guangdong, China
Brand Name Oneking/OEM
Model Number C360-USB-650TVL

Specifications

10x USB PTZ Video Conference camera
a) 10X optical zoom
b) S-Video,VISCA Protocol RS-485/422
c) Wall/ceilling/tripod

We are proffessional manufacturer of Color Video Conference Camera----

10x Optical Zoom Sony CCD Sensor  650TVL 10x USB PTZ Video Conference camera



10x USB PTZ Video Conference camera



 Model no.: C-360-USB

10x optical zoom, 650TVL

10x Optical Zoom Sony CCD Sensor 650TVL 10x USB PTZ Video Conference camera



C-360-USB Color Video PTZ Camera which adopted 10x optical zoom with high performance 650TVL Quality, it equipped with USB video card and provided USB, AV video output both, ideally suited for Web video conferencing system, remote education system etc.



Product Description
Features:
  • 10x Optical Oneking Zoom 650TVL
  • Oneking/Samsung/Sony Brands
  •  Built in USB Video Card- CD Driver in the package-
  • USB/AV Video output- Pan >0~280°/s Tilt >0~100°/s
  • 360° continuously Pan rotation

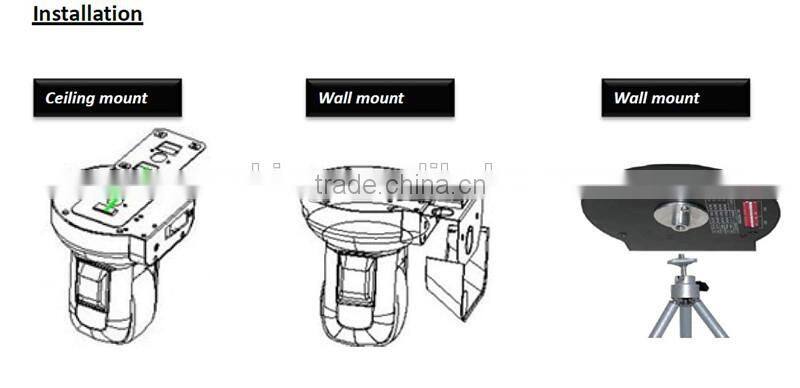

  •  Provided wall & ceiling mounting

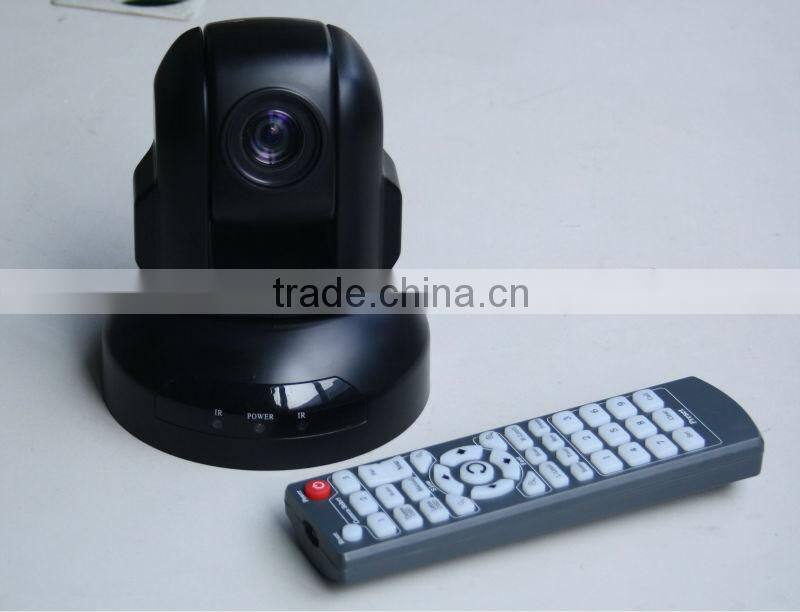

  • IR Remote controller
  • Support S-Video RS-232 Visca Protocol

Specification Sheet:

Model   C-360-USB
 Image Sensor         CCD1/4” SONY CCD
  Minimum Scene Illumination  0.01Lux
  White Balance  AUTO/Manual
  Gain Control  Auto
  Back-light Compensation  On/Off
  Electronic shutter  1/50-1/10,000s
  Horizontal resolution  650 TVL
  S/N Ratio  > 50dB
  Lens     Focus  AUTO
  Iris  AUTO/Manual
  Zoom   10 Optical Zoom
  f=3.8-38 mm,F=1.8
  Video Output     VIDEO VBS: 1.0Vpp at 75ohm
  USB interface
  Communication     EIA/RS-422
  EIA/RS-232 (Bidirectional)
   Baud Rate  4800/9600 bps
   Patrol tours 4
   Pattern tours4
   Preset 64
   Privacy Mask Zone 4
   Power On Active  Auto pan scan or Patrol (Programmable)
   Speed Matching Function  Support
   OSD Menu   Support
   Image Auto Flip   Support
   Pan Speed  0-280 degrees
   Tilt Speed  0-100 degrees
   Pan rotation angle  360 degrees continuously
   Tilt rotation angle  240 degrees
   Auto Pan Scan  Support
   Boundary Scan  0-359 degrees (programmable)
Remoter ControlRF Wireless remote control P/T/Z (10M)
PowerDC 12V+-10%;1.2A
Temperature and humidity0o-60o C,0-95% RH (non-condensation)

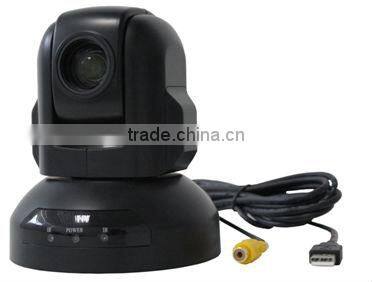

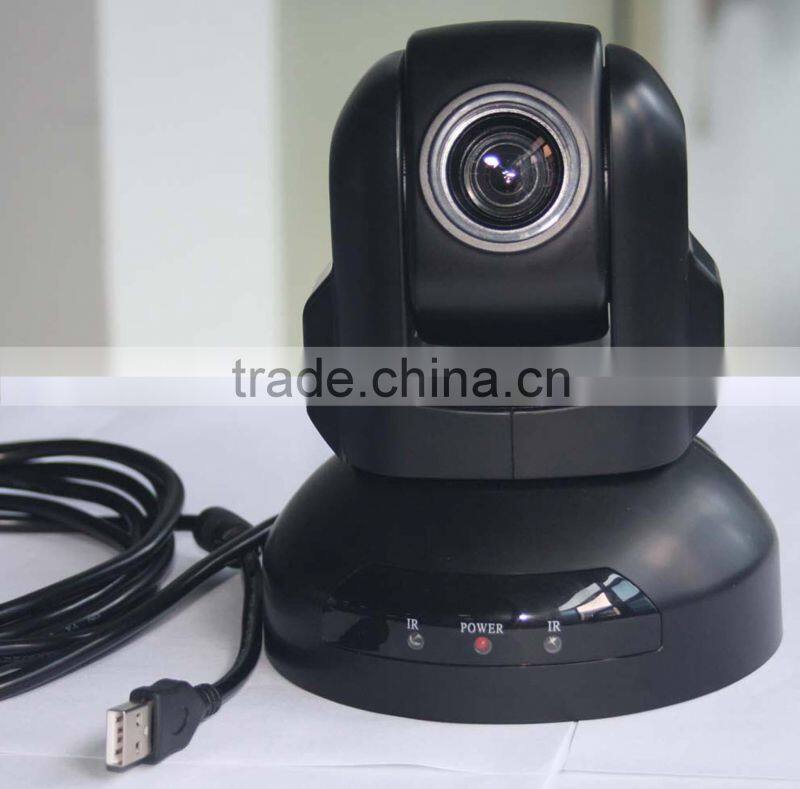

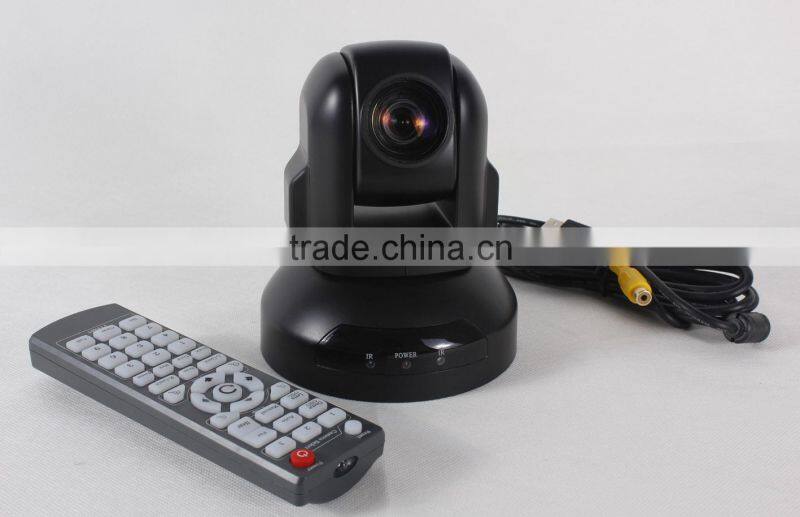

10x USB PTZ Video Conference camera Images:

10x Optical Zoom Sony CCD Sensor 650TVL 10x USB PTZ Video Conference camera10x Optical Zoom Sony CCD Sensor 650TVL 10x USB PTZ Video Conference camera10x Optical Zoom Sony CCD Sensor 650TVL 10x USB PTZ Video Conference camera10x Optical Zoom Sony CCD Sensor 650TVL 10x USB PTZ Video Conference camera10x Optical Zoom Sony CCD Sensor 650TVL 10x USB PTZ Video Conference camera10x Optical Zoom Sony CCD Sensor 650TVL 10x USB PTZ Video Conference camera

Packaging & Shipping

1. Color box with PE Foam, Strong Carton

2. T/T, Western Union, Paypal
