Factory Price Drinking Bottle Blowing Machine With ce

Name: Factory Price Drinking Bottle Blowing Machine With ce
Brand: TONGDA
Availability: InStock

FOB Price

US$ 30,000 - 70,000 / Set

1 Set(Min. Order)

Port shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Bottle
Plastic Processed	PE	Blow Moulding Type	Extrusion Blow Moulding
Automatic	Yes	Place of Origin	Jiangsu, China
Brand Name	TONGDA	Model Number	HTII-5L
Voltage	380V/50HZ	Power(W)	7.5kw
Dimension(LWH)	3.432.32.65	Weight	5.5ton
Certification	ISO9001	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Factory price drinking bottle blowing machine with CE

HTII-5L

Technical Parameters

Model		HTII-5L
Max. Product Volume	(L)	5L
Dry cycle	(pc/h)	700*2
Screw Diameter	(mm)	70
Screw L/D ratio	(L/D)	25
Screw drive power	(KW)	22
Screw heating capacity	(KW)	6.2~8.2
No. of heating zone	(ZONE)	3
Max. Output of HDPE	(Kg/hr)	70
Oil pump drive power	(KW)	7.5
Clamping force	(KN)	60
Platen distance	(mm)	148~508
Mold moving stroke	(mm)	400
Max. Size of Mold(W*H)	(mm)	370*390
Max. Die diameter	(mm)	145
Die heat capacity	(KW)	2.5
No. of heating zone	(ZONE)	3
Central distance of Double head	(mm)	160,180
Blowing pressure	(Mpa)	0.6
Air volume	(M3/MIN)	0.4
Cooling water pressure	(Mpa)	0.2~0.3
Water consumption	(L/MIN)	60
Size of machine ( LWH)	(m)	3.432.32.65
Weight of machine	(TON)	5.5

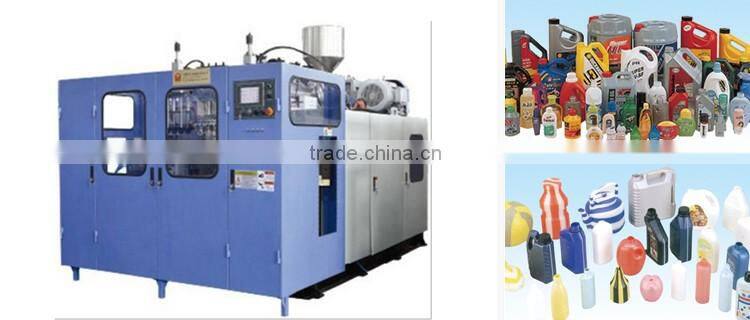

drinking bottle blowing machine

Extruson blow molding machine suppliers of main parts:

a) Hydraulic Parts

Name	Supplier
Oil Pump	PARKER or SUNNY, America
Valve	YUKEN or SUNNY
Hose, Joint	PARKER SIR
Sealer	Top DZ Europe

b) Electrical Parts

Name	Supplier
Microcomputer Control System	MITSUBISHI PLC, Japan
Touch Screen	HITECH color screen, Taiwan
Temperature Controller	MITSUBISHI, Japan
Conductor	SCHNEIDER
Air Switch	SCHNEIDER
Motor	SIMENS BEIDE Asynchronous Motor
Power Resource	MEAN WELL, Taiwan
Inverter	MITSUBISHI

c) Pneumatic Parts

Name	Supplier
Solenoid Valve	FESTO, Germany
Cylinder	FESTO, Germany

Certifications

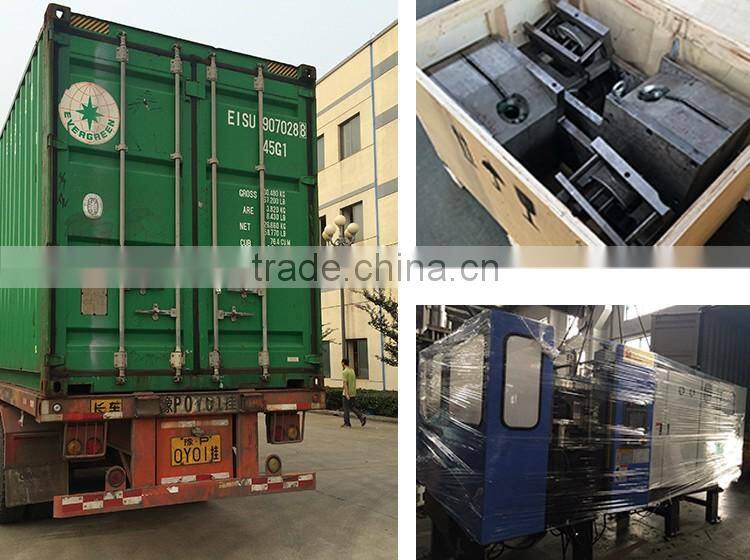

Packaging & Shipping

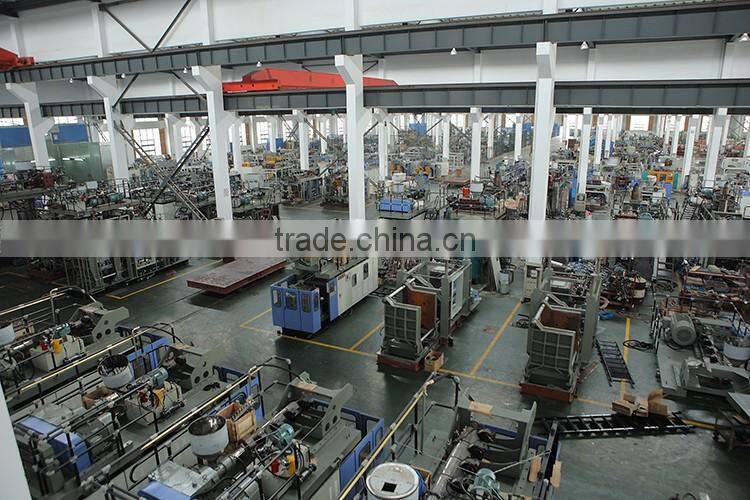

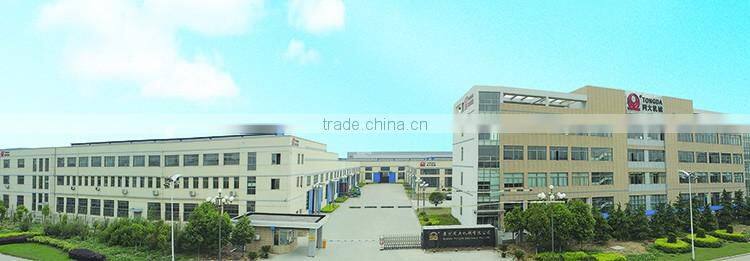

Company Information

Suzhou Tongda Mould Co., LTD is located in zhangjiagang city TangQiao economic development zone and the traffic is developed.

The company fusion technology, Western Europe professional design and production, sales three categories and 23 kinds of series and one hundred and eighteen kinds of specifications and types of automatic bottle blowing machines, blow molding blow molding machines and the company is in jiangsu province beverage, plastic machinery enterprise one of the export base.

The company product widely sales Britain, Australia, Brazil and 55 countries and the area, deeply trusted by customers domestic and abroad.

drinking bottle blowing machine

Our Services

1> The machine will be tested and checked at our workshop before delivery.

2>After one year, we will supply accessories are provided only one the cost price.

3>Free production technology and process configuration.

4>Installation: Experts’ team to buyer’s country after confirmation that the goods arrived in site and civil works completed get ready for installation. Funds for trip need to be payed by client and extra salary $60/day during the engineer’s journey.

5>Warranty: One year from the date of Installation or acceptance of the Plant whichever comes first

6>We will reply you within 24 hours
