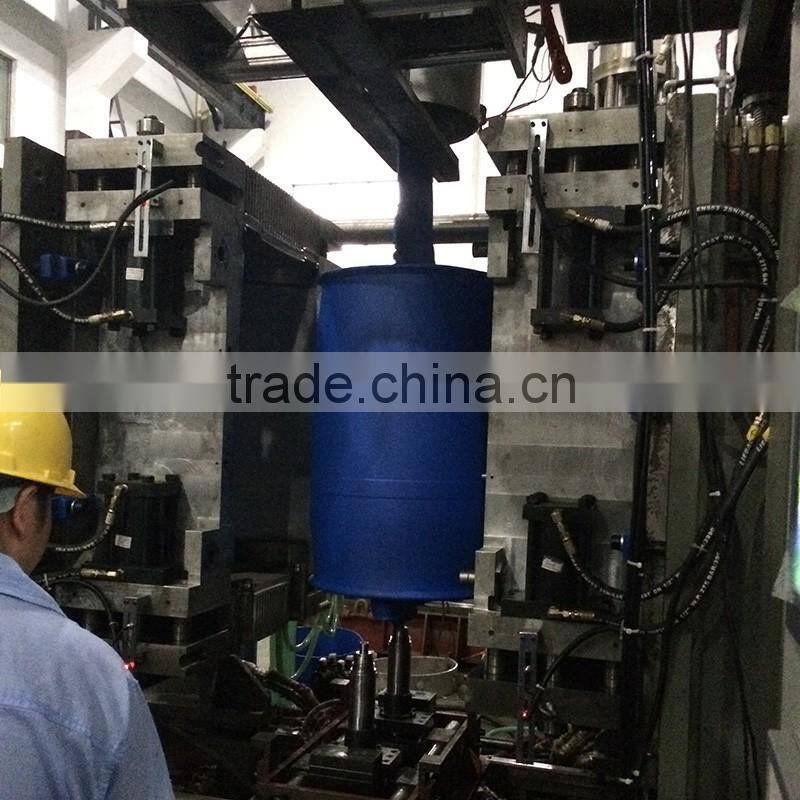

CE Certified 200 Litre Plastic Drum Blow Molding Machine With Long Service Life

Name: CE Certified 200 Litre Plastic Drum Blow Molding Machine With Long Service Life
Brand: TONGDA
Availability: InStock

FOB Price

US$ 100,000 - 280,000 / Set

1 Set(Min. Order)

Port SHANGHAI
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Bottle
Plastic Processed	PE	Blow Moulding Type	Extrusion Blow Moulding
Automatic	Yes	Place of Origin	Jiangsu, China
Brand Name	TONGDA	Model Number	TDB-250A
Voltage	380V/50HZ	Power(W)	140KW
Dimension(LWH)	7.82.95.4	Weight	35ton
Certification	ISO9001	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Product Application

Blow molding machine is suitable for producing plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar,drum ,Tool kit , plastic model etc.

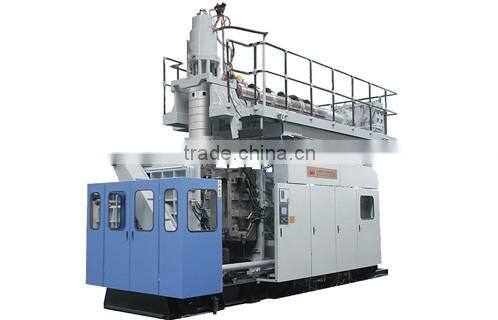

Blow molding machine
Technical specification
Model		TDB-250A
Station		Single
Max. Product Volume	(L)	250L
Dry cycle	(pc/h)	300
Screw Diameter	(mm)	120
Screw L/D ratio	(L/D)	32
Screw drive power	(KW)	132
Max.Output of HDPE	(Kg/hr)	320~380
Oil pump drive power	(KW)	22
Clamping force	(KN)	770
Mold stroke (Platen distance)	(mm)	800~1800
Max. Size of Mold(W*H)	(mm)	1200~1720
Capacity of the diehead	(L)	22
Die heating power	(KW)	15
No. of heating zone	(ZONE)	6
Blowing pressure	(Mpa)	1.0
Air volume	(M3/MIN)	2.0
Cooling water pressure	(Mpa)	0.3
Water consumption	(L/MIN)	300
Size of machine ( LWH)	(m)	7.82.95.4
Weight of machine	(TON)	35

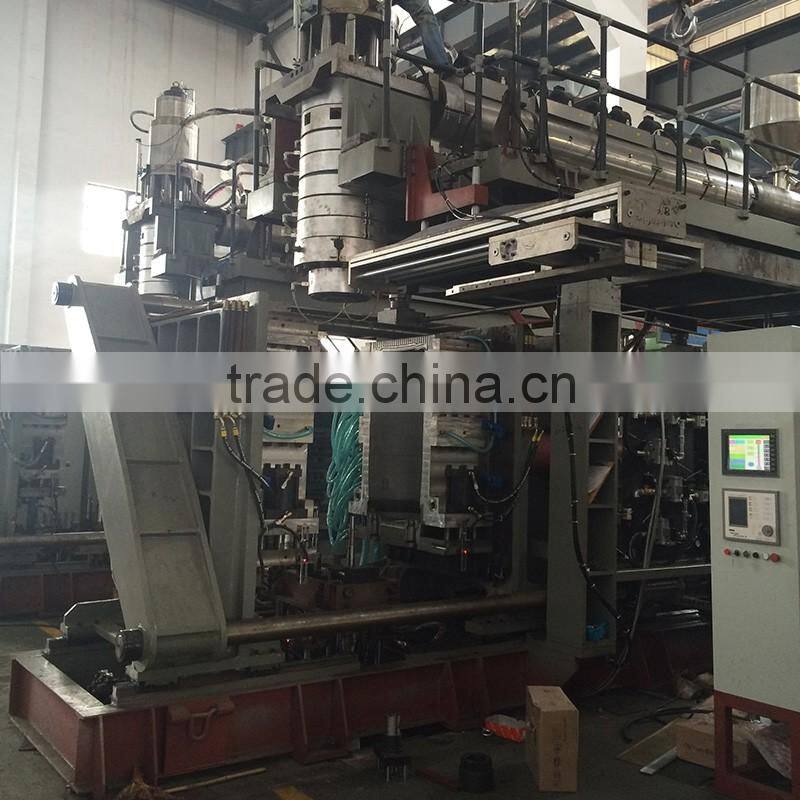

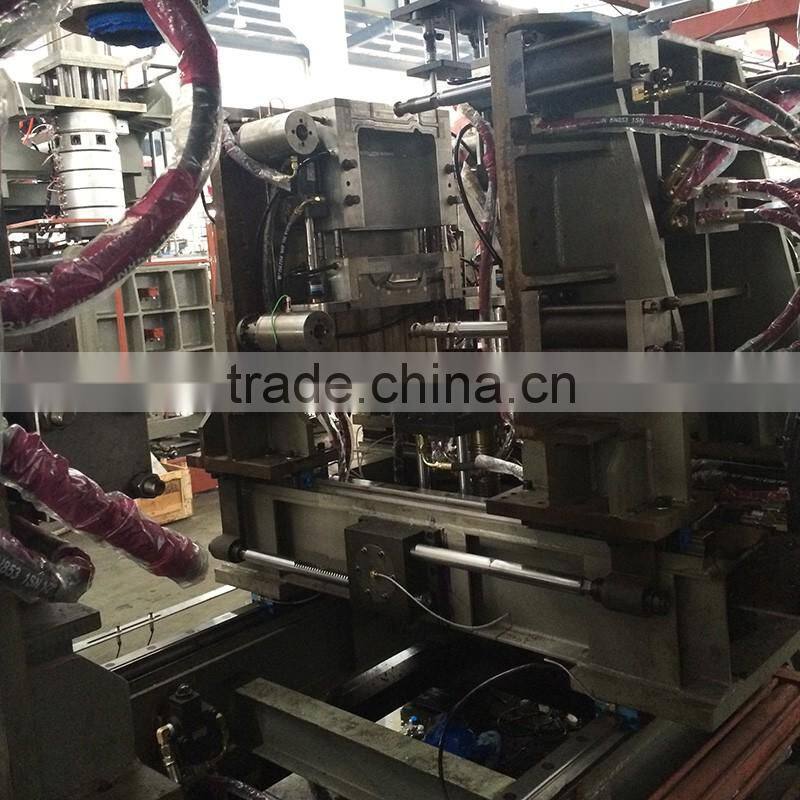

Detailed Images

Blow molding machine
Extruson blow molding machine suppliers of main parts:
a) Hydraulic Parts	Name	Supplier
a) Hydraulic Parts	Oil Pump	PARKER or SUNNY, America
	Valve	YUKEN or SUNNY
	Hose, Joint	PARKER SIR
	Sealer	Top DZ Europe
b) Electrical Parts	Microcomputer Control System	MITSUBISHI PLC, Japan
	Touch Screen	HITECH color screen, Taiwan
	Temperature Controller	MITSUBISHI, Japan
	Conductor	SCHNEIDER
	Air Switch	SCHNEIDER
	Motor	SIMENS BEIDE Asynchronous Motor
	Power Resource	MEAN WELL, Taiwan
	Inverter	MITSUBISHI
c) Pneumatic Parts	Solenoid Valve	FESTO, Germany
c) Pneumatic Parts	Cylinder	FESTO, Germany

Main Features

1) Simple structure in linear type ,easy in installation .
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution

Packing & Delivery

Our Service

1> The machine will be tested and checked at our workshop before delivery.

2>After one year, we will supply accessories are provided only one the cost price.

3>Free production technology and process configuration.

4>Installation: Experts’ team to buyer’s country after confirmation that the goods arrived in site and civil works completed get ready for installation. Funds for trip need to be payed by client and extra salary $60/day during the engineer’s journey.

5>Warranty: One year from the date of Installation or acceptance of the Plant whichever comes first

6>We will reply you within 24 hours

Certifications

Our Company

Suzhou Tongda Mould Co., LTD is located in zhangjiagang city TangQiao economic development zone and the traffic is developed.

The company fusion technology, Western Europe professional design and production, sales three categories and 23 kinds of series and one hundred and eighteen kinds of specifications and types of automatic bottle blowing machines, blow molding blow molding machines and the company is in jiangsu province beverage, plastic machinery enterprise one of the export base.

The company product widely sales Britain, Australia, Brazil and 55 countries and the area, deeply trusted by customers domestic and abroad.
