The F40 is a full automatic injection molding equipment, suitable for processing PP, PS, PE, SAN, PMMA, PC, PETG, PEN and other thermoplastic, widely used in pharmaceutical, health care products, food and beverage, cosmetics, etc..One Mold with Multi-caivity for automatic continuous production technology, using three horizontal station rotary device, hot runner system and multi-stage injection molding system,injection molding, blow molding, demolding three position and action to ensure equipment of high efficiency and energy saving operation, ensure smooth product bottle, the bottleneck of inner and outer diameter and thread high precision, no waste is the standard equipment of modern enterprise environment-friendly production.
| Name | Unit | FG40 | FG60 | FG80 | FG100 |
| Screw diameter | mm | 40 | 45 | 50/55 | 60 |
| L/D Ratio | 22:1 | 22:1 | 22:1 | 22:1 | |
| Injection Capacity | 9 | 176 | 260 | 314 | 415 |
| Heating power | KW | 7.5 | 10 | 10.8 | 12 |
| Heating section | 3+N | 3+N | 4+N | 4+N | |
| Main motor power | KW | 11 | 18.5 | 22 | 30 |
| Total power | KW | 20 | 30 | 40 | 45 |
| Operating power | % | 52-70 | 52-70 | 52-70 | 52-70 |
| System pressure | Map | 14 | 14 | 14 | 14 |
| Compressed air pressure | MPa | 0.7-1.2 | 0.7-1.2 | 0.7-1.2 | 0.7-1.2 |
| Cooling water pressure | MPa | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 |
| Product maximum diameter | mm | 120 | 120 | 120 | 120 |
| Product maximum length | mm | 200 | 220 | 220 | 220 |
| Product volume | ml | 3-800 | 3-800 | 3-1000 | 3-1000 |
| Dimensions | M | 3*1.3*1.7 | 3.5*1.4*1.8 | 4*1.6*2 | 4.5*1.8*2 |
| Equipment weight | Ton | 3.5 | 5 | 8 | 10 |
|

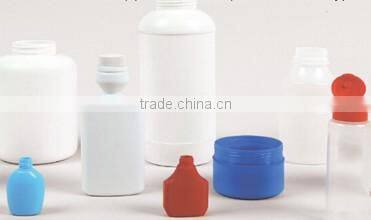

$KEYWORD$ Bottle Size 1.Volume:5ML-1000ML 2.Neck Dia:10-45MM 3.Height:35-200MM 4.Body Dia:45-90MM |
Suzhou Tongda Mould Co., LTD is located in zhangjiagang city TangQiao economic development zone and the traffic is developed.
The company fusion technology, Western Europe professional design and production, sales three categories and 23 kinds of series and one hundred and eighteen kinds of specifications and types of automatic bottle blowing machines, blow molding blow molding machines and the company is in jiangsu province beverage, plastic machinery enterprise one of the export base.
The company product widely sales Britain, Australia, Brazil and 55 countries and the area, deeply trusted by customers domestic and abroad.
1> The machine will be tested and checked at our workshop before delivery.
2>After one year, we will supply accessories are provided only one the cost price.
3>Free production technology and process configuration.
4>Installation: Experts’ team to buyer’s country after confirmation that the goods arrived in site and civil works completed get ready for installation. Funds for trip need to be payed by client and extra salary $60/day during the engineer’s journey.
5>Warranty: One year from the date of Installation or acceptance of the Plant whichever comes first
