Plastic Extruders for Windows and Doors
- 100 Set / Sets per Month
- Shanghai/Ningbo
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Anhui, China | Brand Name: | TRINITY, TRINITY | After-sales Service Provided: | Engineers available to service machinery overseas |
Model Number: | TRINITY92-31/P |
Product Description

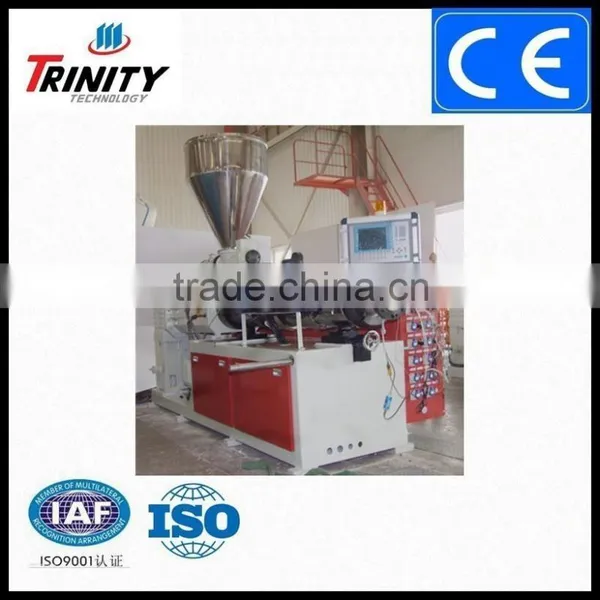

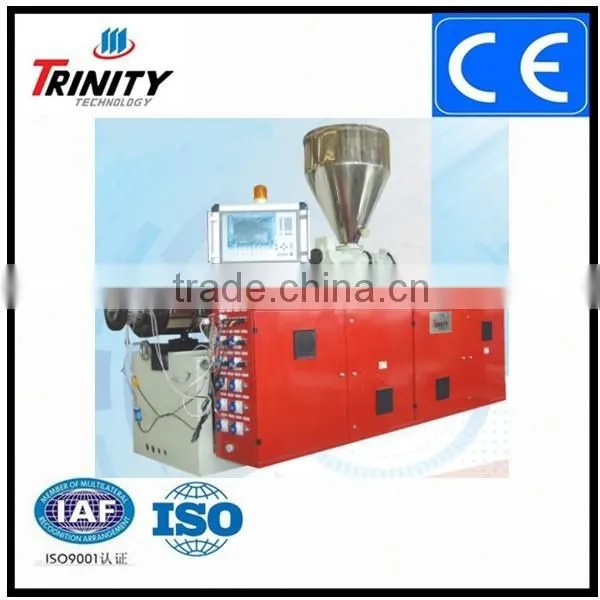

Plastic Extruders for Windows and Doors
Type | TRINITY 75-31/P | TRINITY 92-31/P | TRINITY 114-26/P |
Srew rotate speed(rpm) | 28 | 24 | 19 |
Screw L/D | 31 | 31 | 26 |
Motor power(Kw) | 30 | 45 | 65 |
Capacity(kg/h) | 80/240 | 130/350 | 230/460 |
Extrusion center height(mm) | 1100 | 1100 | 1100 |
L*W*H(mm) | 4400*1400*2500 | 5100*1400*2600 | 5500*1400*2600 |
Torque(Nm) | 9600 | 16100 | 3500 |
Net weight(kg) | 3600 | 6400 | 6400 |
Type | TRINITY 45/100 | TRINITY 55/110 | TRINITY 65/132 | TRINITY80/156 |
Srew rotate speed(rpm) | 35 | 35 | 35 | 35 |
Motor power(Kw) | 15 | 22 | 37 | 55 |
Capacity(kg/h) | 30/80 | 50/130 | 70/180 | 100/280 |
Extrusion center height(mm) | 1050 | 1050 | 1050 | 1050 |
Net weight(kg) | 5500 | 5500 | 5500 | 5500 |
Based on many years of research experience, Zonfa Trinity successfully made the new type extruder with high output , which using the European highest level technology, can guarantee customers' requirement on high quality extrusion.

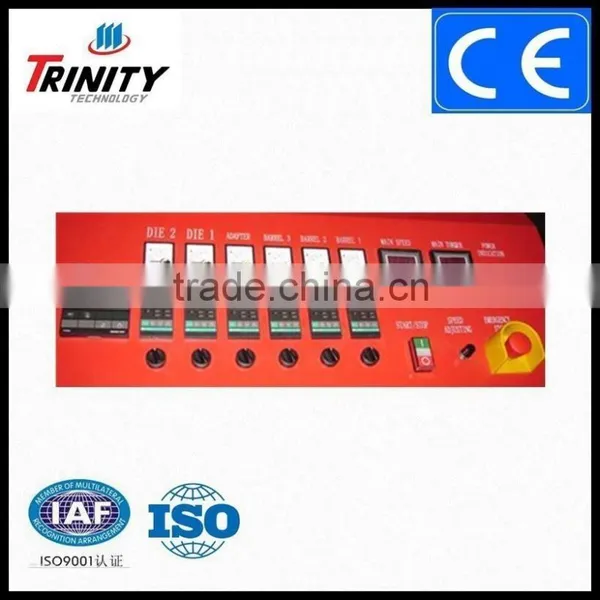

This machine is using B&R' s controlling system, which contains flexible architecture, more open operation system and better conmunication. All of these advantages guarantee the stability of this instrument, and makes the user more convinient on maintenance.

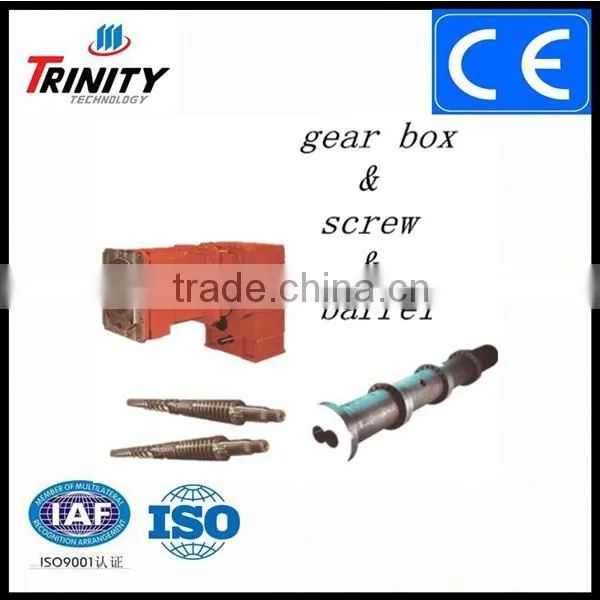

In collabration with Nordson Xaloy, Trinity develops a new screw with 31D in the effective length. With molybdenum-plating treatment on the surface of all screws, they have the highest wear resistance. Adopting proven core temperature controlling way of the intracool self-adjusting and non-maintenance, it provides the best processing temperature control box with wide range for inspection. Under the high yield and negative pressure, we can get stanble and qualified products.

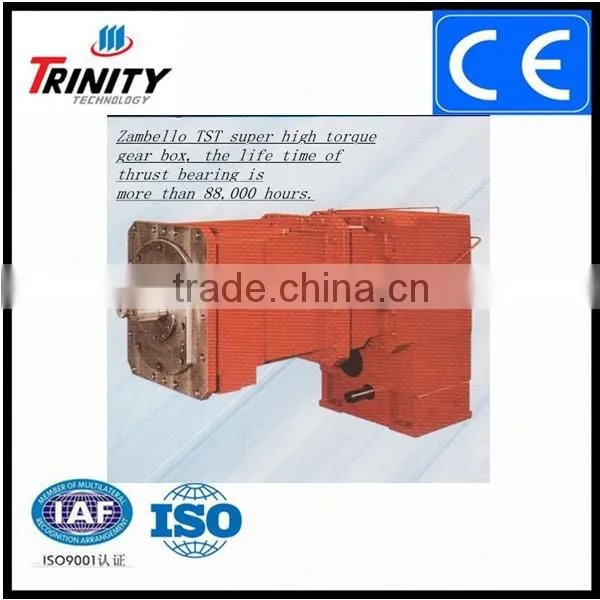

Trinity adopts ZAMBELLO TST seriers of ultrahigh torque gearbox, with the advantages of high torque, low noice, low manufaction and long service life. It will be the best choice of seeking for high level products.

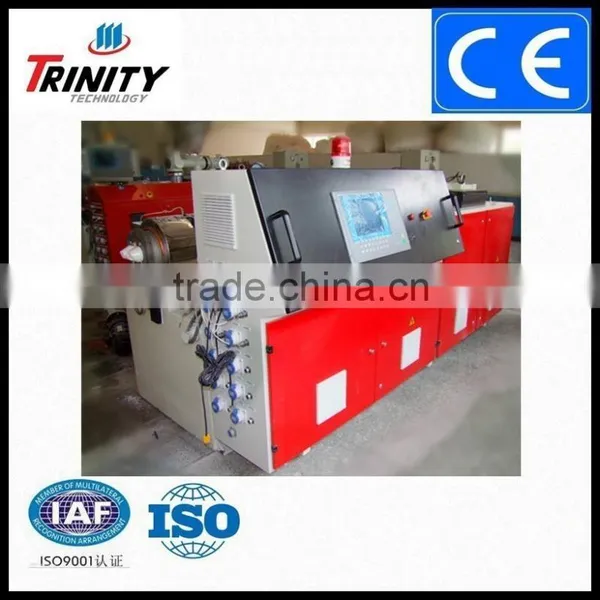

According to cutomers' specific requirements, we can provide systemic design plan that are easy to operate such as different extrusion height and electric cabinet installation direction.
We choose vacuum package and wood case, or we'll do according to your requirement.
Tongling Zonfa Trinity Technology Co., Ltd entered extrusion field since 1985 and developed the first extrusion PVC tooling in China. Now, we have 450 staff and have the annual manufacture capability of 1500sets of tooling and 100 sets of extrusion line, all of which are successfully supplied to more than 600 customers in 50 countries.
We also have drafted and complied “Plastic profile extrusion tooling” industry national standard JB/T8744-2008.
As a competitive manufacturer of extrusion tooling and equipment, we will continue to provide excellent products with advantaged technology, perfect management and rich experience.
Zonfa Trinity after-sales team will promote the brand value.
Zonfa Trinity owns 80 qualified engineers. We can provide suitable solutions for all clients, guarantee smooth production and create value to customers.
After-sales Service Provided: Engineers available to service machinery overseas.
If you are interested in our moulds, please feel free to contact us and you show us your sample picture or drawings.
We will try our best to quote the competitive price for you .
We also warmly welcome your visit.
