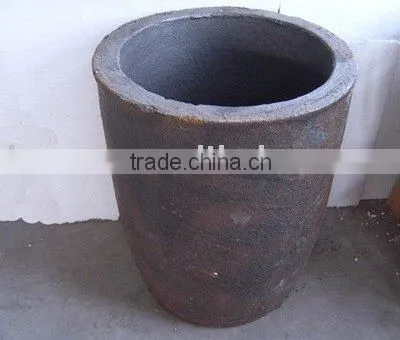

High Pure Graphite Crucible Melting Al Cu Sn Zn and Most of the Metal

High Pure Graphite Crucible Melting Al Cu Sn Zn and Most of the Metal thumbnail-1
High Pure Graphite Crucible Melting Al Cu Sn Zn and Most of the Metal photo-1
US$ 1 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
High Strength
Place of Origin:
Shanghai, China
Brand Name:
kessen, kessen
Contact Supplier Request Quote Chat Now
Shanghai Kessen Ceramics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type High Strength
Place of Origin Shanghai, China
Brand Name kessen, kessen
Model Number ALL KIND

Specifications

graphite crucible is
ideal for the melting
of aluminum metal and
copper metal
and so on.

graphite crucible can withstand the high temperature up to 1650deg,and has good resistance to chemical erosions and thermal shock.

 Property:

C%:50

Al2O3% :45

SiO2%:5

Softening point:1700

Catalogue Number  Approx Capacity(kg)  Top Dia  Bottom Dia  Height
KS-G-1  1 in  mm  in  mm  in  mm
2.75 70 1.96 50 3.14 80
KS-G-2 2 in  mm  in  mm  in  mm
3.14 80 2.16 55 3.74 95
KS-G-4 4 in  mm  in  mm  in  mm
4.33 110 3.14 80 5.11 130
KS-G-6 6 in  mm  in  mm  in  mm
4.72 120 3.26 83 5.9 150
KS-G-8 8 in  mm  in  mm  in  mm
5.51 140 3.7 94 6.69 170
KS-G-10 10 in  mm  in  mm  in  mm
6.29 160 4.33 110 7.08 180
KS-G-12 12 in  mm  in  mm  in  mm
7.08 180 4.52 115 9.44 240
KS-G-16 16 in  mm  in  mm  in  mm
8.26 210 5.51 140 10.23 260
KS-G-20 20 in  mm  in  mm  in  mm
8.46 215 6.29 160 10.23 260
KS-G-25 25 in  mm  in  mm  in  mm
8.26 210 5.51 140 10.23 260
KS-G-30 30 in  mm  in  mm  in  mm
8.46 215 6.29 160 10.23 260
KS-G-35 35 in  mm  in  mm  in  mm
9.05 230 6.69 170 10.63 270
KS-G-40 40 in  mm  in  mm  in  mm
9.84 250 7.08 180 11.41 290
KS-G-50 50 in  mm  in  mm  in  mm
10.43 265 7.28 185 11.81 300
KS-G-60 60 in  mm  in  mm  in  mm
10.63 270 7.67 195 13.18 335
KS-G-70 70 in  mm  in  mm  in  mm
11.61 295 7.87 200 13.78 350
KS-G-80 80 in  mm  in  mm  in  mm
11.61 295 8.07 205 14.56 370
KS-G-100 100 in  mm  in  mm  in  mm
12.99 330 8.66 220 15.74 400
KS-G-120 120 in  mm  in  mm  in  mm
13.58 345 9.64 245 18.11 460
KS-G-150 150 in  mm  in  mm  in  mm
15.15 385 10.63 270 20.47 520
KS-G-200 200 in  mm  in  mm  in  mm
16.14 410 11.22 285 22.04 560
KS-G-250 250 in  mm  in  mm  in  mm
17.32 440 11.22 285 23.22 590
KS-G-300 300 in  mm  in  mm  in  mm
18.11 460 12.2 310 22.83 580
KS-G-350 350 in  mm  in  mm  in  mm
18.5 470 12.2 310 25.59 650
KS-G-400 400 in  mm  in  mm  in  mm
20.47 520 13.78 350 25.19 640
KS-G-500 500 in  mm  in  mm  in  mm
20.66 525 13.78 350 27.55 700
KS-G-600 600 in  mm  in  mm  in  mm
22.44 570 14.17 360 29.92 760
KS-G-800 800 in  mm  in  mm  in  mm
22.83 580 14.17 360 31.49 800
KS-G-1000 1000 in  mm  in  mm  in  mm
25.19 640 17.71 450 32.67 830

 (  )
