graphite crusible
USD $10 - $500
/ Piece
1 Piece(Min.Order)
- 5000000 Piece / Pieces per Month
- Shanghai
- T/T
You May Like
Product Details
Type: | High Strength | Application: | melting | Height: | any size |
Composition: | High Pure | Top Diameter: | any size | Bottom Diameter: | any size |
Place of Origin: | Shanghai, China | Brand Name: | kessen | Model Number: | ks-g-c |
Product Description
Specifications

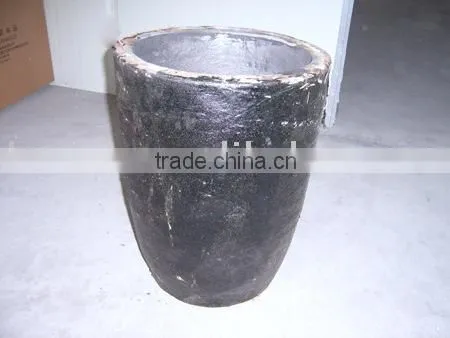

graphite crucible is idealfor the melting of aluminun metal
and copper metal.Our graphite
crucible have
excellent therm
Graphite crucible soda is low ,low iron ,heat and fast ,high strength ,oxidation resistance ,thermal shock resistance ,corrosion resistance ,high density
property:
C% ≥38
AL2O3% ≥45
softening point :1630
apparent porosity (%)≤35
Catalogue Number | Approx Capacity(kg) | Top Dia | Bottom Dia | Height | |||
KS-G-1 | 1 | in | mm | in | mm | in | mm |
2.75 | 70 | 1.96 | 50 | 3.14 | 80 | ||
KS-G-2 | 2 | in | mm | in | mm | in | mm |
3.14 | 80 | 2.16 | 55 | 3.74 | 95 | ||
KS-G-4 | 4 | in | mm | in | mm | in | mm |
4.33 | 110 | 3.14 | 80 | 5.11 | 130 | ||
KS-G-6 | 6 | in | mm | in | mm | in | mm |
4.72 | 120 | 3.26 | 83 | 5.9 | 150 | ||
KS-G-8 | 8 | in | mm | in | mm | in | mm |
5.51 | 140 | 3.7 | 94 | 6.69 | 170 | ||
KS-G-10 | 10 | in | mm | in | mm | in | mm |
6.29 | 160 | 4.33 | 110 | 7.08 | 180 | ||
KS-G-12 | 12 | in | mm | in | mm | in | mm |
7.08 | 180 | 4.52 | 115 | 9.44 | 240 | ||
KS-G-16 | 16 | in | mm | in | mm | in | mm |
8.26 | 210 | 5.51 | 140 | 10.23 | 260 | ||
KS-G-20 | 20 | in | mm | in | mm | in | mm |
8.46 | 215 | 6.29 | 160 | 10.23 | 260 | ||
KS-G-25 | 25 | in | mm | in | mm | in | mm |
8.26 | 210 | 5.51 | 140 | 10.23 | 260 | ||
KS-G-30 | 30 | in | mm | in | mm | in | mm |
8.46 | 215 | 6.29 | 160 | 10.23 | 260 | ||
KS-G-35 | 35 | in | mm | in | mm | in | mm |
9.05 | 230 | 6.69 | 170 | 10.63 | 270 | ||
KS-G-40 | 40 | in | mm | in | mm | in | mm |
9.84 | 250 | 7.08 | 180 | 11.41 | 290 | ||
KS-G-50 | 50 | in | mm | in | mm | in | mm |
10.43 | 265 | 7.28 | 185 | 11.81 | 300 |
