Specifications

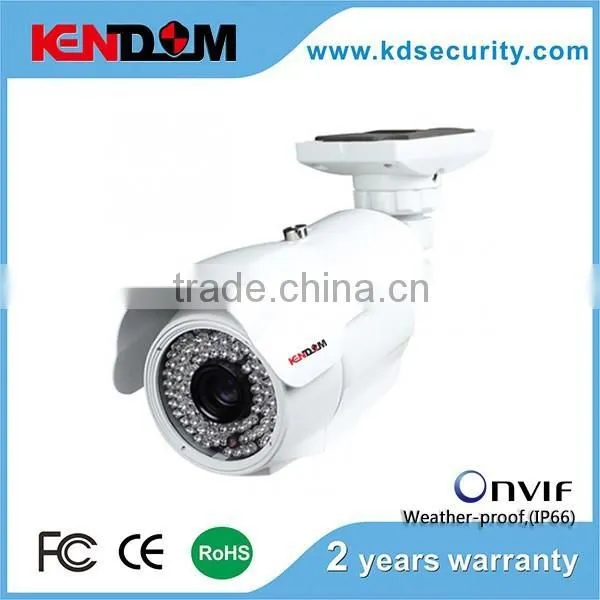

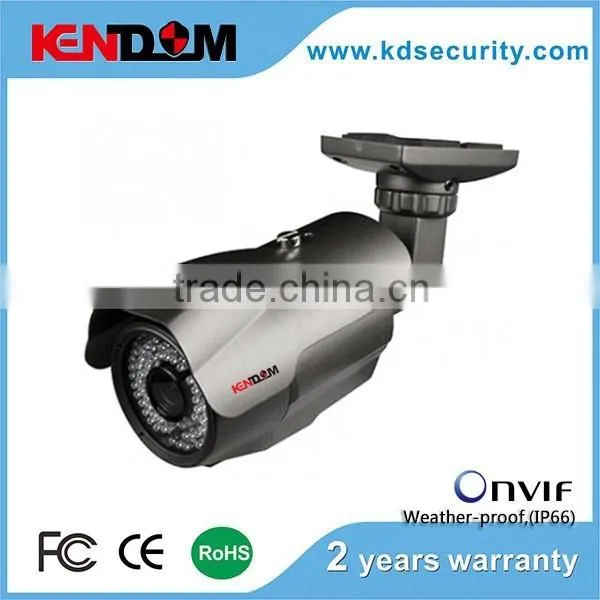

WDR IR Bullet Camera, 42pcs IR leds, 30-40M IR range, 2.8-12mm 2MG Vari-focal lens
KD-IW8847MV
WDR IR Bullet Camera, 42pcs IR leds, 30-40M IR range, 2.8-12mm 2MG Vari-focal lens
Product Features:
1) Sensor: 1/3” SONY CCD,
2) Resolution: Optical WDR 700TVL,
3) IR Leds: 42pcs of 5mm IR LEDs,
4) IR Range: 30-40M IR Range,
5) Lens: 2.8-12mm Vari-focal lens (2.0 Megapixel),
6) OSD menu, 3D DNR, Smart IR
7) IP range:IP66, high reliability
8) Material: Aluminum alloy casing
Application Places:
Apply to the place which need the see clearly video in indoor and outdoor /dark and bright place at the same time.
Model |
KD- IW8847MV |
Type |
WDR IR Bullet Camera |
Horizontal Resolution |
Optical WDR 700TVL |
Effective Pixels (HxV) |
PAL:976×582 NTSC: 976x494 |
Signal System |
PAL / NTSC |
Image Sensor |
1/3"SONY 662/663 CCD |
Mini Illumination |
0.02lux(IR on) / 0.00lux(IR off) |
Lens |
2.8-12mm Vari-focal lens (2.0 Megapixel) |
IR LEDs |
5X42PCS |
Night Vision |
30-40M |
OSD |
OSD |
WDR |
Optical WDR |
DNR |
3D-DNR |
AES |
PAL=1/50 ~1/100,000sec;NTSC=1/60 ~1/100,000sec |
S/N Ratio |
> 48dB(Auto Gain Off) |
BLC |
On/Off |
AGC |
Auto/Manual/Off |
White Balance |
ATW/Manual/Auto |
Video Output |
1.0V P-P,75Ω |
Operating Temperature |
-10 ~ 50℃(relative humidity: max95%) |
Power Voltage |
DC12V±10% |
IP range |
IP66 |
Material |
Aluminum alloy |
Dimension |
270(L) x150(W) x97(H)mm |
Weight |
1000g |
