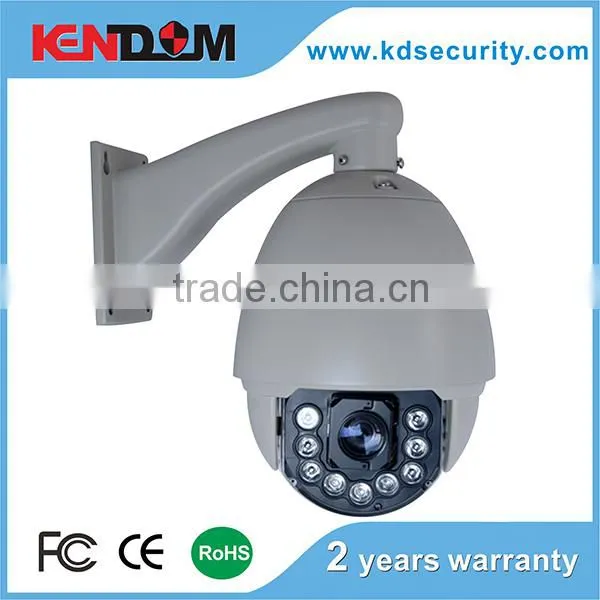

Kendom Analog 36X Zoom Module High speed dome camera PTZ angle horizontal 360 degree vertical 90 degree cctv camera
Product Features:
1) 2.0 / 1.3 Megapixel full real time optional
2) Plug and play technology(P2P)
3) H.264 video encoding, Dual Stream Output
4) Support ONVIF agreement
5) Offer free CMS platform
6) Lens:22X optical zoom module(4.5-97.5mm)
7) Built-in IR-CUT, Low power consumption
8) IR Leds:9pcs powerful IR Array LEDs
9) IR Range: 100Meter IR Range
Main Features:
• Maximum resolution reach 2MG(1920×1280) @ 25 fps, video output full HD 1080p real-time
• H.264 video encoding
• Support dual-stream, Support 32K ~ 8M adjustable, frame rate 1-30 frames / sec adjustable
• Support WEB configuration
• Support Iphone, Android, Windows Mobile View
• Support OSD, Support for real-time video transmission
• Support motion detection and IO alarm linkage front-end storage / capture
• Support for front-end storage playback / download
• Support motion detection and IO linkage reminders and screen linkage
• Supports MJPEG capture Support remote management software for unified client,
• providing the perfect SDK development package
• Casing use high quality aluminum alloy material, full IP66
Application Places:
Apply to the financial, supermarket, telecommunications, government, schools, airports, factories, hotels, museums and other places of requirement of high-definition.
Picture Show:
Technical Parameter:
Model |
KD-ID3036SD |
|
Horizontal Resolution |
2.0 Megapixel Super Low Lux |
1.3 Megapixel |
Effective Pixels (HxV) |
Main stream: 1920*1080 |
Main stream: 1280*960 |
Video Processing |
H.264 Video Code,Support dual-stream,32k-8m adjustable,1-30/s frame rate adjustable |
|
Image Sensor |
1/2.7" Sony CMOS IXM222 sensor |
1/2.7"Micron CMOS AR0130 sensor |
Digital Signal Processor |
Hi3516C |
HI3518C |
Mini Illumination |
0.1lux-sec |
0.5lux-sec |
Frame Rate |
2.0Megapixel@25FPS |
1.3Megapixel@25FPS |
Network Port |
1 RJ45 Ethernet interface, 10M/100M self-adaption |
|
Network Protocol |
TCP/UDP/HTTP/MULTICAST/UPnP/NTP/RTSP |
|
ONVIF |
Support Onvif 2.0 |
|
Lens |
22X optical zoom module(4.5-97.5mm) |
|
IR LEDs |
9pcs powerful IR Array LEDs |
|
Night Vision |
100Meter IR Range |
|
Video Compression |
H.264 / JPEG |
|
Mobile Phone Monitor |
Support IPhone, Windows, Android mobile view |
|
Motion Detect |
Yes |
Yes |
POE |
Optional |
Optional |
WIFI Transmission |
Optional |
Optional |
Operation |
Offer free CMS, Support Web setting, OSD, real-time video transmission, support motion detection and IO alarm linkage for front end shortage/Capture/playback/download, Support Central remind and image linkage after motion detection and IO alarm linkage, support MJPEG capture, Support unit client-side remote management software |
|
Material |
Aluminum Alloy |
|
Water-resistant |
IP66 |
|
Operating Temperature |
-10 ~ 50℃(relative humidity: max95%) |
|
Power /Current |
DC12V±10% / PoE (802.3af) |
|
Guarantee |
2 years |
|
Dimension |
250(L) x250(W) x450(H)mm |
|
Weight |
5.5 KG |
|
Certifications:
Warranty
a.24 Months From Shipping Date;
b.24 Months, any defective product caused by non-artificial reason we will get repaired or replaced for free;
OEM & ODM Services
a. Including Label,Manual,Packages,Logo Printing and Special Outside Color and so on;
Payment Terms
a. Telegraphic Transfer (T/T)
b. Paypal
4% commission charges will be added into the amount;
HD IP Speed Dome Cameras
For more CCTV Cameras information,welcome to contact
Clark sales04 @ , Skype : Clark.kdsecurity
Website :
