Lowest price plastic housing cctv camera ahd dome camera 3.6mm fixed lens OSD menu, 3D DNR, Smart IR dome camera
Product Features:
1) High DefinitionCMOS sensor,
2) Resolution: 600/700/800/1300TVL/1.0/1.3/2.0Megapixel
3) Lens: 3.6mm/6mm fixed lens,
4) OSD menu, 3D DNR, Smart IR
5) IPrange:IP64, high reliability
6) Material: High ABS Quality Plastic casing
7) Maximum transmission distance, 75-3 coaxial cable transmission more than 500 Meter
Technical Parameter:
Model |
KD-PD1020PF |
|||
Type |
HD Plastic Dome Camera |
|||
Horizontal Resolution |
AHD 1.3megapixel |
AHD 1.0megapixel |
CMOS 1300TVL |
CMOS 800TVL |
Effective Pixels (HxV) |
1280(H)*960(V) |
1280(H)*720(V) |
1280(H)*960(V) |
976(H)*582(V) |
Signal System |
PAL / NTSC |
|||
Image Sensor |
1/3"SONY238 CMOS With IR-CUT |
1/4"OV9712 CMOS With IR-CUT |
1/3"SONY 138COMS With IR-CUT |
1/4"139 CMOS With IR-CUT |
Mini Illumination |
0.02lux(IR on) 0.00lux(IR off) |
0.05lux(IR on) 0.00lux(IR off) |
0.02lux(IR on) 0.00lux(IR off) |
0.1lux(IR on) 0.00lux(IR off) |
Lens |
3.6/6mm fixed lens |
|||
IR LEDs |
NO IR leds |
|||
Night Vision |
NO |
|||
OSD |
OSD |
OSD |
OSD |
- |
WDR |
WDR |
D-WDR |
D-WDR |
- |
DNR |
3D-DNR |
3D-DNR |
2D-DNR |
- |
AES |
PAL=1/50 ~1/100,000sec;NTSC=1/60 ~1/100,000sec |
|||
S/N Ratio |
> 48dB(Auto Gain Off) |
|||
BLC |
On/Off |
On/Off |
On |
On |
AGC |
Auto/Manual/Off |
Auto/Manual/Off |
Auto |
Auto |
White Balance |
ATW/Manual/Auto |
ATW/Manual/Auto |
ATW |
ATW |
Video Output |
1.0V P-P,75Ω |
|||
Operating Temperature |
-10 ~ 50℃(relative humidity: max95%) |
|||
Power Voltage |
DC12V±10% |
|||
IP range |
IP64 |
|||
Material |
High Quality ABS Plastic |
|||
Dimension |
85(L) x85(W) x55(H)mm |
|||
Weight |
0.20 KG |
|||
CMOS: |
1/3"PC3089 CMOS Sensor, With IR-Cut |
700TVL |
CMOS: |
1/4"139 CMOS + FH8510 DSP,with IR-Cut |
800TVL |
CMOS: |
1/3"SONY 138COMS + 8520 DSP, Low Lux |
1300TVL |
CCD: |
1/3"Sharp 2365 CCD + Nextchip 2090 DSP |
600TVL |
CCD: |
1/3"SONY 811 CCD + SONY Effio-E DSP |
700TVL |
AHD: |
1/4"1004 CMOS + NVP2431H DSP |
1.0Megapixel |
AHD: |
1/4"AR0141 CMOS + NVP2431H DSP |
1.0Megapixel |
AHD: |
1/3"AR0130 CMOS + NVP2431H DSP |
1.3Megapixel |
AHD: |
1/3"SONY238 CMOS + NVP2431H DSP, Low Lux |
1.3Megapixel |
AHD: |
1/3"SONY222 CMOS + NVP2441H DSP, Low Lux |
2.0Megapixel |
TVI: |
1/3" OV2710 CMOS + 8531 DSP, Low Lux |
2.0Megapixel |
Structure Chart:

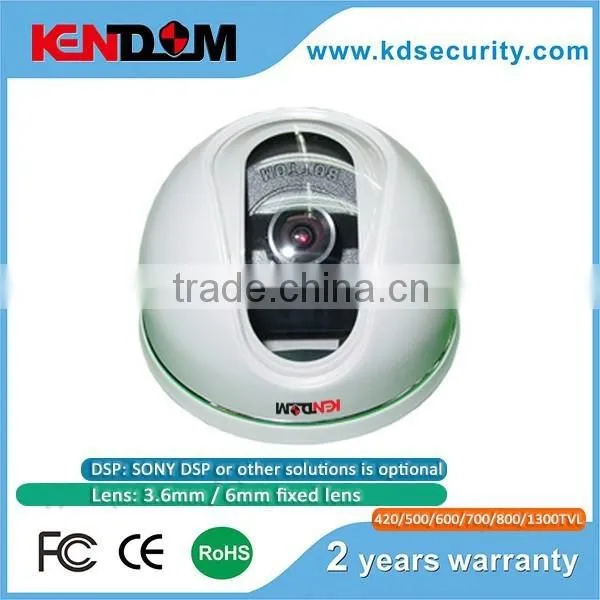

The picture:
The camera effect picture:
Application Places:
Apply to the financial, supermarket, telecommunications, government, schools, airports, factories, hotels, museums and other places of requirement of high-definition.
