--- Better sales gold mining machine,trommel scrubber for clay gold mine
gold separatingmachine Applications
1. we design it to washing alluvial gold gravel, clay and sand,
2.it normaly use in gold sand wash plant, placer gold concentrate plant, alluvial gold washing plant, river gold mining plant
3.It can input feeding size up to 230mm. processing capacity upto 200tons per hour
4. popular used in South Africa, Sudan, Ghana, South Amercia alluvial mining plant
JXSC gold washing machine Features
1. High capacity and high power scrubbing, large capacity can reach 200-220tons per hour
2. The long drum of the scrubber retains material for longer, more vigorous washing for complete separation
3. One high output electrical motor driving a gear system providing efficient torque
4. Adjustable rotary speed
5. The water with high pressure flushed the inwall of drum
6. Can accept material up to 230mm
7. Mechanical sealing of inlet chute – minimal spillage when over feeding
8. Drive loads absorbed within the drive frame and pivoting drive frame design – Foundations only have to support vertical load and are not critical for alignment ie minimal cost
9. Shell design less mass than conventional roller supported units – installation craneage requirement reduced
gold washing machine Working Principle
A: The rotary gold mining scrubber is an autogenously rotating drum scrubber, utilising pebbles and rocks within the feed source to fracture and disintegrate clays, agglomerates and soft oxides.
B: Disintegrated material is homogeneously slurried within the drum, whilst the autogenous load is retained within the drum by reverse flights located at the drum discharge end.
C: Slurry and washed oversize overflows the drum discharge throat to the concentric exit trommels.
1. What mineral are you separating?
2. What's the maximum size of raw material?
3. What's the size range of the mineral?
4. What's the capacity do you need per hour?
Could you pls confirm the aboved questions so that we can design the suitable flowchart for you?
1. do testing for gold ore, tin ore , iron ore, tungsten processing in laboratory
2. design the mineral processing flow chart. design the layout of machines in mining plant
3. provide installation & operation video for mining plant
4. our engineer can go to customer minesite for installation, running test and training staff overseas
5. provide full solution for the complete gold wash plant
6. provide 12 month gurantee and spare parts available.
we provide OEM service. we can produce the machine according to your design and drawing.

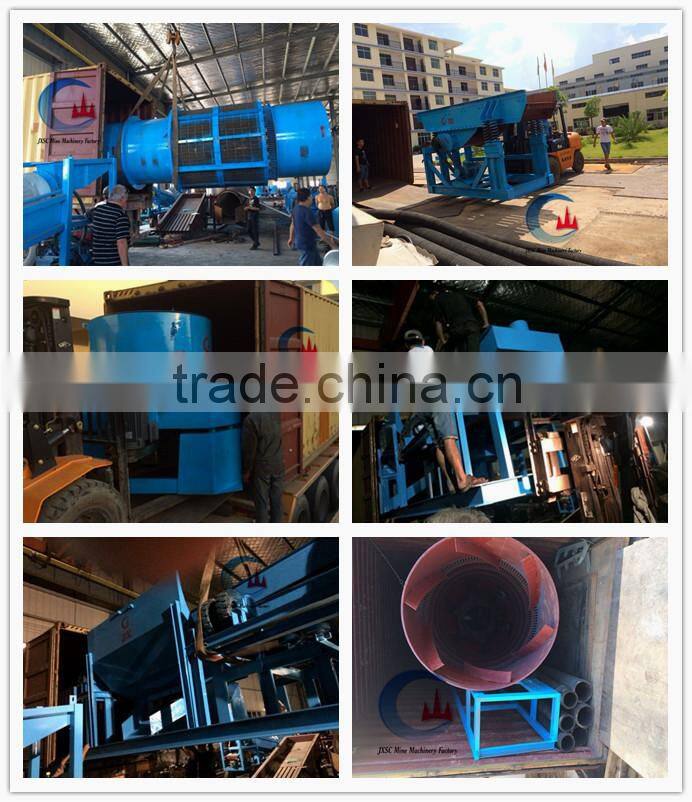

please find following are some further detail pictures of the gold washing machine.
Screen material can made as your need or we will give you suggestion based on your mining conditions.

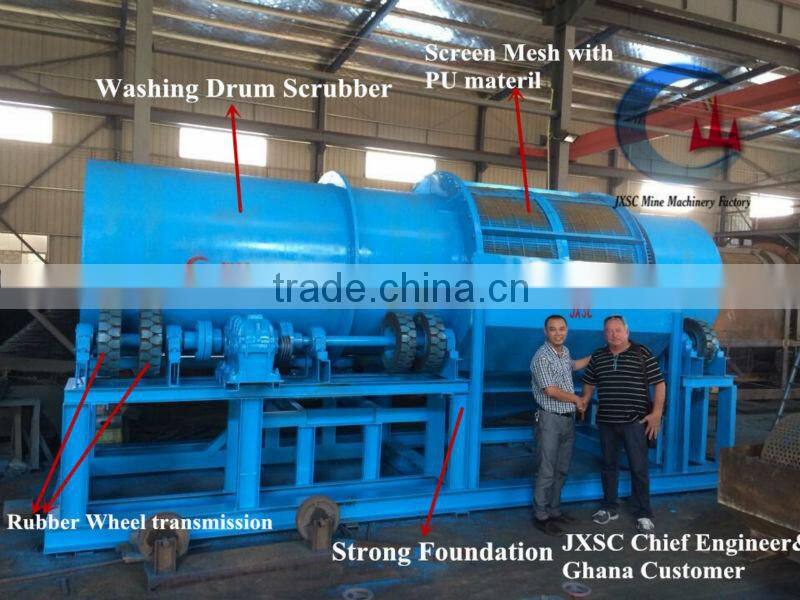

100tons capacity Gold Washing Machine / Gold Trommel Scrubber

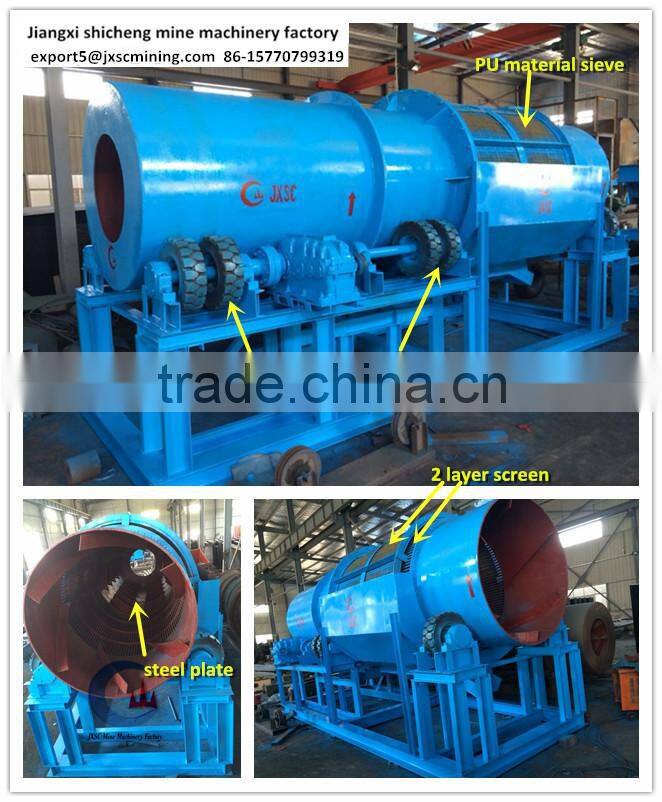

Inner Screw Panels -- very efficient to wash off sticky clay of gold ores
Screen can be made of PU material which is wear-resistance, using long life, it is jointed with screw, can be replaceable.
JXSC can make below three types of Driving Device :
1. With Rubber wheel driving.
2. With Steel wheel & Gear driving.

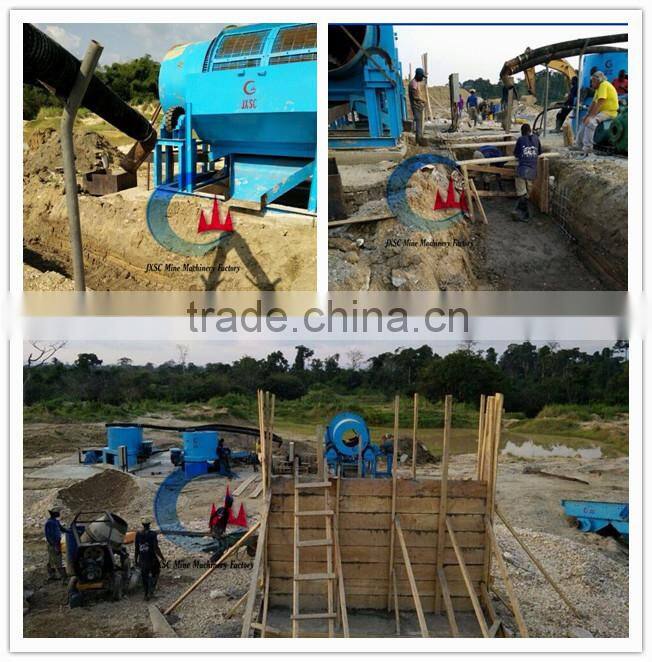

gold sand washing plant installation picture in Ghana
our large capacity gold washing machine
1. TUV, CE, SGS certificate
our factory has been producing mining machine for 29 years. we are very professional, and our machines are recongized by TUV, CE, SGS certificate insitute.
2. gold washing machine customers visiting our factory,
our machines sell around the world, main market is Africa, Asia and South America. involved in gold washing plant, iron processing plant, tin processing plant, tungsten mining plant. ect.
Welcome to 30 Years manufacturer JXSC
-- our experienced engineer can design flowchart according to your mine conditions:
If you have any interesting of our various Laboratory mining machines, pls feel free to contact with me, you are also very much welcomed to visit our factory which located in Shicheng country, Ganzhou city!
