Silica Sand Attrition Scrubber,Attrition Cell,Attrition Machine
- 2500 Set / Sets per Month
- guangzhou
- Hot sale best price metal ore crusher,metal ore crusher with CE
- Hot Selling jaw stone crusher jaw grinder and crusher manufacturer
- Hot Selling jaw stone crusher jaw crusher capacity 110-250tons congo
- Hot sale New type sand making plant in india for sale with low price
- High quality crushed stone processing and pulverized mineral processing
- Zenith construction sand making plant,construction sand making plant price
Product Details
Condition: | New | Type: | Gravity Separator | Production Capacity: | 98% |
Place of Origin: | Jiangxi, China | Brand Name: | JXSC | Model Number: | WM-98 |
Voltage: | 380v | Power(W): | 100kw | Dimension(L*W*H): | customized |
Weight: | 3000kg-10000kg | Certification: | CE ROHS | Warranty: | 12 month warranty |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Silica Sand Attrition Scrubber,Attrition Cell,Attrition Machine
Description of silica sand attribution machine
Attrition scrubbing is the process where a mineral is scrubbed primarily by the action of the slurry particles impacting one another. Attrition scrubbers, also known as Attrition Cells, are relatively simple devices. They consist of a tank, impeller system and drive system. Generally, the tank is PE lined and can be either square or octagonal. The impeller system is PE coated and normally consists of two sets of impellers with opposing pitches. The v-belt drive system is designed to effectively transmit the power to spin the shaft and impellers. The most important function of the attrition machine is the scrubbing of particle scrubbing of particle surfaces to remove film or coating.
Working Principle silica sand attribution machine
After Silica sand, quartz sand slurry (density of 60% ~ 75%) into the scrubbing machine, By agitation of stirring blade, Material would rolling up and down and make circle movement in the mixer .Collision and friction between material s ,So that the impurity and iron oxide which stick to the surface would drop.the edges and corner of material become smooth and pure .Finally, the purity of the material will be increased.
Application
JXSC versatile attrition scrubber is specially developed for a vast range of applications:
Cleaning of silica sand for glass making;
Liberation of mineral from slime coatings;
Disintegration of clay agglomerates;
Separation of sand grains from cement minerals;
High intensity conditioning;
Efficient lime slaking.
Features & Benefits of silica sand attribution machine
1. Low power consumption, strong scrubbing ability
2. Ease of operation, lower operating and maintenance cost
3. Simple structure, large effective volume and small occupation area
4. Minimal wear, longer life

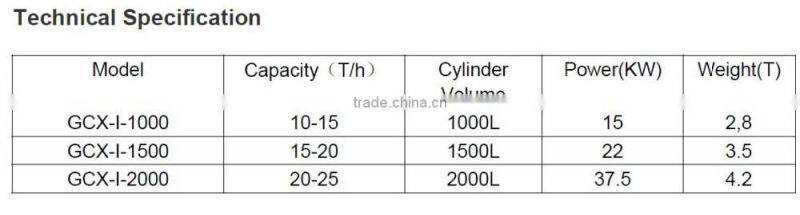

Technical Specification of silica sand attribution machine

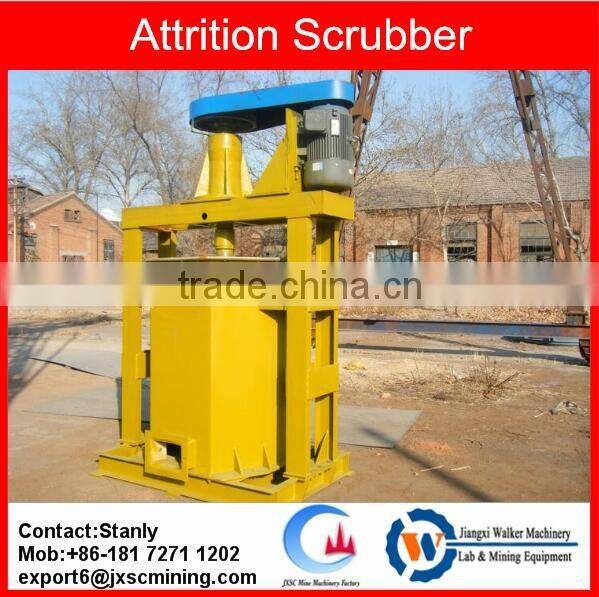

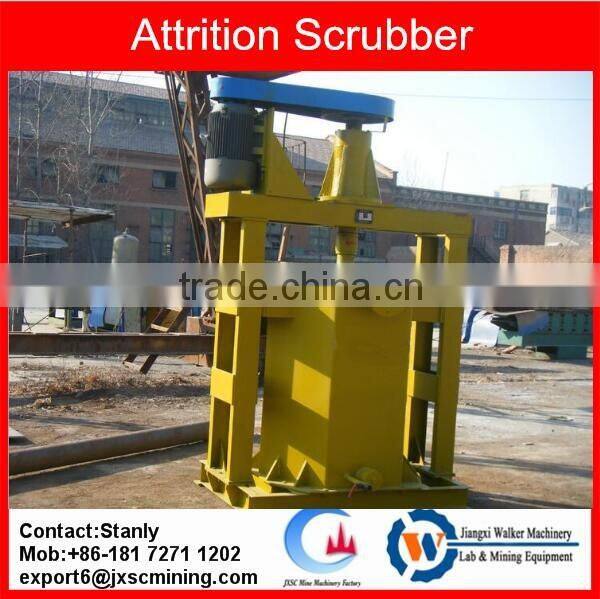

Pictures of silica sand attribution machine
Any more details,Please feel free to contact with Stanley
+86 18172711202 (for cellphone,whatsapp,wechat )
