laboratory wet high intensity magnetic separator, lab magnetic separator :
Brief Introduction of laboratory wet high intensity magnetic separator :
CSQ High Magnetic Density Separator is used for separating the fine hematite , false hematite, limonite and siderite and some other rare metal ore processing. The magnetic is for large area, large capacity. Tooth plate is regarded as magnetic media, magnetic strength and field gradient are with high value. It’s effective for the Low-grade oxide ore. And with good testing for the mineral such as manganese , beach sands , wolframite, tin , glass sand and phosphate mines.
Application area for laboratory wet high intensity magnetic separator :
It is mainly provided for labs of metallurgical, geological, building material, light and other industries to carry out separation tests of moderate and weak-intensity magnetic minerals, also for the relevant factories and mines to check and control production and technical indexes, improving technological process.
Main Structure of laboratory wet high intensity magnetic separator :
This machine is composed below parts:
1.magnetic system,
2.feeding part,
3.receiving part,
grammable controller,
5.separation tank,
6.water supply system,
7.frame, ect.
Main systems of the laboratory wet high intensity magnetic separator :
A: Magnetic system:
1.Iron core: five pieces of DT3 electrical pure iron core are assembled into U type magnet circuit. the cross dimention of the core is 130*220.
2. Exciting winding: double glass-fiber covered rectangular copper wires of 1.81*5.5 is winded into magnetizing coils. Eight coils are connected in series to the two sides of separation area. Besides, fan cooling windings are installed.
3. Separating tank.
B. Feeding, washing and receiving device.
the control procedures are : magnetizing--feeding--flushing the middling--demagnetizing--flushing the concentrate--magnetizing--feeding--flushing the midding--demagnetizing-flushing the concentrate, such cycle is repeated to realize the receipt of the sorted"tailings", "middling" and "concentrate"products.
C. Electric and program control parts.
Specifications of laboratory wet high intensity magnetic separator :

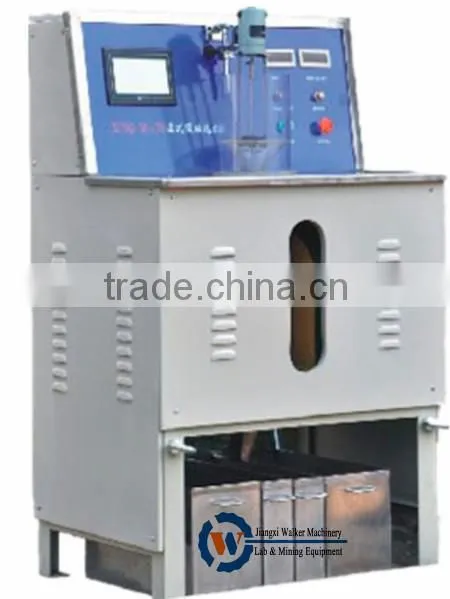

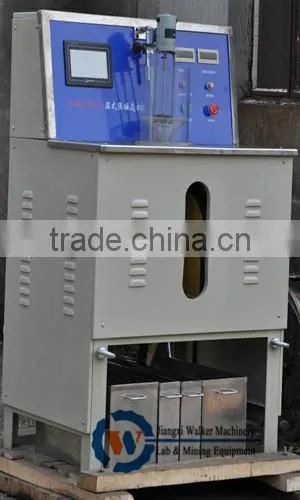

Detail pictures of laboratory wet high intensity magnetic separator :
Excepting the laboratory wet high intensity magnetic separator , we also provide many other series lab mining equipments, check below pictures:
Why choose JX WALER?
- Optimum quality products
- Timely delivery
- Cost-effective Price
- Competent and efficient team
- Efficient logistic facility
- Vast industry experience
- Large production capacity
- Maximum customer satisfaction
- Belief in long-term relationship with clients
Our showroom for lab equipments:
We pack the small lab wet drum weak magnetic separator with wooden case can ship by sea or by air as per your request:
Welcome to visit us, we are located in Ganzhou city, Jiangxi Province, Very near from Guangzhou, Shenzhen,Shanghai, only takes about ONE HOUR by air, also can by train very conveniently! We will pick you up at air port or train station
If you are interested in our products, please feel freely to contact me:
