magnetic tube tester machine,laboratory magnetic tube

Jiangxi Walker Machinery is a leading large-scale professional manufacturer of laboratory equipment for mineral processing, as well as sample preparation equipment. We concentrate on researching, designing, and manufacturing many kinds of laboratory machines.

Our products mainly include below:

lab pulverizer for sample preparation,

lab crusher divider, lab crusher,

lab ball mill, lab grinding mill machine,

lab flotation machine ,

lab vacuum filter,

lab magnetic separator,

laboratory shaking table,

lab spiral chute, lab hydrocyclone,

lab centrifugal machine, lab sieve shaker, and many other lab testing equipment.

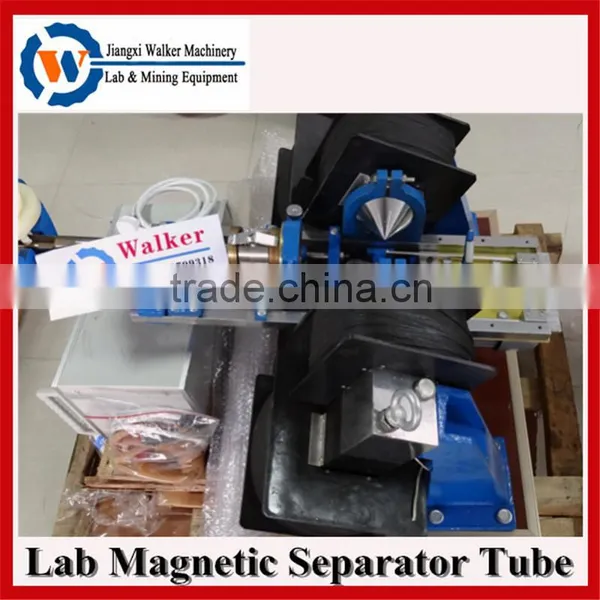

magnetic tube tester machine,laboratory magnetic tube   :

Introduction &Application area of magnetic tube tester machine,laboratory magnetic tube     :

 XCGS series Magnetic Tube is Davis Magnetic Tube Tester, it’s widely used in mining, metallurgy, geography testing. It’s used for testing the magnetic content in high magnetic density ore in the mineral processing operation.

Work Principle of magnetic tube tester machine,laboratory magnetic tube      :

XCGS 50 magnetic separator tube lies between the two ends of electromagnet, It is equipped with glass tube to reciprocate and swing. when the sorted samples pass the magnetic field, the magnetic parts get close to the tube wall. the non magnetic parts are discharged after washed away by water during mechanical movement.

Operation processing of magnetic tube tester machine,laboratory magnetic tube  :

1. install and check the machine is in good condition

2.prepare a 1 litre glass cup.

3.add 20 gram mineral power with 500ml water, and small amount of alcohol, mixing it and place it at least 5 minute.

4. set the magnetic intensity as requirement.

5. use the clip to close the small hose, put one basin under the hose mouth,  then start the machine.

6. add water to the glass tube until the water over the magnet head about 50mm.

7. add the mixture into the tube.

8. open the clip, so the non-magnetic powder will go with the water, and the magnetic mineral stay in the tube.

9. add water little by little from the top of the tube until all the non-magnetic powder go away.

10.stop the machine and wash the magnetic mineral from the tube.

Specifications of magnetic tube tester machine,laboratory magnetic tube   :

Detail pictures of magnetic tube tester machine,laboratory magnetic tube     :

Other laboratory magetic separator: lab wet drum low intensity magnetic separator, lab wet high intensity magnetic separator:

Excepting the laboratory davis tube, laboratory magnetic tube    , we also provide many other series lab mining equipments, check below pictures:

Why choose JX WALER?

• • Optimum quality products
  • Timely delivery
  • Cost-effective Price
  • Focused approach
  • Competent and efficient team
  • Efficient logistic facility
  • Vast industry experience
  • Large production capacity
  • Ethical policies
  • Transparent dealings
  • Good financial position and total quality management
  • Maximum customer satisfaction
  • Belief in long-term relationship with clients
  • Safety and sincerity
  • Easy payment modes

Our showroom for lab equipments:

We pack the laboratory davis tube from China, laboratory equipment  with wooden case can ship by sea or by air as per your request:

Welcome to visit us, we are located in Ganzhou city, Jiangxi Province, Very near from Guangzhou, Shenzhen,Shanghai, only takes about ONE HOUR  by air, also can by train very conveniently!  We will pick you up at air port or train station

If you are interested in our products, please feel freely to contact me:
