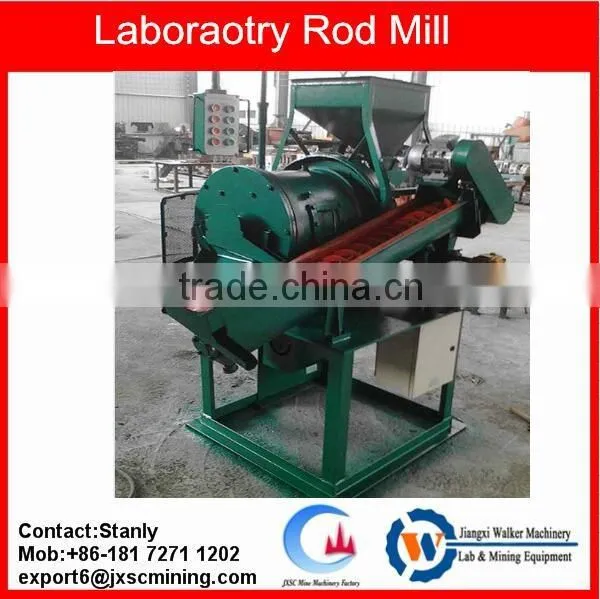

XMBL 420x600 laboratory overflow type continuous rod mill
Introduction of laboratory overflow type continuous rod mill
this machine is closed-circult grinding machine integrating oscillating feeder,rod mill ,spiral classifier ,screw conveyor and other single machines.it can be used to continuously grind ores ore study and test the grindability indexess of ores.it can also be used in ore dressing plants as ore grinding equipment or used in other industrial secotrs to mill materials
Working principle of laboratory overflow type continuous rod mill
The feeding part is composed of a cylindric feeder of ore storage bin type and a snail feeding device.
The grinding products automatically overflow when passing the cover at the discharging end. They automatically flow into the classifier through the tilting discharging chute.
The grinding products automatically overflow when passing the cover at the discharging end.
The classifying part is a Φ150×1400 screw conveyor. It takes the inlet of discharging chute as the fulcrum of its one end around which the whole classifier revolves for a certain angle to meet the requirement of different gradients.
The conveying part is aΦ90×420 screw conveyer.
Features of Laboratory Grate Mill
Mounting requires no additional foundation. After opening the case, fix 4 anchor bolts, clean packaging grease, check lubrication and connect water pipeline and power supply.
Trial run is carried out to determine the operation direction and then the equipment can run as per the operation procedures.
Applications of Laboratory Grate Mill
S12 is provided for mineral processing research organization and pilot plant for continued grinding operation, and study and determination of indexes of ore grind ability in tests of mineral feasibility study. It also can be provided for beneficiation plant as grinding equipment or other industries as fine material grinding equipment. The product is produced by the only enterprise designated by the former Ministry of Geology and Mineral Resources, in compliance with the Industrial standards.
Transportation of Laboratory Grate Mill

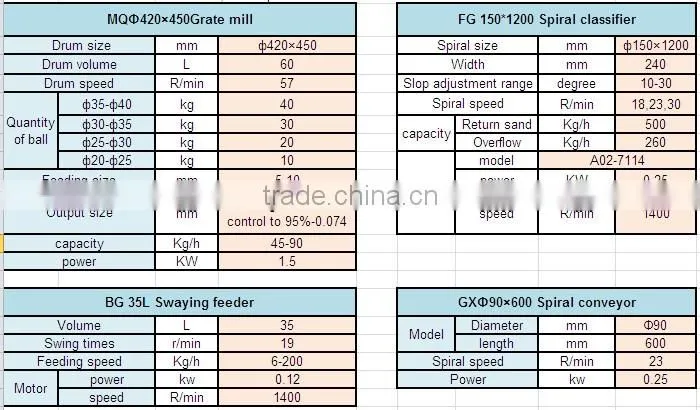

Technical Parameter of Laboratory Grate Mill
We could supply many other lab machines as below
Company Information
Business Type: Manufacturer
Main Products: Lab crusher machine, lab flotation machine, lab sample pulverize, lab magnetic separator, lab grinder machine
Location: Jiangxi, China (Mainland)
Year Established: 2014
Number of Employees: 101 - 200 People
Main Markets: Domestic Market, Africa, Southeast Asia, South America, Southern Europe
Average Lead Time: 10 Day(s)
FAQ
- 1. What’s your delivery time?
Within 15DAYS
- 2. What’s your payment method?
Small amount: 100%TT
Large amount: 30%TT prepayment, deliver after receive balance.
- 3. What’s your MOQ
One set.
Our service
Pre-sale services: Passion &thoughtful
we provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
After-sale services: Faithfulness
Oneyear warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
We sincerely look forward to be of your service!
