PC400*200 high quality hammer crusher machine
Introduction of high quality hammer crusher machine
small sized hammer crusher crush the materials by high speed rotation hammers crashing, it’s with simple structure, large crushing ratio and high efficiency features, running with wet and dry crushing work. The laboratory hammer crusher is the best to crush medium hardness and brittleness materials especially apply to mining area, cement, coal, metallurgy, building materials, roads, fuel&chemical departments. This crusher can be adjust the grate gap to change the output size according user’ requirements.
Working principle of high quality hammer crusher machine
small sized hammer crusher mainly crush the materials by impact crashing, the crushing processing is like this, the materials put into the crusher, broken by high speed rotation cashing, and with high speed cashing in baffles and screen bars, the broken material been repeatedly conflict, the bigger particle materials hammer again on the screen bars by grinding, squeezing and crushing, materials extruded from the gap of hammers.
Structure of small sized hammer crusher
laboratory hammer crusher main parts is rotors with hammers, the rotor includes shaft, pins and small hammers.
Application of small sized hammer crusher
laboratory hammer crusher applicate on various medium hardness and weak abrasive materials. The materials anti compressive strength less than 100Mpa, water less than 15%. Like as crushing the coal, salt, white sub, gypsum, brick, limestone etc. Also used for crushing fibrous structure, strong elasticity and toughness of wood, paper or crush the asbestos-cement waste to recover asbestos fiber etc.
Features of high quality hammer crusher machine
Fine crushing effect, good sealing performance, non-stick and no blocking materials, easy to clean, widely used in various industries laboratory sample crushing work.
Intelligent PLC control, touch screen operation, auto finish the crushing work. Automatic clean sample device, never blocking if the materials moisture less than 25%. With safety fault alarm and inquiry system. The main parts use special material, the using life 3-5 times than normal materials. With automatic dust removal device make sure not dust leakage, comply with environmental requirement. Complete sealed design, comply with safety working requirement. With opened door easy to daily maintenance. Working on the level ground, don’t need any basic fixed PC400*200 high quality hammer crusher machine .
| Model | Feeding Size | Output adjustable Range(mm) | Motor Power | Capacity | Weight |
| (mm) | (kw) | (kg/h) | (kg) | ||
| PC400*150 | 90 | 0.2-6 | 1.5 | 600-800 | 150 |
| PC400*185 | 90 | 0.2-6 | 3 | 400-800 | 180 |
| PC400*200 | 100 | 0.2-6 | 3 | 400-800 | 200 |
| PC180*150 | <50 | 1-6 | 2.2 | 300-600 | 136 |
| PC250*360 | 150 | 3-12 | 3 | 600-1000 | 300 |

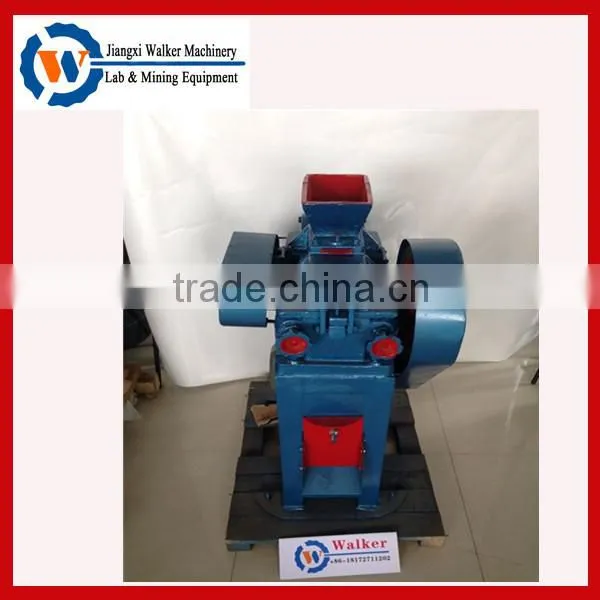

Detailed picture of high quality hammer crusher machine
Other hot selling high quality hammer crusher machine
