Help CenterHigh Voltage Rutile Electric Separation Equipment for Rutile Recovery Plant
Related Products
-
Electrostatic Separator Rutile Separation Machine for Rutile Processing PlantUS$ 5,000 - 20,000MOQ: 1 Set -
Rutile Processing Equipment Electric Separation Machine With 3T/H CapacityUS$ 5,000 - 20,000MOQ: 1 Set
-
Monazite Separation Roller Electrostatic SeparatorUS$ 15,000 - 20,000MOQ: 1 Set
-
Tin Tantalum Upgrading Four Roller Electrostatic SeparatorUS$ 15,000 - 20,000MOQ: 1 Set
-
Beach Sand Roller Electrostatic SeparatorUS$ 15,000 - 20,000MOQ: 1 Set
Jiangxi Walker Machinery Company is Sub-company of Jiangxi Shicheng Mine Machinery factory (JXSC), with more than 29 years history , we are one of the leading professional manufactrurer of mining equipments in China. We have got CE/SGS/ISO certificate for our main product to guarantee equipments quality.
Our advantages are providing professional minerals process solution, complete set equipments and after-sale engineer installation service for Alluvial Gold washing plant/alluvial tin ore/tungsten ore/iron sand ore/ hematite ore/chrome ore/tantalum-niobium ore/coltan ore, as well as many rock ores.
Our Main product includes: trommel screen, trommel scrubber, shaking table, spiral chute separator, jig machine, centrifugal concentrator, sluice box, vibration screen, melting furnace, magnetic separator, flotation machine, jaw crusher, ball mill, laboratory mining equipments, as well as many accessories machine: belt conveyor, sand pump, slurry pump, mixing tank, ect.
main market is in Africa, South America, Southeast Asia, Asia, ect. Our cooperated customers cover Ghana, Sudan, Uganda, Nigeria, Cameroon, Madagascan, Malaysia, Indonesia, Philippines, Russia, Mongolia, Mexico, Brazil, Chile, Canada, Australia, Iran, ect.
Introduction & working Principle of high voltage rutile electric separation equipment for rutile recovery plant :
Zircon sand sepration machine electrostatic separator utilize the electrical conductivity difference between the various minerals within an ore feed. The high-tension roll electrostatic separator (HTR) utilizes a grounded roll to transport feed material through the high voltage ionizing field (corona) where particles are charged by ion bombardment.
Conducting particles pass their charge to the grounded carrier electrode (roll) and are therefore free to be thrown from the roll by centrifugal and gravity forces.
Non-conducting particles are pinned to the carrier electrode and are transported further around the roll periphery, where they drop from the electrode surface, either because their charge dissipates, or by mechanical means, e.g. brush and high voltage AC wiper.
Throughput capacity of a electrostatic separatator for zircon mining plant is closely related to the roll speed, roll width, and characteristics of the feed material. For a roll with a smaller diameter, a higher rotation speed is required in order to maintain a substantial feed rate. However, at higher RPM, coarse, non-conductive particles tend to leave the roll surface too early due to the increase in centrifugal force resulting in a large portion of misplaced non-conductive particles in the conductor stream. Vice versa, under a low RPM condition, fine conductive particles do not gain enough inertia to be thrown off the roll, resulting in misplacement of the nonconductor stream.
Therefore, for the treatment of particle mixtures with a range of physical characteristics, including conductivity, particle size, and density, it is necessary to adjust the roll speed and electrode positions to optimize the process.
Application Area of high voltage rutile electric separation equipment for rutile recovery plant :
The electrostatic separatator for zircon mining plant has been widely used to separate & refining the monazite, zircon, , ilmenite, tantalite, rutile, Scheelite, cassiterite, andalusite, garnet, tourmaline, black tungsten , titanium,etc.
those materials are hardly qualified when gravity concentration, flotation and magnetic separation are adopted, such problem can be well solved after electrostatic separation is adopted.

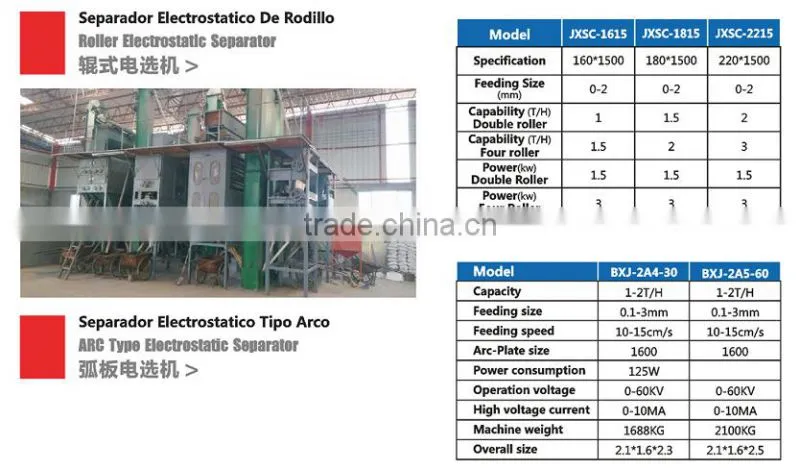

Specifications for high voltage rutile electric separation equipment for rutile recovery plant :

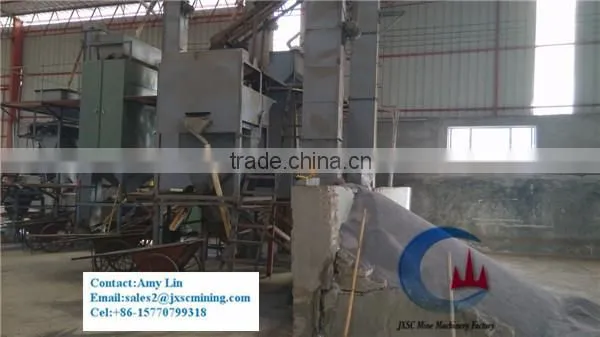

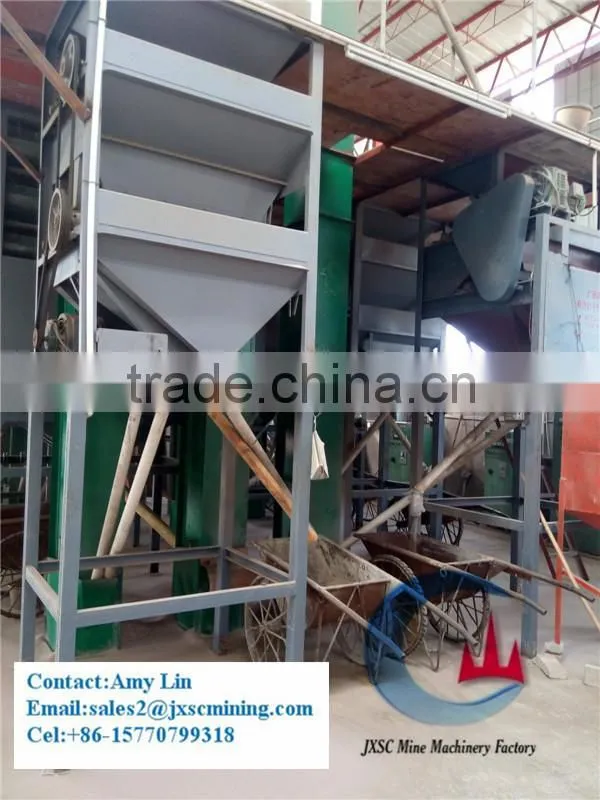

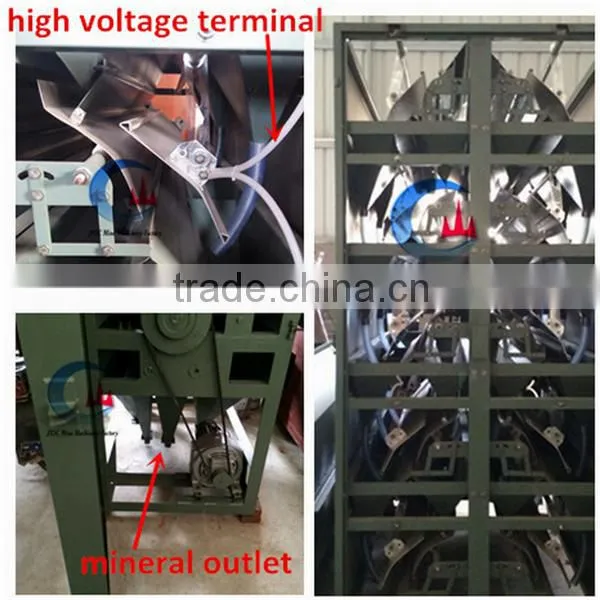

Detail pictures of high voltage rutile electric separation equipment for rutile recovery plant :
Arc-plate electrostatic separator:
Roller electrostatic separator:
high voltage rutile electric separation equipment for rutile recovery plant in beach sand procesing plant:
We sincerely provide below services:
-Mining project processing consulting.
-Design and draw flowchart.
-Do testing for gold ore, tin ore , iron ore, tungsten processing in laboratory.
- Providing whole processing plant equipments.
-Dispatching engineer overseas guidance for equipments installation, testing equipments, training worker.
Welcome to visit us, we are located in Ganzhou city, Jiangxi Province, Very near from Guangzhou, Shenzhen,Shanghai, only takes about ONE HOUR by air, also can by train very conveniently! We will pick you up at air port or train station
If you are interested in our products, please feel freely to contact us:
