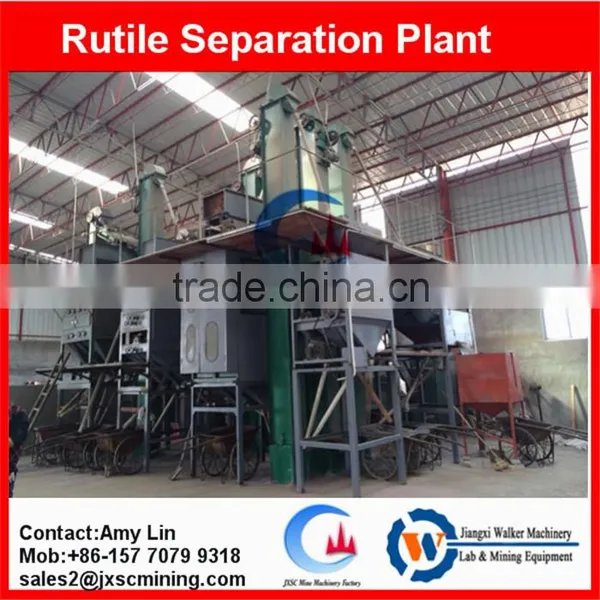

rutile recovery machine electrostatic separation equipment for sale

Jiangxi Walker Machinery Company is Sub-company of Jiangxi Shicheng Mine Machinery factory (JXSC), with more than 29 years history , we are one of the leading professional manufactrurer of mining equipments in China. We have got CE/SGS/ISO certificate for our main product to guarantee equipments quality.

Introduction & working Principle of   rutile recovery machine electrostatic separation equipment :

 Zircon sand sepration machine electrostatic separator utilize the electrical conductivity difference between the various minerals within an ore feed. The high-tension roll electrostatic separator (HTR) utilizes a grounded roll to transport feed material through the high voltage ionizing field (corona) where particles are charged by ion bombardment.

Conducting particles pass their charge to the grounded carrier electrode (roll) and are therefore free to be thrown from the roll by centrifugal and gravity forces.

Non-conducting particles are pinned to the carrier electrode and are transported further around the roll periphery, where they drop from the electrode surface, either because their charge dissipates, or by mechanical means, e.g. brush and high voltage AC wiper.

Throughput capacity of a electrostatic separatator for zircon mining plant is closely related to the roll speed, roll width, and characteristics of the feed material. For a roll with a smaller diameter, a higher rotation speed is required in order to maintain a substantial feed rate. However, at higher RPM, coarse, non-conductive particles tend to leave the roll surface too early due to the increase in centrifugal force resulting in a large portion of misplaced non-conductive particles in the conductor stream. Vice versa, under a low RPM condition, fine conductive particles do not gain enough inertia to be thrown off the roll, resulting in misplacement of the nonconductor stream.

Therefore, for the treatment of particle mixtures with a range of physical characteristics, including conductivity, particle size, and density, it is necessary to adjust the roll speed and electrode positions to optimize the process.

Application Area of rutile recovery machine electrostatic separation equipment  :

The electrostatic separatator for zircon mining plant has been widely used to separate & refining the monazite, zircon, , ilmenite, tantalite, rutile, Scheelite, cassiterite, andalusite, garnet, tourmaline, black tungsten , titanium,etc.

those materials are hardly qualified when gravity concentration, flotation and magnetic separation are adopted, such problem can be well solved after electrostatic separation is adopted.
