Dear Customers,
This is Ada,thanks for your interest in our products. The following is for your reference, we have our own design teams and factory ,we can design according to your requirement.Welcome your inquiry,I will reply you as soon as possible.
A.Commodity: Slitting Machine,Slitting Line,Slitter
1. Material: Hot/cold rolled coil, etc
2. Thickness: 0.3-16mm
3. Width:100-2200mm
4. Inner diameter: 508mm
5. Max outer diameter: 1600mm
6. Capacity: 15T(depends on client's demand)
B.Main data of Slitting Machine,Slitting Line,Slitter
1. Main power: About 150KW
2. Machine outline (L*W): About 15MX8M(including Safety Area)
3. Installation height: About 2m
4. Total weight: About 40 tons
5. Operators for the machine: 2-3 workers
6. Paint of the machine: Main body in green, moveable units and danger area in yellow (or according to Buyer's demands)
7. Running direction (decoiling direction): Depends on Buyer's requiremen
C. Work Flow of Slitting Machine,Slitting Line,Slitter

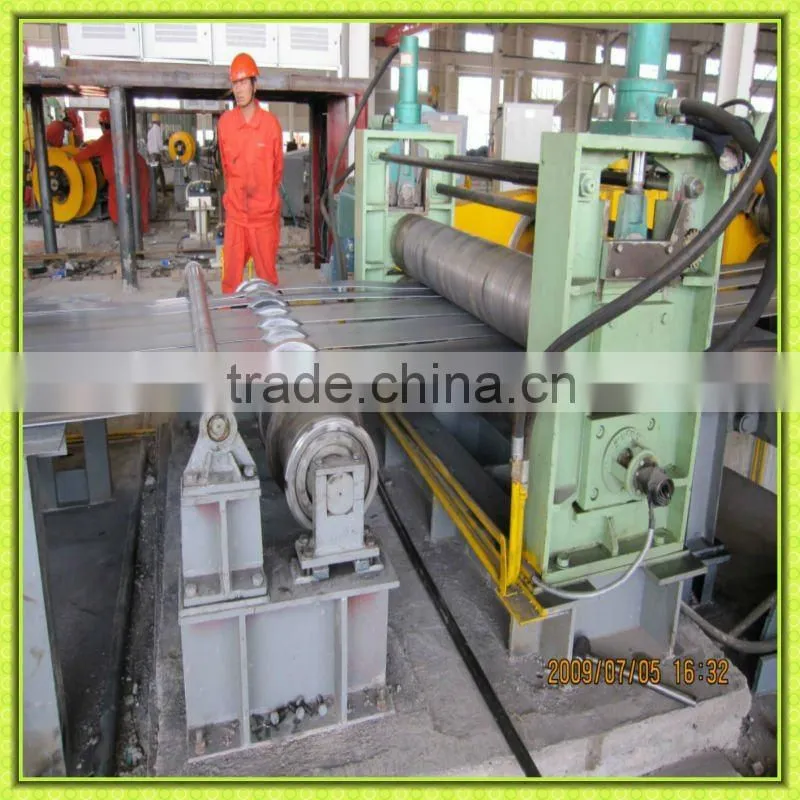

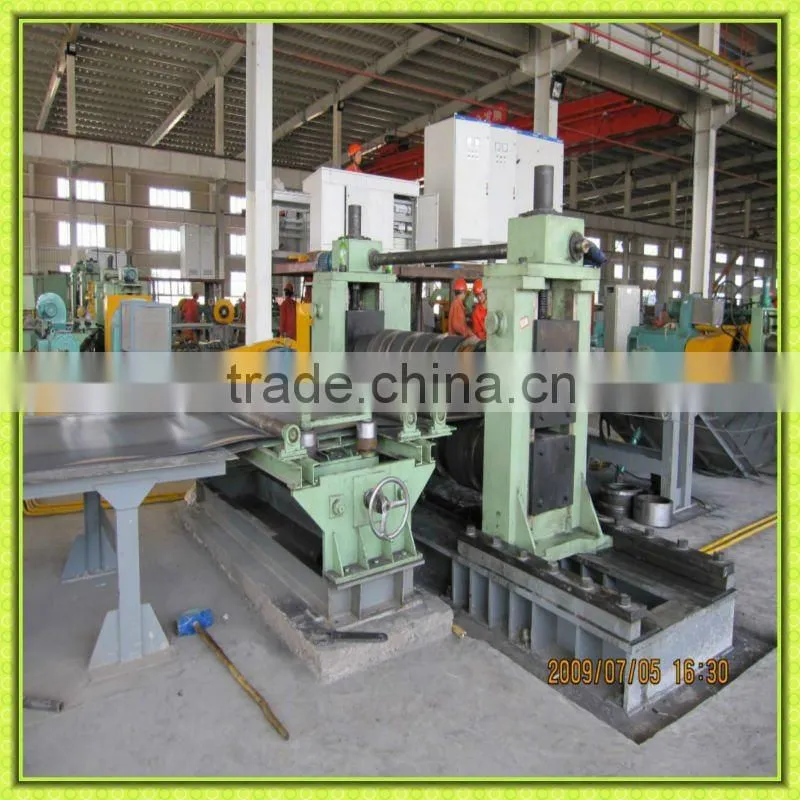

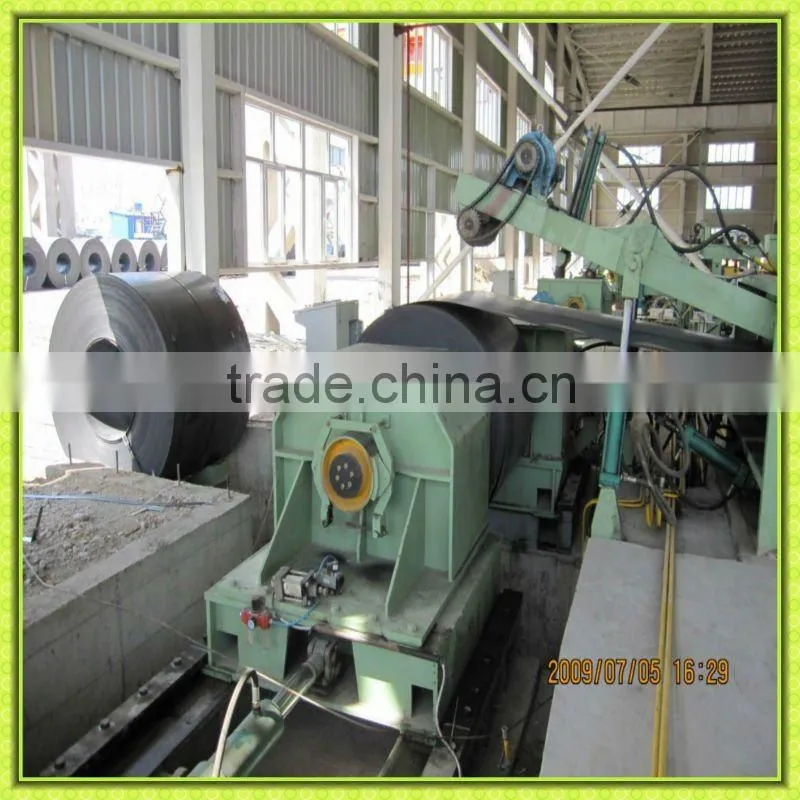

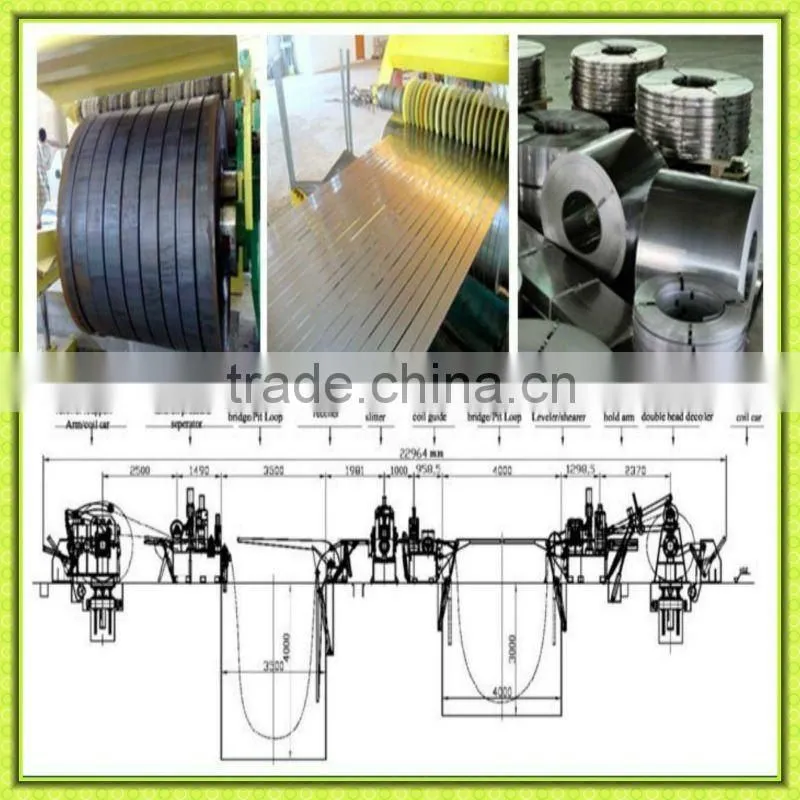

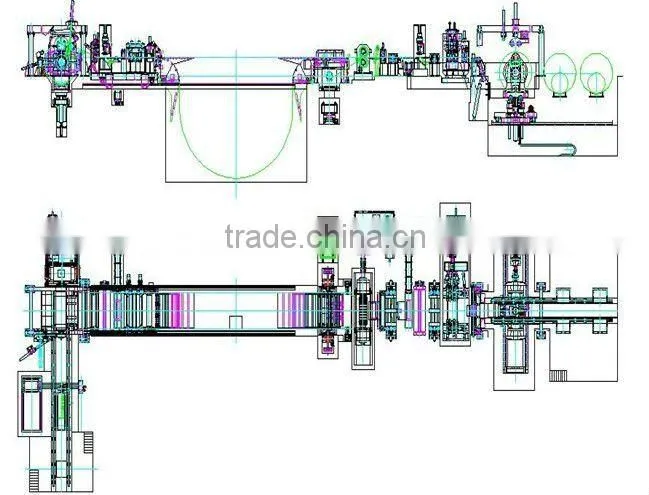

Loading trolley---hydraulic decoiler---feeding unit---sheet head cutter---rectification unit---rotary slitter---scrap re-coiler---loop---separator & tensioner---recoiler---unloading trolley
D.Application of Slitting Machine,Slitting Line,Slitter

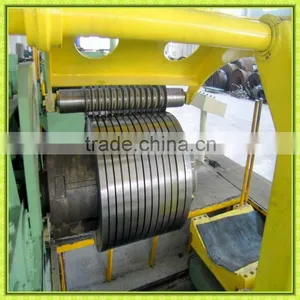

The Sheet Slitting Machine/Slitting Line/Slitter is used for steel sheet with different specifications, through uncoiling slitting - recoiling to any needed width Sheet.The line is reasonable in layout, easy operation, high level of automation, high productivity which could processing CR & HR coil.
E.More type for the Slitting Machine,Slitting Line,Slitter
| No. | Model |
Raw Width(mm) | Thickness(mm) | After slitting width(mm) | Speed(m/min) |
| 1 | HX-400 | 100-400 | 0.3-2.0 | 20-380 | 10-120 |
| 2 | HX-500 | 100-500 | 0.3-2.0 | 20-380 | 10-120 |
| 3 | HX-700 | 120-700 | 0.3-2.0 | 40-580 | 10-100 |
| 4 | HX-800 | 120-800 | 0.7-3.5 | 40-750 | 10-100 |
| 5 | HX-1300 | 400-1300 | 0.8-5.0 | 60-1250 | 10-80 |
| 6 | HX-1600 | 600-1600 | 2.0-8.0 | 60-1550 | 10-80 |
| 7 | HX-1800 | 900-1800 | 3.0-10.0 | 90-1750 | 10-60 |
| 8 | HX-2050 | 1000-2000 | 4.0-12.7 | 90-2000 | 10-40 |
| 9 | HX-2200 | 1000-2200 | 8.0-16.0 | 90-2150 | 10-30 |
If you need more information,please feel free to contact me.
Best wishes

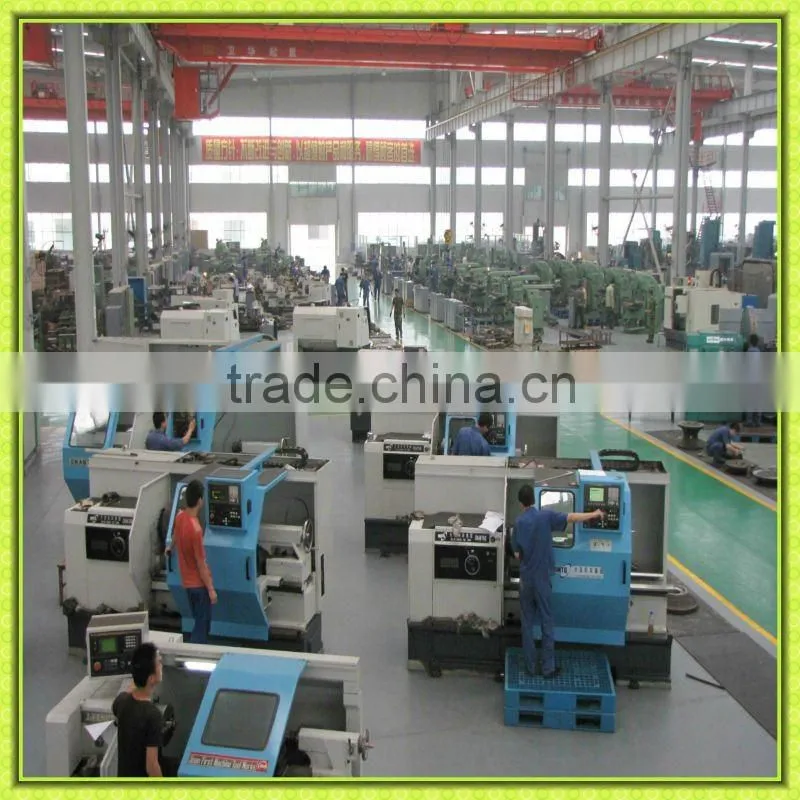

Hengxing Metallurgical Machinery Manufacturing CO.,LTD. has a history of more than 14 years in the steel equipment manufacturing industry,with an annual production of 60 sets of various types of equipment,400 tons of roll.Our products are being sold to many countries ,such as Brazil in South America,Ukraine in Eastern Europe,Kazakhstan,Kenya, Indonesia,India and some other countries.We have won overseas customer's trust.
We has our own steel pipe production company,and all machinery be used are designed and made by ourself. The steel pipe we produce got the authentication ABS and API.We are the only company to get this authentication in Tianjin.
