A.Commodity:Slitting Line for Steel Coil
1. Material: Hot/cold rolled coil, etc
2. Thickness: 0.3-16mm
3. Width:100-2200mm
4. Inner diameter: 508mm
5. Max outer diameter: 1600mm
6. Capacity: 15T(depends on client's demand)
B. General introduction of Slitting Line
The whole line of the steel strip slitting machine can do uncoiling, slitting and recoiling works. slit the steel coil into narrower coils with any needed widths. The whole line mainly includes coil loading car, uncoiler, coil guide, slitting machine, scrap winder, tension unit, recoiler, coil unloading car, hydraulic system and electrical control system, etc. It is mainly applied for processing cold/hot rolled carbon steel, silicon steel,stainless steel, and all the other kinds of metal materials with surface spreading.
C.Main components of the Slitting Line
Coil loading car
Decoiler
Straightener
Coill guider
Slitter
Edge scrap recoilers
Pinch devi, tension unit, separating device
Recoiler
Coil unloading car
Hydraulic system and electrical control system
D.More type for the Slitting Line
| No. | Model |
Raw Width(mm) | Thickness(mm) | After slitting width(mm) | Speed(m/min) |
| 1 | HX-400 | 100-400 | 0.3-2.0 | 20-380 | 10-120 |
| 2 | HX-500 | 100-500 | 0.3-2.0 | 20-380 | 10-120 |
| 3 | HX-700 | 120-700 | 0.3-2.0 | 40-580 | 10-100 |
| 4 | HX-800 | 120-800 | 0.7-3.5 | 40-750 | 10-100 |
| 5 | HX-1300 | 400-1300 | 0.8-5.0 | 60-1250 | 10-80 |
| 6 | HX-1600 | 600-1600 | 2.0-8.0 | 60-1550 | 10-80 |
| 7 | HX-1800 | 900-1800 | 3.0-10.0 | 90-1750 | 10-60 |
| 8 | HX-2050 | 1000-2000 | 4.0-12.7 | 90-2000 | 10-40 |
| 9 | HX-2200 | 1000-2200 | 8.0-16.0 | 90-2150 | 10-30 |

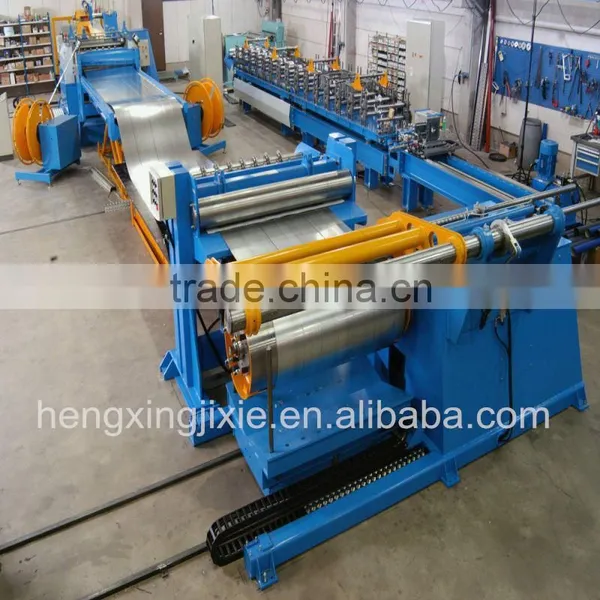

E.Photos of Slitting Line for Slitting Coil
1.Layout plan

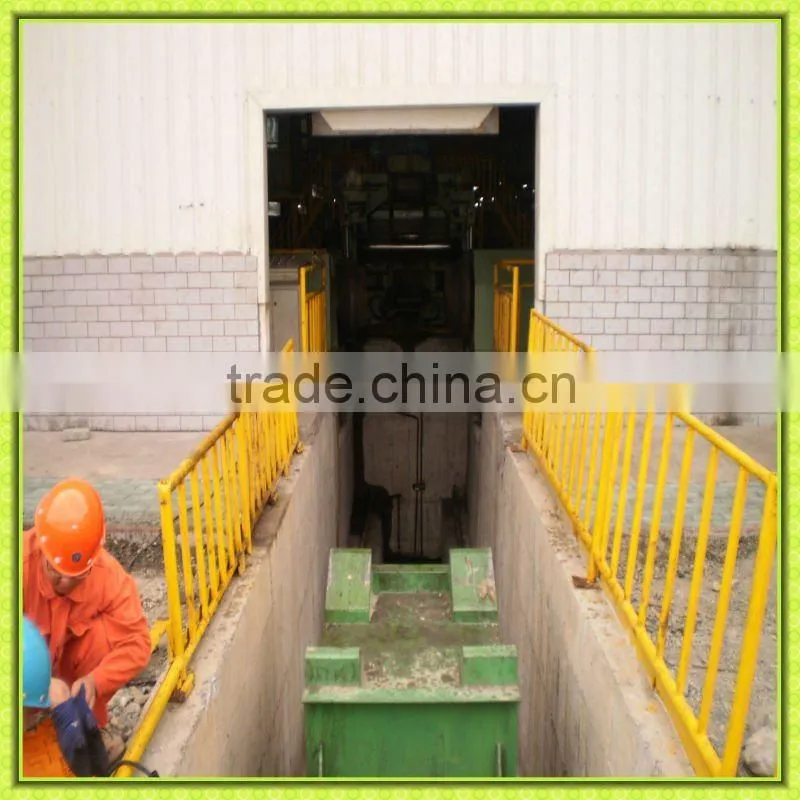

2.Coil Loading Car

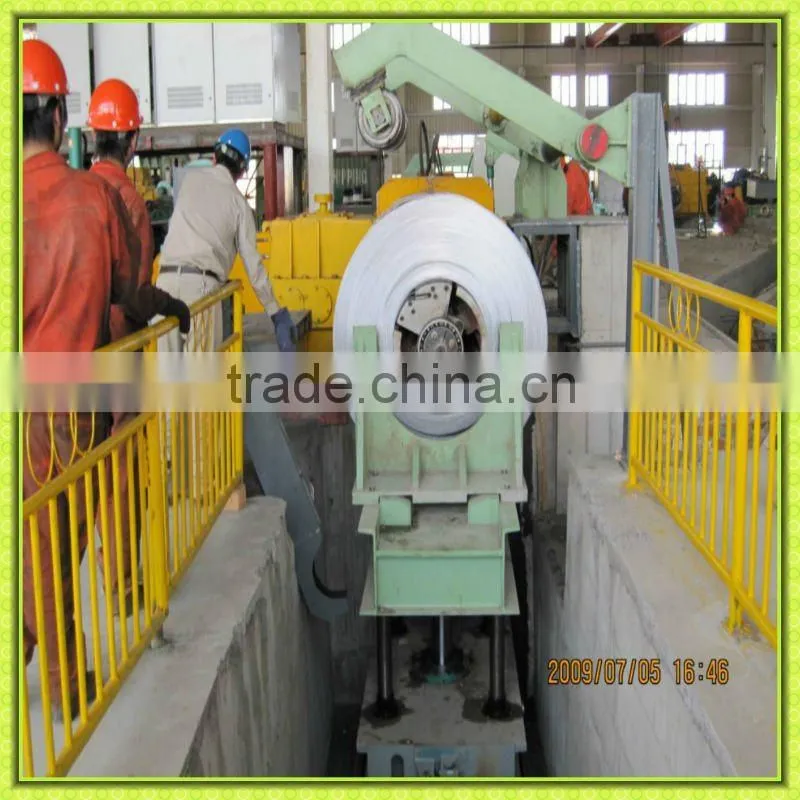

3.Decoiler

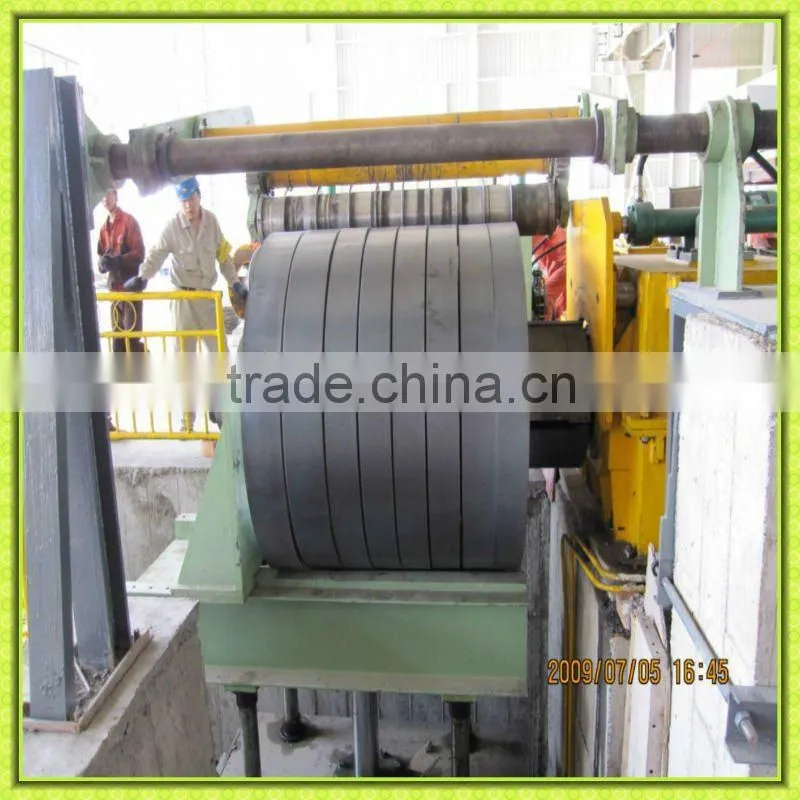

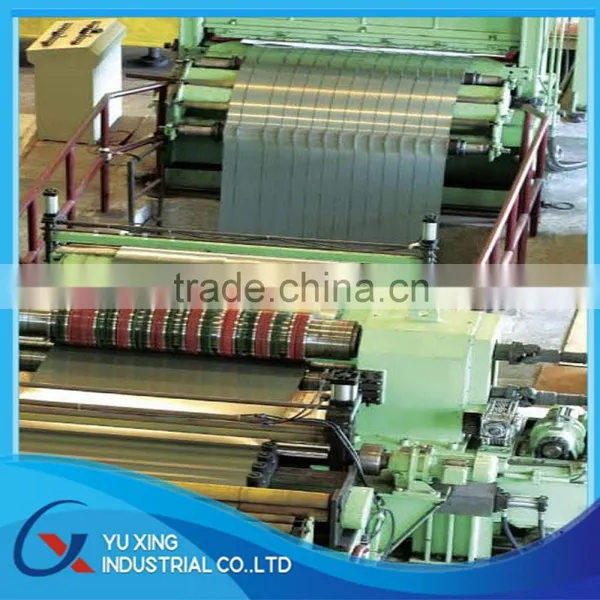

4.Slitter
5. Tension unit and fixed separator

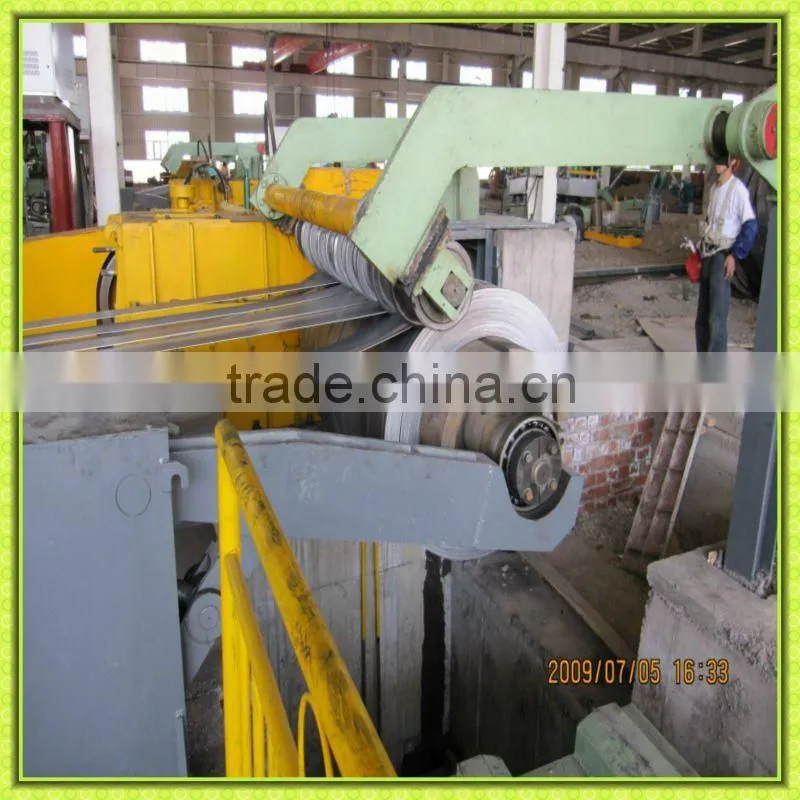

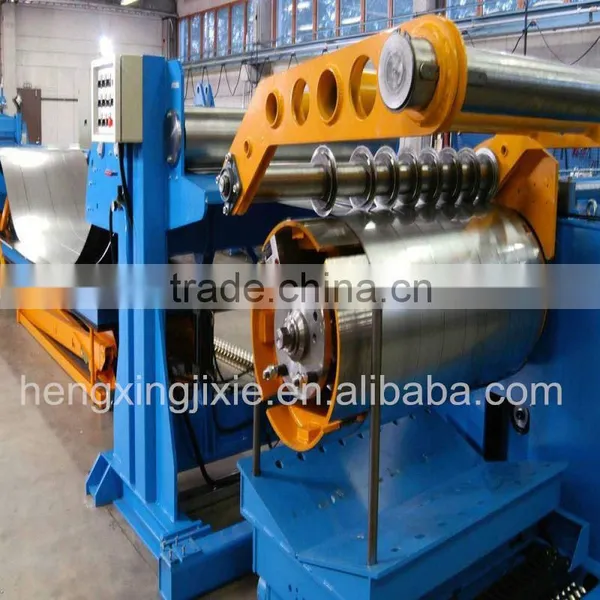

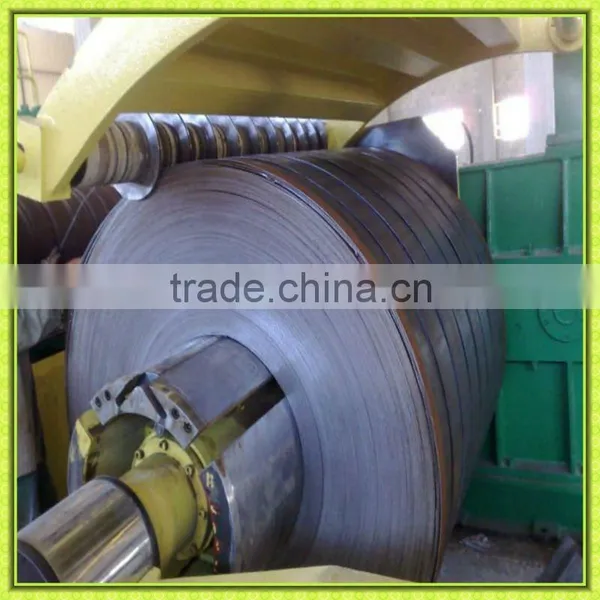

6. Recoiling unit
7.Coil unloading car

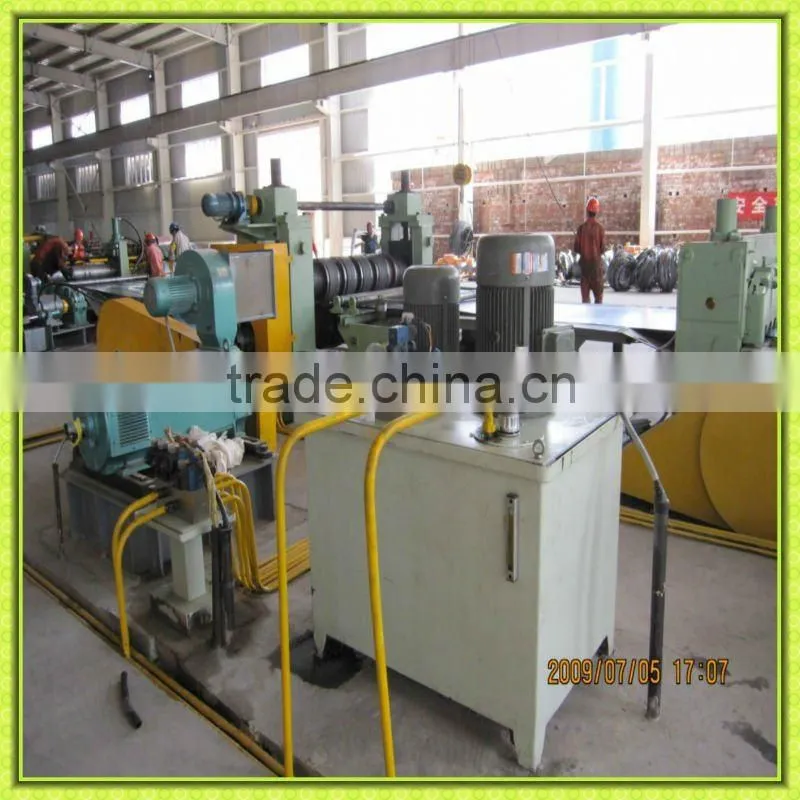

8. Hydraulic system
F. Company Profile
Hengxing Metallurgical Machinery Manufacturing CO.,LTD. has a history of more than 14 years in the steel equipment manufacturing industry,with an annual production of 60 sets of various types of equipment,400 tons of roll.Our products are being sold to many countries ,such as Brazil in South America,Ukraine in Eastern Europe,Kazakhstan,Kenya, Indonesia,India and some other countries.We have won overseas customer's trust.
We has our own steel pipe production company,and all machinery be used are designed and made by ourself. The steel pipe we produce got the authentication ABS and API.We are the only company to get this authentication in Tianjin.
1.Certificate

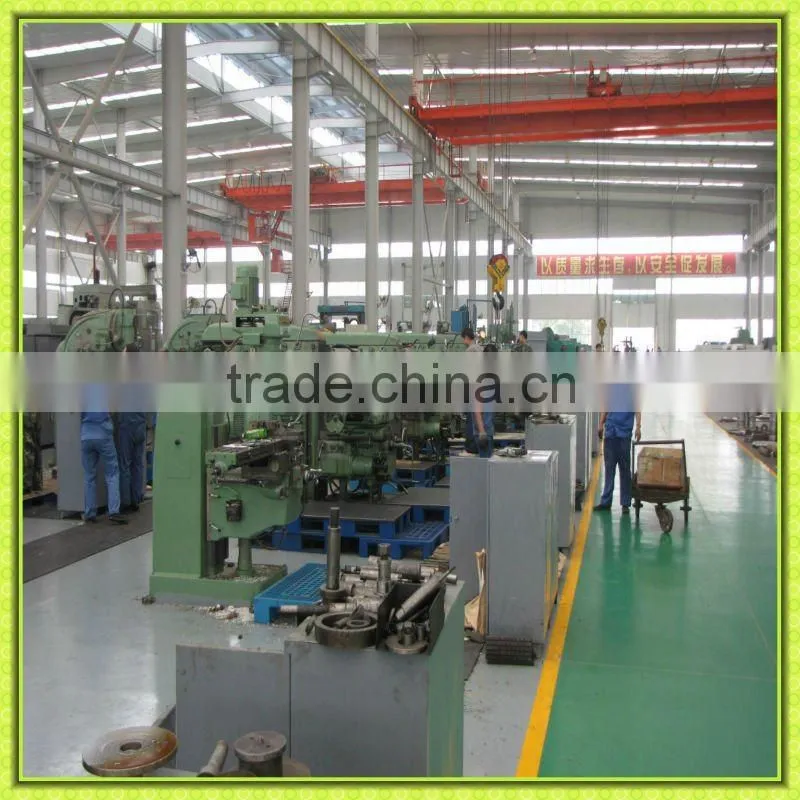

2.Our Factory
3.Customers visiting our factory
If you need more information,please feel free to contact me.
Best wishes
