Welcome to Shenzhen SYX Electronic Technology Co., Ltd.
PCB boards
Layers: 1-28 layer
Board thickness: 0.2-5mm
Copper: 0.5-3oz
Min holes: 0.2mm for drill
Min line/space: 4mil/4mil
Sloder mask: Green, Red, White, Yellow, Black, Blue,Mat Green...
Silkscreen: White, Yellow, Black, Red
Surface finish: HAL/HAL Leedfree,ENIG,Plating gold,Chem Tin/Ag,OSP/
Outline Profile: CNC routing/V-Cut/Belveling/Punching
100% E-test: Flying probe test, Fixing testing jig
Customed our products based on your need: material,specification,etc.
Item |
Technical Standards |
||
Rise |
1-20 Layer |
||
Material |
FR-4,CEM-1,CEM-3,Hight TG,FR4 Halogen Free,FR-1,FR-2,Aluminum |
||
Thickness |
0.2mm-3.2mm(8mil-126mil) |
||
Minimum thickness |
0.075mm(3mil) |
||
Cu |
1/2 oz min;5 oz max |
||
Min line width/spacing |
0.075mm/0.1mm(3mil/4mil) |
||
Min drill hole |
0.2mm(8mil) |
||
Punching the smallest aperture |
0.9mm(35mil) |
||
Surface finish/treatment |
HALS/HALS lead free,Chemical tin,Chemical Gold,Immersion gold Inmersion Silver/Gold,Osp,Gold Plating |
||
The largest size puzzle |
610mm×508mm |
||
Tolerance |
Pore spaces |
+/-0.075mm(3mil) CNC Driling |
|
Line width |
+/-0.05mm(2mil) or |
||
+/-20% of original artwork | |||
Aperture |
PTH L:+/-0.075mm(3mil) |
||
Non-PTH L:+/-0.05mm(2mil) | |||
Appearance Tolerance |
+/-0.125mm(5mil) CNC Routing |
||
+/-0.15mm(6mil) by Punching | |||
Warp |
0.70% |
||
Insulation Resistance |
10Kohm-20Mohm |
||
Conduction Resistance |
<50ohm |
||
Test voltage |
10-300V |
||
MLB |
Interlaminar deviation |
4 layers:0.15mm(6mil)max |
|
|
6 layers:0.25mm(10mil)max
| |||

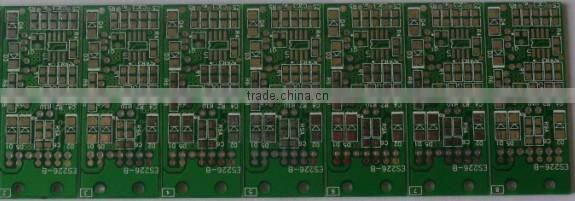

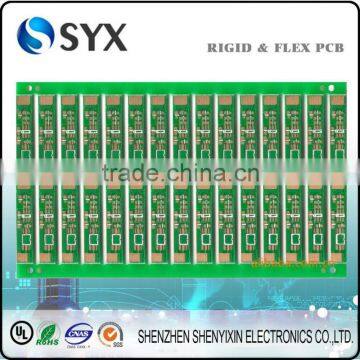

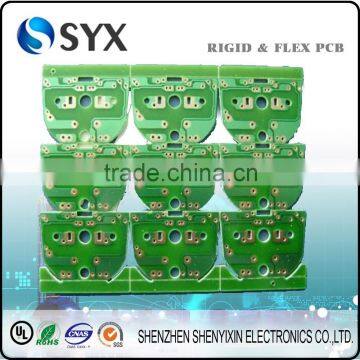

Pictures of our products:
Our products:
| HDI board | 1-layer PCB | 2-layer PCB | 4-layer PCB | 6-layer PCB |
| 8- layer PCB | 10- layer PCB | 12- layer PCB | 14- layer PCB | 16- layer PCB |
| Aluminium PCB | Multi-layer PCB | FPC | Rigid-flexible PCB | Copper PCB |
| PCB Assembly | Laser Stencil | rigid circuit board | LED PCB | led smd module |
Professional Pcb :
- Professional Surface-mounting and Through-hole soldering Technology.
- Various sizes like 1206,0805,0603 components SMT technology.
- ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
- PCB Assembly With UL,CE,FCC,Rohs Approval.
- Nitrogen gas reflow soldering technology for SMT.
- High Standard SMT&Solder Assembly Line.
- High density interconnected board placement technology capacity.
Why do you choose us?
1. We have 15 years experience professional PCB manufacturer.
2. Competitive price and high quality of PCB.
3. We offer copying and sampling service.
4. Solder marks types are according to your requirement. (Any colors are available.)
Shenzhen ShenYiXin Technology Co., Ltd. is a high-tech enterprise exporting samples and bulk production of printed circuit boards. We have nearly 10,000 square meter production plants, specializing in the production of HDI phone boards, communication boards, as well as a variety of single-sided, double-sided, multi-layer, high-frequency TG circuit boards and aluminum base boards with high technical content and strict quality requirements. Our products are widely used in communications, computers, industrial control, automobiles, household appliances, aerospace and other high-tech fields, and mainly exported to Europe, the United States and Southeast Asia. We have professional production equipment for aluminum PCBs
Hello, are you still looking for some manufactory to test your PCB circuit design ?
we offer 3-6 workdays delivery time for make prototypes.
And should you send us the gerber file. we would give your detailed information about the production at once, such as quotation, delivery etc.
