Gallon Washing Filling Capping Machine QGF-300

1.3gallon or 5gallon barrel water automatic filling
2.Rinse, Fill, Caper 3 in 1 function
3.Easy Operation
4.Energy saving design

QGF-300 Series Gallon Washing Filling Capping Machine specializes in producing 3-gallon or 5-gallon barrel water. Multiple2 sterilizing spray nozzles as well as the unique cap-sterilization technique ensure high sanitation-level production.

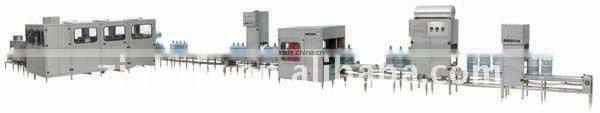

Automatic Gallon washing filling capping machine QGF-300

Composition :

   -1. Decapper (optional)

   -2. Auto-loader

   -3. Bottle washer

   -4. Filler

   -5. Capper

1. Decapper

-After clamping the cap, gas crock move upwards together with piston and complete decapping. By the control of PLC, the gallon washing filling capping machine claw release the cap and the gas crock reach the top.

2. Auto-loader

-Bottles automatic fixed at the carrier rings which holding the bottles on the neck while Bottles are turning upside down by carrier pockets

3. Bottle washer

-Inside and outside recycled washing with detergent temperature adjustable around 70°, with automatic water level control , and temperature  is controlled by detect sensors .

- Inside final rinsing with spring water or by ozonized water. (Ozone generator is optional).Two final water rinsing cycles to ensure the cleaning of bottles.

4. Filler

-Overflow-Pressure type filling system controlled by pressure filling structure with very high stability.

-Filling accuracy: 99%

5. Capper

-Linear capping machine for press-on caps, completed with caps distributor, caps chute, releasing head and closing pressing head.

- Before capping is possible to spray into the caps a sterilized solution trough a nozzle located on the cap chute. (Optional) and UV light is equipped to guarantee the sterilization of caps. (Optional)
