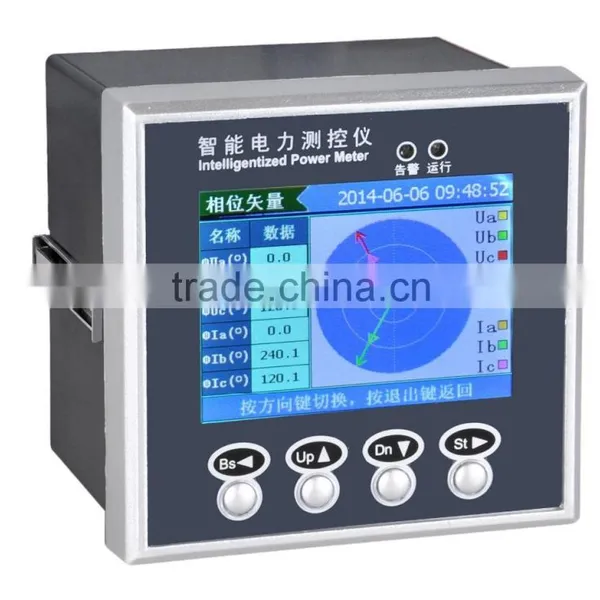

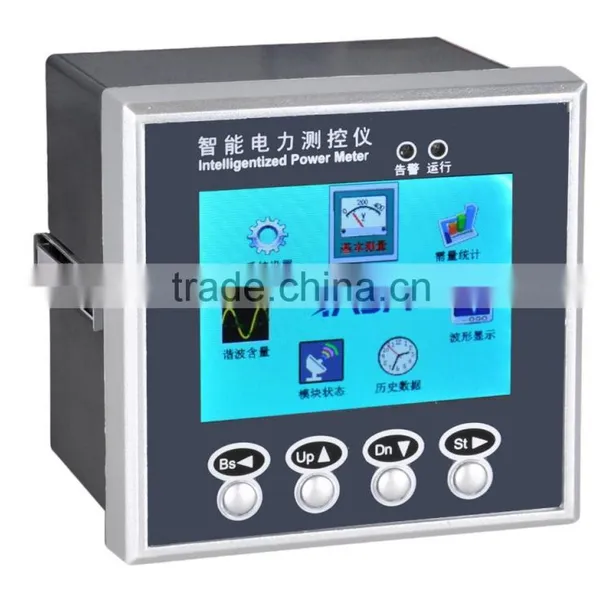

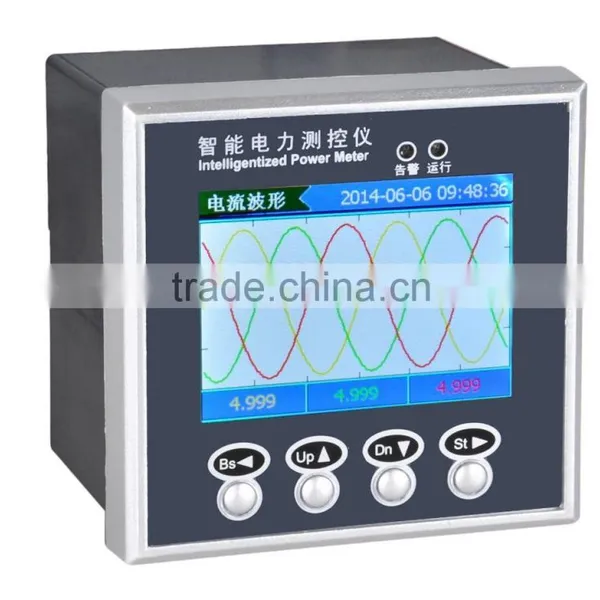

LCD Multifunciton Meter With Modbus

Name: LCD Multifunciton Meter With Modbus
Brand: YADA
SKU: 110255405

US$ 299 - 399 MOQ: 5 Units

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

YADA

Model Number:

YD6xxx

Guangdong Yada Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name YADA

Model Number YD6xxx

Measuring Current Range 0-5A

Measuring Voltage Range 30-600V

Accuracy Class 0.5

Operating Temperature -15-55℃

Dimensions 96*96*102.5mm

Specifications

multi-function power meter
1.upper and lower limit alarm
2,harmonics measurement,events records
3.DI,DO and comm

Accuracy	Voltage, current	0.2 class
	Power	0.5 class
	Frequency	+/-0.01Hz
	Energy	0.5 class
Input voltage	PT	1-50000 settable
	Secondary range	Input:0-600V/AC (direct L-L)
	Secondary range	Measure:30-600VAC(L-L) 20-400V/AC(L-N)
	Power consumption	<0.2VA
	Frequency range	45-60Hz
Input current	CT	1-50000 settable
	Secondary range	Input:0-5A
	Secondary range	Measure:10Ma-6A
	Max. overload	1.2 times continuous,10 times/sec transient
	Impedance	<0.1Ω
	Consumption	<0.2VA
Auxiliary power supply	Range	AC85V-265V or DC85V-330V or DC20-60V
Auxiliary power supply	Consumption	<5W
Communication	Comm. interface	RS485/Modbus-RTU 1 or 2 (optional) Profibus-DP(optional) TCP/IP Ethernet(optional)
	Data format	e-8-1,n-8-1,o-8- settable
	Baud rate	1200-19200
DI	12 channels(optional)	Passive dry contact input
DO	Settable	Contact capacity 5A *250V
AO	Settable	DC4-20Ma corresponding to the load capacity….
Mechanical characteristics	Installation type	Panel mounting
	Boundary dimension	96mm96mm102.5mm
	Portiforium dimension	92mm*92mm
