Help CenterAll of the Electric Parameters Digital Meter
Related Products
Specifications
1. Displaying V, I, P, PF, F, Kw2. RS485 output / DC4-20mA output / DI / DO
3. LED display

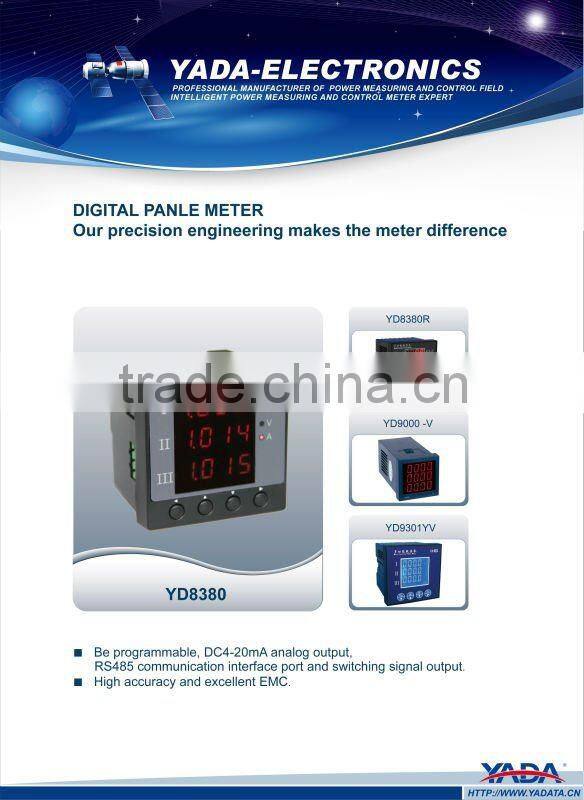

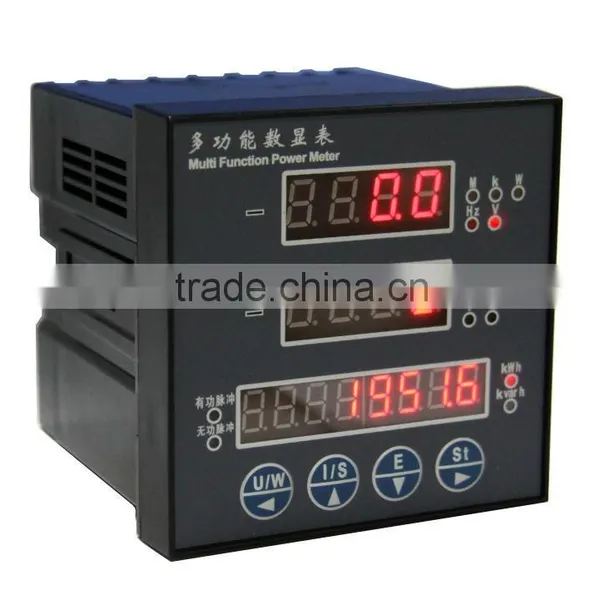

YD8380 series panel meter operation instruction
General description
YD8380 series single phase multi-function panel meter can measure all the parameters in single phase and LED display real time measured value, CT, PT, display menu can be set from the button
Model descriptions
YD8380: single phase current, voltage input, three lines LED displays + one active pulse output.
YD8381: single phase current, voltage input, three lines LED displays + one RS485 communication port + one active pulse output.
YD8382: single phase current, voltage input, three lines LED displays +one relay contact output + one active pulse output
YD8383: single phase current, voltage input, three lines LED displays + one DC4-20mA output + one active pulse output
YD8385: single phase current ,voltage input, three lines LED displays + one DC4-20mA output + one RS485 + one active pulse output
YD838A: single phase current, voltage input, three lines LED displays + one relay contact output +one DC4-20mA output + one RS485 + one active pulse output
Performance Index
Standard:GB/T13850-1998 IEC688:1992 DL/T721-2000 IEC61000-4
Max display: active, reactive energy: 99999999 other: 9999
Input range: voltage: AC 0~600V current:AC 0~6A
Accuracy class: electric energy (1.0), others (0.5)
Absorbed power: voltage circuit: < 0.6VA, current circuit: < 0.1VA
Overload capacity: Voltage: 800V continuous, current: 2 times rated continuous / 10 times rated 10 seconds
Frequency range: :40~65Hz
Load capacity: <350Ω(4~20mA output)
Communication protocol: Modbus –RTU
Contact capacity: AC250V 5A
Auxiliary power supply: AC220V±15%,50/60Hz,≤1.5VA
power frequency withstand voltage: Power supply/input/output: AC2kV/min•1mA
Insulation resistance:≥100MΩ
Impulse interference: 2KV 5 KHz
Surge impulse voltage: 2KV 1.2/50us
Dimension: 96 mm×96mm×98mm Trepanning:92 mm×92mm
Installation instruction: panel mounting, back side connecting
Case material: flame retardant plastic
Isolation: Power supply/input/output mutually isolate
