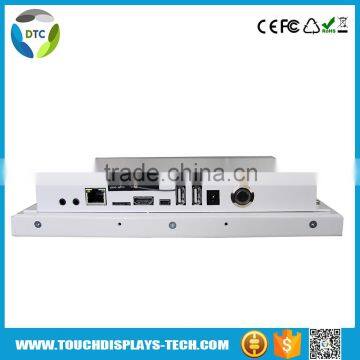

2015 Hot Sale New Style 8 Inch Open Frame Touch Monitor
Product Overview |
Features
1. Long lasting product cycle-enclosure
2. 1000:1 contrast ratio, and 250-nit brightness (LCD panel)
3. High quality panel with 160° x 160° or 178° x 178°(option) viewing angl
4. Optional front mount and rack mount bezels
5. Future generation panels phased-in without external changes
6. Mounting options including rear-mount and VESA mount
7. Multilingual on-screen display (OSD)
8. Fully RoHS compliant
9. Surface Acoustic Wave Technology with Dual serial / USB touch interface
Applications
1.Kiosk information system
2.Gaming and amusement
3.Light industrial shop-floor automation
Accessories
1.Serial or USB cable
2.VGA Video Cable(DVI Cable is optional)
3.Power Cord (US, EU or UK type)
4.Power Brick
5.User Manual (English only)
Product Picture & Specification |
| Case/Bezel Color | Steel/Black | |
| Display Size | 10.0" | |
| LCD Type | TFT LCD | |
| Aspect ratio | 4:3 | |
| Useful Screen Area | 376 mm x 301 mm | |
| Style | True Flat | |
| Touch panel | SAW Touch screen | |
| Touch interface | Dual USB / Serial | |
| Touch response time | 10ms (typical) | |
| Touch Monitor Dimensions | 415.0 x 343.0 x 54mm | |
| Optimal (native) Resolution | 1280 x 1024 | |
| LCD panel Pixel pitch | 0.294 x 0.294 mm | |
| Plug and Play | VESA DDC 1/2B | |
| LCD panel parameter | High LCD parameter | |
| LCD panel Colors | 16.7 million | |
| LCD panel Brightness | 250 cd/m2 | |
| LCD panel Response Time | 8 ms / 25 ms | |
| Viewing Angle (typical, from | Horizontal(eft/right) | ±80° or 160° total / ±89° or 178° total |
| Vertical ((up/down)) | ±80° or 160° total / ±89° or 178° total | |
| Contrast Ratio | 1000:1 | |
| Input Video signal connector | Mini D-Sub 15-Pin VGA type and DVI type (optional) | |
| Input sync format | 31.5-80.0 kHz 60-75 Hz | |
| Power Supply Type | External AC to DC power brick | |
| Monitor input: +12VDC ±5%,4.0 A; DC Jack (2.5) | ||
| AC to DC power brick input: 100-240 VAC, 50/60 Hz | ||
| Power dissipation: 48W max | ||
| On-screen display(OSD) | Controls(back): Power Menup Downuto | |
| Settings: contrast, brightness, H/V position; | ||
| RGB(color temp),clock, phase, recall; | ||
| Languages: English, German, French ,Spanish, Japanese | ||
| Temperature | Operating: 0°C to 40°C ;Storage -20°C to 60°C | |
| Humidity (non condensing) | Operating: 20%-80%; Storage: 10%-90% | |
| Shipping Carton Dimensions | 556 x 456 x206 mm | |
| Weight (approx.) | Actual: 6.5 kg; Shipping: 9 kg | |
| Warranty Monitor | 3 years(Except for LCD panel 1 year) | |
| Backlight lamp life: typical 50,000 hours to half brightness | ||
| Agency Approvals | CE/FCC RoHS | |
| Mounting Options | 75 mm and 100mm VESA mount | |
