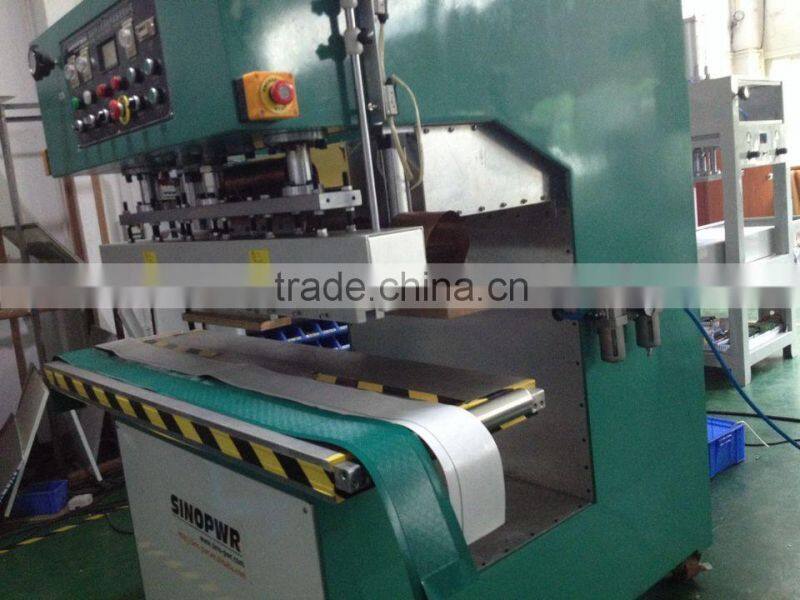

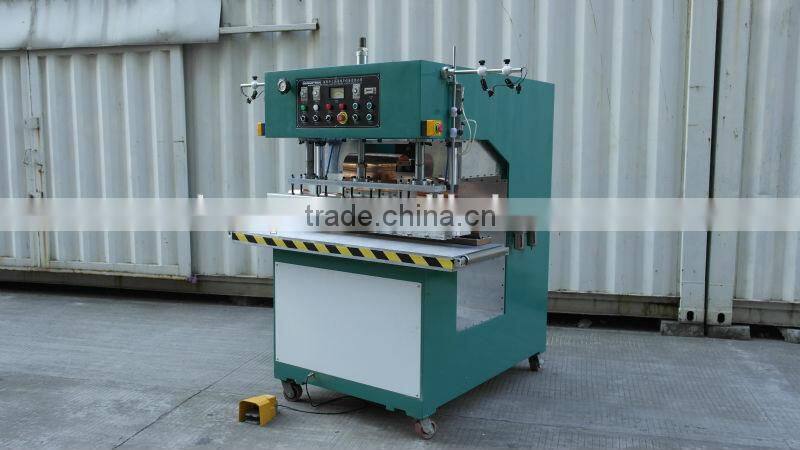

H.F pvc tents and car cover advertising cloth welding machine
HF Welder is designed specifically for production of small and large format tensile structures, membranes, tarpaulin, tents, oil booms, truck covers, swimming pool liners & covers, airline hangars, large billboards, fast doors, side curtains, etc. This basic design machine can be fitted with special impulse electrode for welding nonHF weldable fabrics made of PE and PP, as well as FlexEL ‘soft’ multilayer welding electrode and curved HF electrodes for sealing round window profiles made of clear PVC and any other shapes requiring precision welding.
We have divided our high frequency welding and cutting machines into several categories:
1.Automatic turntable high frequency welding or weld &cut machine(with/without robot)
2.Automatic sliding way high frequency welding or weld &cut machine
3.Manual shuttle/ push plate high frequency welding or weld &cut machine
4.Double heads high frequency welding or weld &cut machine.
Functions:
1. Steady frequency:
High frequeny blister packing machine strictly adopts industrial wave band 27.12/40.68 MHz according to the provision of nations "radio interference committee"(CISPR) with steady frequency device and prevent the leak of magnetism, have no interference about the outside environment.
2. Spark restrains system:
High frequency blister packing machine has high sensitive Spark restraint electro-circuit can check out the imbalance current which can bring spark and cut it off, meanwhile alert the operator.
3. Vibrate current setting:
Hgh frequency blister packing machine the output can be adjusted by adjuster according to thickness of material and the size of products, which ensure the quality of welding and promote production.
4. Security protection:
High frequency blister packing machine has security protection system of exceed voltage and electric current.
Main application:
Small and large format technical textiles PVC or PU coated
Single weld cycles up to 600cm2 welded area (line or curved shape)
Tensile structures, tents, shade systems, truck covers and side curtains,
Swimming pool liners and covers, oil booms, flood dams and water tanks
Airport hangars, portable storage structures, containment pools, ground liners
Advertising signs and large format billboards
Specification:
| Model | ZG-8KW-F1 | ZG-10KW-F1 | ZG-12KW-F1 | ZG-15KW-F1 | ZG-25KW-F1 |
| Power | 8000W | 10KW | 12KW | 15KW | 25KW |
| Input power | 15KVA | 18KVA | 20KVA | 25KVA | 35KVA |
| Voltage | 3Phase 220v/380V 50/60HZ or customized | ||||
| Frequency | 27.12MHz | ||||
| Rectifier | silicon diode | ||||
| Oscillation tube | 7T69RB | E3069 | 3130RB | 8T85RB | 8T25RB |
| Max pressure | 400kg | 600kg | 750kg | 1000kg | 1200kg |
| Operation mode | pneumatic | ||||
| Max distance of electrodes | 150mm | ||||
| The press stroke | 150mm | ||||
| The size of upper electrode | 100*700mm | 100*800mm | 100*900mm | 100*1000mm | 100*1200mm |
| The size of lower electrode | 450*900mm | 450*950mm | 450*1050mm | 450*1150mm | 450*1350mm |
| deep of throat | 750mm | ||||
| The range of temperature | 30~200 adjustable | ||||
| Welding time | 0---10s adjustable | ||||
| Productivity | < 360times/hour | ||||
About us :
ShenZhen Sinopwr Ltd is specialized to manufacture plastic welding machines .Our machine consists of stationary and movable high frequency welding machines, ultrasonic plastic welding machine, heat plate welding machine, automatic blister packaging machine line.We have also designed and manufactured a great number of welding machines according to specific customer's needs.
It's our honor to produce the machine for our customer, We are ready to be your partners for the win-win cooperation and mutual benefits. The constantly growing family of customers is the result of making their expectations come true.
