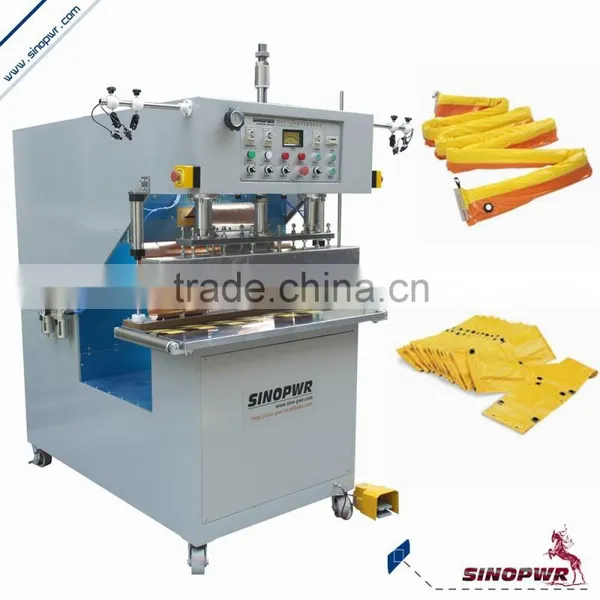

High frequency awning advertising canvas welding machine
1. Firmly weld ,be well meeting with materials of thick or thin. / Automatic stepping welding and connecting.
2. It is convenience in continuous welding, the welding length is optional.
3. With deep throat,1150mm material container for keeping finishi welding products,
4. The distance of body from horn can be customized.
5. Adopting high sensitive anti sparkle device NL5557 to avoid damaging the mould.
6. European standard high-frequency oscillatory square box, more reliable and Stable in output.
7. Laser scan system, precise positioning welding.
It is especially designed for procession on welding tarpaulin,sunshade,painting canvas,film curtain,advertising ,spark protection cloth ,tent of truck, canvas of agricultural,canopy, large of PVC canvas/digesters/ fabric, computer advertising / printing/ Film cloth, the membrane structure, tent Canvas shade etc
Specifications:
| Model | ZG-15KW-F2 | ZG-25KW-F2 | ZG-35KW-F2 |
| Power | 15W | 25W | 35KW |
| Input power | 25KVA | 35KVA | 50KVA |
| Voltage | 3Phase 220v/380V 50/60HZ or customized | ||
| Frequency | 27.12MHz | ||
| Rectifier | silicon diode | ||
| Oscillation tube | 8T85RB | 8T25RB | 8T87RB |
| Max pressure | 1000kg | 1200kg | 1500kg |
| Operation mode | pneumatic | ||
| Max distance of electrodes | 150mm | ||
| The press stroke | 150mm | ||
| The size of upper electrode | 100*1000mm | 100*1200mm | 100*1500mm |
| The size of lower electrode | 450*1150mm | 450*1350mm | 450*1650mm |
| Deep of the throat | 1100mm | 1150mm | 1500mm |
| The range of temperature | 30~200 °C adjustable | ||
| Welding time | 0---10sdjustable | ||
| Productivity | < 360times/hour | ||
FAQ:
1,How to install the machine?
2,How do I use the machine ?
3,How to set operating Mold and machine maintance?
4,Machine configuration
5,Troublesolving
