Resistive Touch Screen 10 Inch Touch Screen Monitor
US$ 156 - 316
MOQ: 1 Unit
Key Specifications
Get Latest Price
Products Status:
Stock
Screen Size:
Other, 10.4"
Type:
Other, SAW/Resistive
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
15.0" Capacitive Touchscreen MonitorUS$ 106 - 276MOQ: 1 Piece -
15" PCAP Cheap Touch Screen MonitorUS$ 106 - 276MOQ: 1 Piece
-
Capacitive Touch Screen Open Frame 12 Inch Lcd Monitor With USB RS232 VGA PortNegotiableMOQ: 1 Piece
-
10 4 Inch Open Frame Touch MonitorUS$ 95 - 226MOQ: 1 Piece
-
10.4 Inch Open Frame Lcd Touch Screen MonitorsUS$ 95 - 226MOQ: 1 Piece
Products Status
Stock
Screen Size
Other, 10.4"
Type
Other, SAW/Resistive
Interface Type
D-Sub, DVI, Serial, USB
Resolution
1024 x 768
Brand Name
Touch Displays
Model Number
1041E
Place of Origin
Sichuan, China
Product Description
Product Overview |
Features
1.Three year standard warranty
2. 500:1 contrast ratio, and 250-nit brightness (LCD panel)
3. High quality panel with 140° x 110° viewing angle
4. Fully RoHS compliant
5. Multilingual on-screen display (OSD)
6. Optional front mount and rack mount bezels
7. LED Backlight
8. Mounting options including rear-mount and VESA mount
9. Resistive Touch Technology
Applications
1. Countertop kiosk information systems
2. Gaming and amusement
3. Point-of-sale (POS)
4. Point-of-information
Accessories
1.Power Cord (USr EU or UK type)
2.Power Brick
3.User Manual (English only)
4.USB or COM Cable Optional
5.VGA Cable

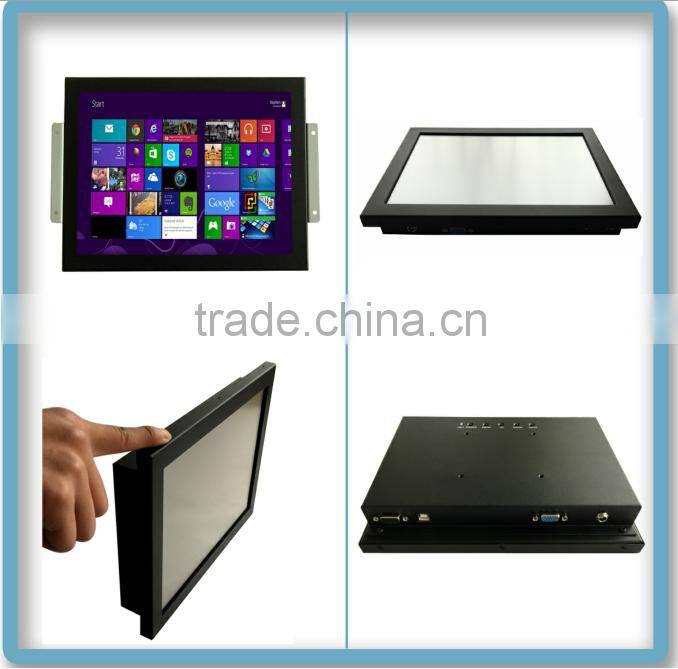

Product Picture & Specification |
| Model | 1041E-IOT | |
| Case/Bezel Color | Black /white(Customized) | |
| Display Size | 10.4" | |
| Touch panel | Resistive touch screen | |
| Touch response time | 5ms (Resistive typical) | |
| Touchcomputors Dimensions | 259x 40.5 x 195 mm | |
| Useful Screen Area | 212 mm x 159 mm | |
| Aspect ratio | 4:3 | |
| Optimal (native) Resolution | 1024 x 768 | |
| LCD panel Pixel pitch | 0.297 x 0.297 mm | |
| LCD panel Colors | 16.7 million | |
| LCD panel Brightness | 250 cd/m2 (brightness customized upto 1000 cd/m2) | |
| LCD panel Response Time | 20 ms | |
| LCD panel Contrast Ratio | 500:1 | |
|
Viewing Angle (typicalr from center) |
Horizontal (left/right |
±70° or 140° total |
|
Vertical (up/down |
±50°/±60° or 160° total | |
| Input Video signal connector | Mini D-Sub 15-Pin VGA type | |
| Input Touch signal connector | USB or COM | |
| Power Supply Type | Monitor input interface: +12VDC ±5%,4.0 A; DC Jack (2.5¢) | |
| AC to DC power brick input: 100-240 VAC, 50/60 Hz | ||
| Power Consumption: 8W | ||
| On-screen display(OSD) |
Controls(back): PowerMenuUpDownAuto; Settings: Contrast, Brightness, H/V position; RGB(color temp),Clock, Phase, Recall; Languages: English, German, French ,Spanish, Japanese, Italy, Chinese; |
|
| Temperature | Operating: 0°C to 40°C ;Storage -20°C to 60°C | |
| Humidity (non condensing) | Operating: 20%-80%; Storage: 10%-90% | |
| Shipping Carton Dimensions | 420 x 210 x 470 mm(4 PCS) | |
| Weight (approx.) | Actual: 2 kg ;Shipping: 10.2 kg | |
| Warranty Monitor | 3 years(Except for LCD panel 1 year) | |
| Backlight lamp life: typical 10,000 hours to half brightness | ||
| Agency Approvals | CE FCC RoHS(UL or GS Customized) | |
| Mounting Options | 75 mm and 100mm VESA mount | |

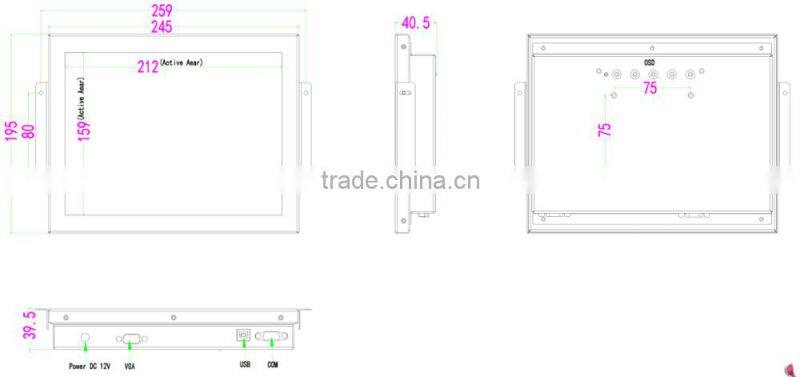

Drawings
