High Quality PC800x600 Hammer Crusher For Sale
- 90 Set / Sets per Month
- Shanghai qingdao dalian
- T/T
Product Details
Type: | Hammer Crusher | Capacity(t/h): | 5-280t/h | ||
Place of Origin: | Shanghai, China | Brand Name: | LIPU | Model Number: | various |
Application: | Coal,cement,gypsum,alumen,brick,tile,limestone | Warranty: | 1 year |
Packaging Details
Standard container
Product Description
Specifications
PC800x600 Hammer Crusher:1.Application:Coal,cement etc
2.Max.feed size:100-350mm
3.Discharged Size:0-60mm
4.ISO9001:2000
Hammer Crusher,PC800x600 Hammer Crusher
1.PC800x600 Hammer Crusher Feathers:
1.Application:Coal,cement,gypsum
2.Max.feed size:100-350mm
3.Discharged Size:0-60mm
4.ISO9001:2000
2.Application of PC800x600 Hammer Crusher
PC800x600 Hammer Crusher is mainly used for crushing medium-hard or brittle materials with hardness not more than 300Mpa and 15% moisture, such as coal, cement, gypsum, alumen, brick, tile, limestone, etc. It has the features of simple structure, big crushing ratio, high production efficiency, uniform particle size, etc. This equipment can be adjusted to reach various discharged granularity as the customers' requests.

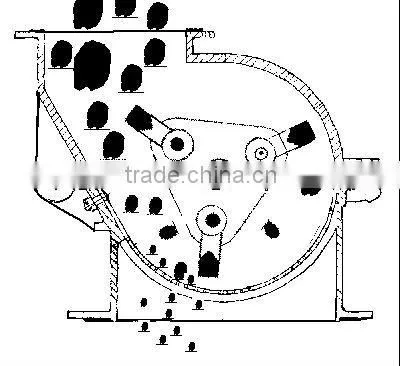

3.Working Principle of PC800x600 Hammer Crusher
The main working part of Hammer Crusher is the rotor with hammers. The rotor consists of main shaft, disk, hinge pin and hammers. A sieve plate is below the rotor. The motor drives the rotor to rotate at a high speed. When the materials get into the crushing cavity, they are crushed by the rotating hammers, the crushed products which meet the required size can be discharged from the sieve plate and become the final products, the products with larger size are brought back to the crushed area for being re-crushed until they reach the required size.
4.Types of PC800x600 Hammer Crusher
We have various of PC800x600 Hammer Crusher, such as Φ400×400, Φ600×400, Φ600×600, Φ800×600, Φ800×800,Φ1000×800,Φ1000×100,Φ1250×800,
Φ1250×125,Φ1400×140,Φ1600×160etc. In order to give you a responsible quotation, you can inform us the following
information:
1. What’s the material you are going to deal with?
2. What’s the granularity of the material?
3. What’s the granularity of the final products are you going to achive?
4. What’s the producing capacity you are going to achieve?
Our engineers will suggest you the most suitable one for you according to your information.
5.Product parameter of PC800x600 Hammer Crusher
Model | Rotor speed (r/min) | Input opening size(mm) | Max. feed size (mm) | Discharged Size (mm) | Capacity (t/h) | Power(kw) | weight (t) | Overall Dimension (L×W×H) (mm) |
Φ400×400 | 1500 | 145×450 | 100 | 0-30 | 5-8 | 7.5 | 0.9 | 844×942×878 |
Φ600×400 | 1000 | 295×450 | 100 | 0-35 | 10-12 | 18.5 | 1.03 | 1054×972×111 |
Φ600×600 | 1000 | 295×570 | 100 | 0-35 | 12-18 | 45 | 2.14 | 1315×840×150 |
Φ800×600 | 1000 | 350×570 | 120 | 0-45 | 20-25 | 55 | 2.45 | 1515×2586×10 |
Φ800×800 | 1000 | 350×850 | 120 | 0-45 | 35-45 | 55 | 3.05 | 1515×2831×10 |
Φ1000×800 | 1000 | 580×850 | 200 | 0-45 | 25-40 | 110 | 6.5 | 3206×2210×15 |
Φ1000×100 | 1000 | 580×1060 | 200 | 0-45 | 40-80 | 132 | 7.6 | 3514×2230×15 |
Φ1250×800 | 750 | 650×850 | 200 | 0-45 | 20-50 | 132 | 11.7 | 2630×1780×20 |
Φ1250×125 | 750 | 650×1330 | 200 | 0-45 | 90-110 | 185 | 13.2 | 2630×2180×20 |
Φ1400×140 | 750 | 1050×154 | 250 | 0-45 | 120-170 | 280 | 17.2 | 2790×2800×23 |
Φ1600×160 | 600 | 1500×178 | 350 | 0-60 | 220-280 | 450 | 22.8 | 3350×3120×26 |
Any change of technical parameters, there is no further notice.
6.After-Sale Service:
Erection and Commissioning
Operator Training
Spare Parts Supply
Warranty Terms: More than 12 months
Delivery Time:25~30 days after receiving advanced payment
Products Certificate: CE, ISO9001:2000
7.We(Shanghai LIPU Heavy Industry Co.,Ltd) believe that you can rely on us as we provide you quite satisfactory service and products with best quality at most competitive price in the world. We are very happy if you do not hesitate to send us any of your inquiries and we will always give satisfactory services.
Looking forward to hearing from you at your convenience!
Company Profile
Shanghai Lipu Heavy Industry Co., Ltd. is a professional mining machine manufacturer in China. We are located in the international economic and financial center - Pudong in Shanghai. Lipu Heavy Industry is engaged in mining machine research, design and technical advisory services. We can provide service and technical solutions for the excavation of rock, minerals and cement in the mining and construction industries. We mainly manufacture 100-5000tpd capacity stone crushing plants, 800-3000tpd cement plants and 100-5000tpd beneficiation plants.
We focus on fine workmanship and technical innovation. We have independent development, processing and manufacturing capabilities and also have an independent R&D center and a reliable production base. Our R&D team mainly consists of mechanical engineers, chemical engineers and electric engineers. They specially supply the basic research, new product development and technical support in the field of mining machinery. Equipped with modern cutting equipment, advanced computer aided design systems and perfect three-dimensional simulation test systems, our company can ensure our products' performance.
While expanding domestic market, we have exported our rock crushers, stone crushing equipment and beneficiation equipment to Chile, Venezuela, Peru, Russia, Ukraine, the USA, Kazakhstan, South Korea, Yemen, Australia, Indonesia, Malaysia, Vietnam, Africa, and so on, totally more than 50 countries and regions.
Our company has a group of experienced workers and on-site engineers, which ensure the advantage of production. We always strictly control product quality to make sure every set of machine is of high performance and high reliability. Every item must pass our strict quality checks prior to shipment. Our after-sales service group is ready to help customers solve technical problems. We also let engineers train your employees if needed.
