Specifications
impact crusher hammer ::PCFK Impact Hammer Crusher;
2.feed size:0-80mm;
3.discharge size:0-8mm;
4.hot sell.
Beief Introduction of impact crusher hammer :

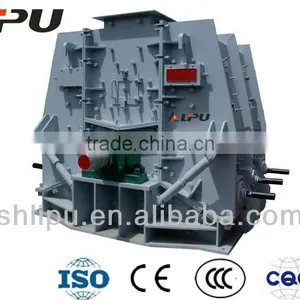

Reversible Impact Hammer Crusher has advantages of both Hammer Crusher and Impact Crusher. It can break brittle materials of medium hardness, such as coking coal, anthracite, coal used for fluidized bed boiler of heat power plant, coal gangue, gypsum, alum, etc.
Working Principle of impact crusher hammer :
Reversible Impact Hammer CrusherMaterials enter crushing chamber from feeding hopper, and are impacted to wear-resisting toothed plates on inlet by high speed hammers, this is the first crushing process. Crushed materials with almost the same size enter the main crushing chamber for second crushing. Materials from main crushing chamber are impacted between toothed plates and hammers for many times, and discharged from the outlet. Final product size can be controlled by adjusting space between rotor and impact plates.
Technical Parameters of impact crusher hammer :
Model |
Rotor Diameter(mm) |
Rotor Length(mm) |
Feed Size(mm) |
Discharge Size(mm) |
Capacity(t/h) |
Rotary Speed(r/min) |
Power(kw) |
Weight(t) |
|
|
|
|
|
100% |
93% |
|
|
|
|
PCFK-1212 |
Φ1200 |
1200 |
≤80 |
0-8 |
0-3 |
100-180 |
740 |
220-280 |
19 |
PCFK-1214 |
Φ1200 |
1400 |
≤80 |
0-8 |
0-3 |
120-220 |
740 |
220-280 |
21 |
PCFK-1216 |
Φ1200 |
1600 |
≤80 |
0-8 |
0-3 |
150-250 |
740 |
315-355 |
24 |
PCFK-1414 |
Φ1400 |
1400 |
≤80 |
0-8 |
0-3 |
220-300 |
740 |
355-450 |
25 |
PCFK-1416 |
Φ1400 |
1600 |
≤80 |
0-8 |
0-3 |
250-330 |
740 |
355-560 |
30 |
PCFK-1616 |
Φ1600 |
1600 |
≤80 |
0-8 |
0-3 |
280-350 |
740 |
450-560 |
32 |
PCFK-1618 |
Φ1600 |
1800 |
≤80 |
0-8 |
0-3 |
300-400 |
740 |
560-710 |
37 |
PCFK-1818 |
Φ1800 |
1800 |
≤80 |
0-8 |
0-3 |
400-450 |
740 |
710-800 |
45 |
PCFK-1820 |
Φ1800 |
2000 |
≤80 |
0-8 |
0-3 |
450-500 |
740 |
800-900 |
50 |
PCFK-1825 |
Φ1800 |
2500 |
≤80 |
0-8 |
0-3 |
500-550 |
740 |
900-1000 |
60 |
