Specifications
Mobile Cone Crusher Plant:1.Model:ZDYG series;
2.Content:jaw crushher,feeder,belt conveyor,optional spare parts;
3.Brand new
Brief Introduction of Mobile Impact Crusher Manufacturer :
Jaw crusher mobile crushing plant is a kind of new rock broken equipment, mainly used in metallurgy, chemical industry, building materials, water and electricity engineering, to process material often needed to move, especially for liquidity stone processing used in the highway, railway, water and electricity engineering.
Mobile Jaw crusher greatly expands the crushing operation concept fields. Its design purpose is standing in customer's position, to eliminate broken processing barriers given to customers by the broken site, environment as your primary settle solution, and to provide efficient, low cost of the project operation hardware facilities.
Performance of Mobile Impact Crusher Manufacturer :
Excellence performance: PEV series high-performance crusher, the feeder and vibrating screen integrated with the crusher, under the screen belt conveyor, vibrating screen and the integration of the crusher installation, turning traction axis, facilitate highway transportation and field further, the vehicle-mounted installation support, the equipment stationed swift and conveniently, integration of vehicle-mounted motor and control box.
Use And Advantages of Mobile Impact Crusher Manufacturer :
1.Integration of a complete set of the equipment installation forms, eliminate the fission of infrastructure components installed homework, reduce the material consumption, working hours. The rational compact space layout, improve the flexibility of the station;
2.Mobility flexible
The vehicle-mounted chassis is high, the width of frame is less than operations trailer, the turning radius is small, convenient for ordinary highway, more convenient for driving in the crushing field of the rugged bad road environment. To save time for station in construction site. The more conducive to the reasonable construction area, for whole crushing procedure provides more flexible space and reasonable layout configuration;
3. Reduce the material transportation cost.
Jaw crusher mobile crushing plant can supply the crushing of first line, exempt from the intermediate link which material to be broken away from the scene, which reduces the material transportation cost. In addition, extension units can more directly put the broken material into a transport trunk, and turn away from the scene;
4. Direct and effective work role
integration of jaw crusher mobile crushing stand, can be used independently, can also according to the customer in the process of material type, product requirements and provide a more flexible technology configuration, meet user mobile crushing, mobile screen classification requirements, make generation organization, logistics transport more direct and effective, and to maximize the cost reduction;
5. Strong adaptability and flexible configuration
Jaw crusher mobile crushing plant, in view of crushing, screening system, can be independently operate in single unit, can also flexibly composite system configuration unit to joint work. Discharge hopper side out for screening materials transportation mode provides a variety of configuration flexibility, the integration of the diesel generator unit configuration in addition to giving the unit power supply, can also pointed to the process system configuration unit for the joint power supply.
Technical Parameters of Mobile Impact Crusher Manufacturer :
| Model | YG9538E6090 | YG1149E75110 | YG1149E86110 | YG1360E90120 |
| Transportation length(mm) | 11900 | 13100 | 14600 | 14600 |
| Transportation height(mm) | 3650 | 4450 | 2550 | 2950 |
| Transportation width(mm) | 2780 | 2930 | 4500 | 4500 |
| A(mm) | 12100 | 13300 | 14600 | 14600 |
| B(mm) | 4100 | 4850 | 3300 | 3300 |
| C(mm) | 4350 | 4930 | 5300 | 5300 |
| Tire Configuration | C Dual axial | C Triaxial | C Triaxial | C Triaxial |
| Weight | 40 | 57 | 65 | 83 |
Jaw Crusher
| Model | PEV6090 | PEV75110 | PEV860X1100 | PEV900X1200 |
| Inlet Size(mm) | 600X900 | 750X1100 | 860X1100 | 900X1200 |
| Max Feeding Size(mm) | 480 | 630 | 720 | 750 |
| Outlet Adjustable Range(mm) | 70-180 | 80-190 | 100-200 | 100-225 |
| Capacity(t/h) | 95-200 | 150-320 | 200-500 | 250-550 |
| Power(kw) | 75 | 110 | 160 | 160 |
Feeder
| Model | GZD960X3800 | GZD1100X4200 | GZD1300X4900 | GZD1300X4900 |
| Volume(m3) | 8.5 | 11 | X | X |
| Power(kw) | 6 | 11 | 11 | 15 |
Belt Conveyor
| Main belt conveyor model | B800×8.5 m | B1000×9 m | B1200×9.5 m | B1200×9.5 m |
| Main belt conveyor power(KW) | 7.5 | 11 | 11 | 11 |
| Side-opening belt conveyor (optional) | B450×3 m | B500×3.5 m | B600×4 m | B650×4 m |
| Side-opening belt conveyor power(KW) | 2.2 | 3 | x | x |
Options
| Iron Separator(optional) | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-12 | RCYD(C)-12 |
| Genset (optional) (kw) | 180 | 220 | 250 | 270 |
Working Principle Of Mobile Impact Crusher Manufacturer :

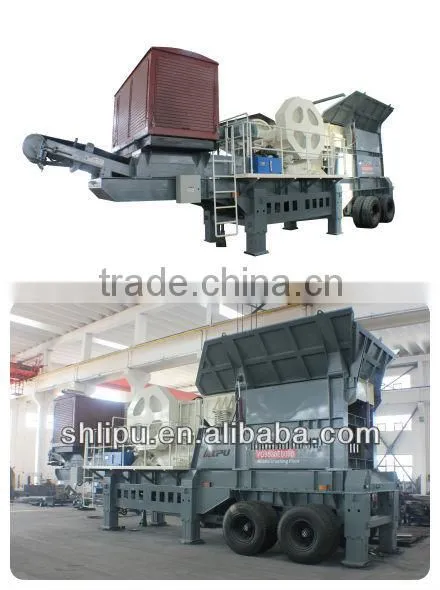

Image of Shanghai Lipu Mobile Impact Crusher Manufacturer :
Lipu Company
Lipu Factory
Workshop
Quality Certification
Customers' Visitation
Sales Network
Other Products in Lipu
Please Contact Us With No Heasitation!
Sincerely Welcome Your Visitation!
