Specifications
high frequency screening:1.Ore processing;
2.Sieve Mesh:0.15-0.25mm;
3.Feeding Size:<1mm;
4.Certificate:CE,ISO9001:2000.

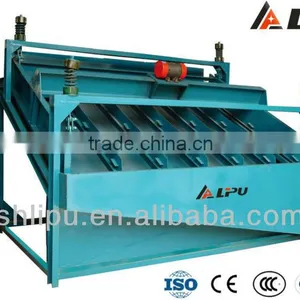

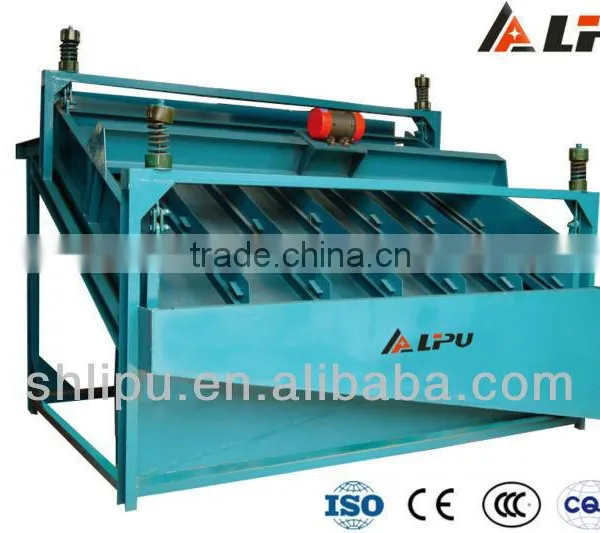

Structure of High Frequency Screen Machine for Sale :
High Frequency Screening Machine consists of vibration exciter, ore pulp distributor, screen frame, machine frame, suspension springs and sieve, etc.
Features of High Frequency Screen Machine for Sale :
High efficiency, small amplitude and high frequency of screening. it differs from the conventional screens with breaking of the surface tension of slurry which makes ore of small granularity vibrate on sieve cover in high speed and accelerates the separating of large-density useful mines and increase the contacting probability of the materials smaller than output granularity and the sieve pore. The materials small than the output granularity, especially the big-density materials and pulp can therefore get through the sieve pore together. The sieving medium is made of stainless steel. The high-frequency screen is necessary for grainy iron ore. The obliquity of the sieving medium is adjustable according to the concrete situation. If the obliquity is close to 55º, the fineness will be 300, occupying 75 percent.
Application of High Frequency Screen Machine for Sale :
This series screens are always used in processing minerals such as ferrous metals including hematite&magnetic and nonferrous metals including lead, zinc, glod and silver etc.This machine works in a re-circulating network with ball mill, which can upgrade the fineness of ferrous and nonferrous metals. Its efficiency is twice as that of spiral classifier.
Product parameter of High Frequency Screen Machine for Sale :
| Specification | Sieve Mesh(mm) | Feeding Size(mm) | Screen Obliquity | Swing | Frequency (r/min) | Motor power (kw) |
| 1200×2000 | 0.15~0.25 | <1 | 15o~55o | 0.6~2.2 | 3000 | 0.25 |
| 1500×3000 | 0.15~0.25 | <1 | 15o~55o | 0.6~2.2 | 3000 | 0.37 |
| 2000×3000 | 0.15~0.25 | <1 | 15o~55o | 0.6~2.2 | 3000 | 0.37 |
| 2200×3800 | 0.15~0.25 | <1 | 15o~55o | 0.6~2.2 | 3000 | 0.37 |
Any change of technical parameters, there is no further notice.
