Home > Manufacturing & Processing Machinery > Mining Machinery > Mineral Separator > Placer Frp Spiral Chute for Mining Industry

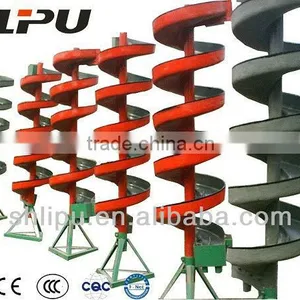

Placer Frp Spiral Chute for Mining Industry
US$ 1,000 - 99,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New, new
Type:
Other, Sprial Separator, spiral chute
Production Capacity:
According to model
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Dalian etc. for frp spiral chute
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Small Vibrating Screen for Pebble River SandUS$ 1,000 - 999,999MOQ: 1 Set -
Most Popular Products Spiral Chute Price for Mineral IndustriesUS$ 1,000 - 99,999MOQ: 1 Set
-
Low Cost Tungsten Spiral Chute in IndustryUS$ 1,000 - 99,999MOQ: 1 Set
-
Liquid Soap and Liquid Detergent Low Speed AgitatorUS$ 1,000 - 999,999MOQ: 1 Set
-
Linear Vibrating Screen for Chemical With Multi-layersUS$ 1,000 - 999,999MOQ: 1 Set
Type
Other, Sprial Separator, spiral chute
Production Capacity
According to model
Place of Origin
Shanghai, China
Brand Name
Lipu Brand frp spiral chute
Model Number
5LL series frp spiral chute
Voltage
According to moel
Power(W)
According to model
Dimension(L*W*H)
According to model
Weight
According to model
Certification
CE,ISO9001:2000
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Features of frp Spiral Chute :
1.Simple structurer;
2.Light weight, lower power consumption;
3.Easy operation, reliable operation, easy maintenance;
4.Smaller area, high capacity, and high separating efficiency.
Structure of frp Spiral Chute :
Spiral chute is mde of feeder, feed chute, spiral flute, bracket, intercepting slot, and supporting frame,etc.
Application of frp Spiral Chute :
Spiral is used to process iron, stannum, tungsten, tantalum. niobium, gold ore, colliery, monazite, rutile and zircon of the size btween 0.3 and 0.02mm, metals and nonmetal minerals with enough proportion deviation.
Technical Parameters of frp Spiral Chute:
| Model | Helix No. | Cycle | Feed Size(mm) | Feed Density(%) | Capacity(t/h) | Area(m2) | Height (m) |
| 5LL400 | 1-2 | 4-5 | 0.02-2 | 30-50 | 0.5-0.2 | 0.25 | 1.5 |
| 5LL600 | 1-2 | 4-5 | 0.02-2 | 30-50 | 0.8-1.2 | 0.5 | 2.6 |
| 5LL900 | 2-3 | 4-5 | 0.03-3 | 30-50 | 2-3 | 1.2 | 3.2 |
| 5LL1200 | 2-4 | 4-5 | 0.03-3 | 30-50 | 4-6 | 2 | 5.23 |
| 5LL2000 | 2-4 | 3-5 | 0.04-4 | 20-45 | 15-40 | 5.7 | 6.6 |
Any change of technical parameters, there is no further notice.
