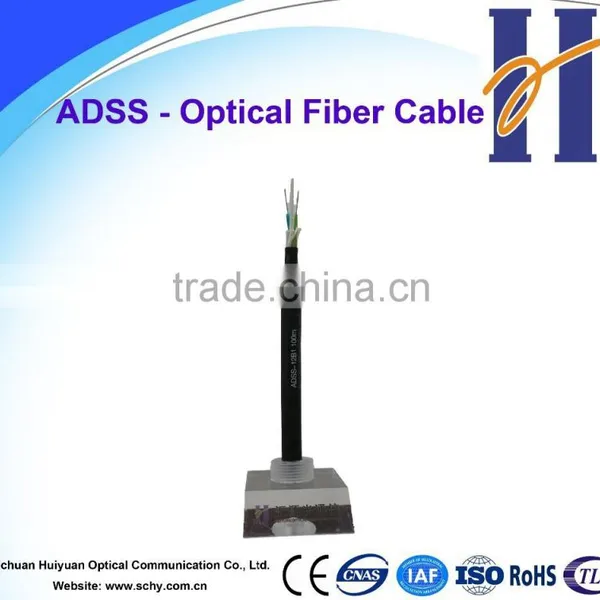

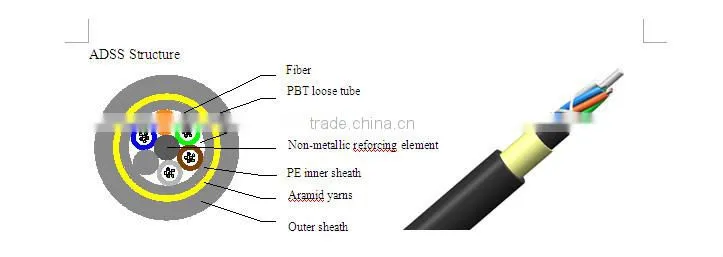

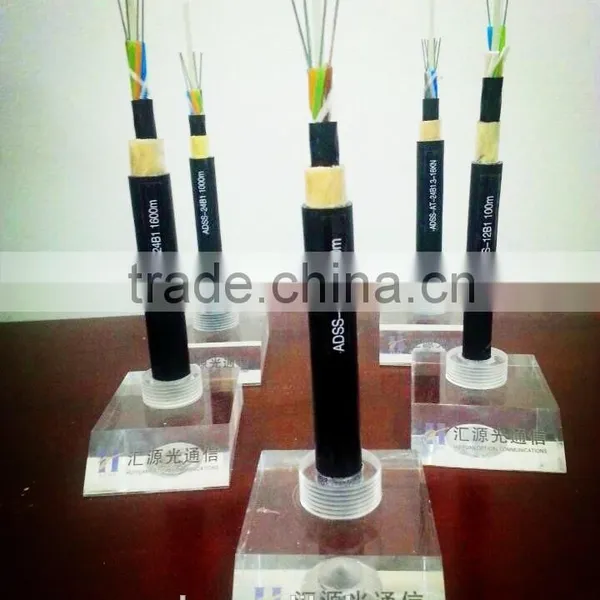

ADSS cable is made of non-metallic material and self-supporting with the aerial power transmission line. The tension resistance material is aramid yarn with high elasticity modules. And optimizing structure can deploy the weight of the cable and its mechanical and physical properties appropriately and minimize the load on the tower.
Note: our Company provides 2to 288 corefiber ADSS cable which suitable for 50 ~ 2000m span and various meteorologicalconditions. Welcome all users to call or sent letters for more information.
Packaging Detalis:

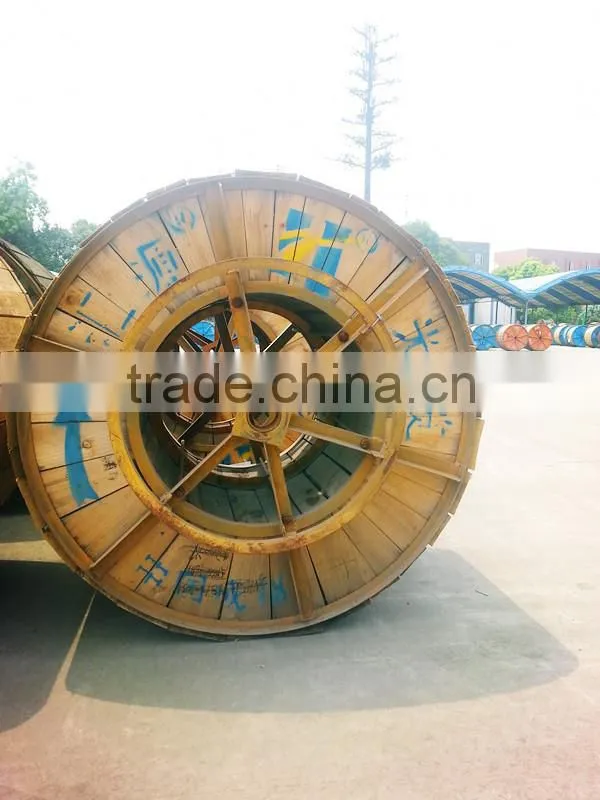

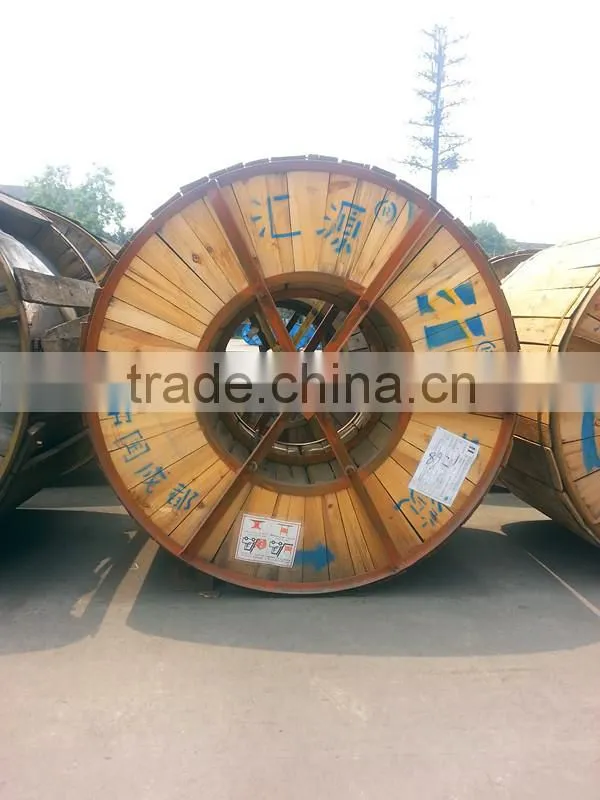

All cables will be delivered on drums with protection of both ends of the cable. Each drum will be a waterproof mark, with clearly factory name, date, cable type, cable length in unit gross weight, cable outer diameter, cable weight, and so on and will be provided the length of all fibers in each drum.
Delivery:
Within 10-20 days after receipt of the deposit confirmed.
1.Lightness, small outer diameter, no torsion, high tensile resistance
2.High modular of elasticity, suitable for large stress-strain
3.Small thermal expansion coefficient
4.Good vibration resistance
5.Excellent flexibility capability
6.Free from lighting, and electric-magnetic interrupt
7.Adapt different span and sag installation requirements through changing sectional area of aramid fibers in the cable
1.Install on the same pole or tower with high voltage power transmission line within 220KV.
2.Not rely on eclectic phase wire or ground wire, can be executed on an electric circuit.
3.Communication and electrical power transmission are different system; and the installation, maintenance and repair can be operated with no influence on each other.
4.Calculate out the electric field and sag accurately by computer to ascertain the best installation place.
Industry leader
1.In 1995, first test run of Huiyuan ADSS cable put into operation in Sichuan power grid. After nearly 20 years test, the line still runs safely, which creates the longest run record of domestic ADSS cable.
2.In 1996, the first domestic ADSS cable with high-voltage electrical corrosion sheath ran safely on the 220KV line till so far.
3.In 2008, ADSS cable which successfully achieved the largest span of 1860 meters ran safely in the mountainous region with heavy ice of western Sichuan.
Item |
Unit |
3KN |
5KN |
7KN |
9KN |
11KN |
12KN |
14KN |
16KN |
18KN |
20KN |
Fiber count |
core |
2-24 |
|||||||||
Outer diameter |
mm |
11.7 |
11.9 |
12.2 |
12.5 |
12.8 |
12.9 |
13.1 |
13.2 |
13.4 |
13.6 |
Cable weight |
kg/km |
107/115 |
111/119 |
116/124 |
119/127 |
122/130 |
125/133 |
130138 |
134/143 |
138/147 |
140/149 |
Rated tensile strength |
N |
8550 |
13260 |
18940 |
22720 |
26510 |
30300 |
35980 |
41660 |
45980 |
48400 |
Max operation tension |
N |
3420 |
5300 |
7570 |
9090 |
10600 |
12120 |
14390 |
16660 |
18390 |
19360 |
Modular of elasticity |
GPa |
7.71 |
10.06 |
12.73 |
14.42 |
16.04 |
17.59 |
19.74 |
21.76 |
23.26 |
24.03 |
Coefficient of thermal expansion |
E-6/℃ |
22.86 |
16.59 |
12.30 |
10.40 |
8.96 |
7.83 |
6.55 |
5.79 |
4.97 |
4.69 |
Max. electricity resistance |
kv |
12 or 25 |
|||||||||
Min. static bending radius |
mm |
176 |
179 |
183 |
188 |
192 |
194 |
197 |
198 |
201 |
204 |
Min. dynamic bending radius |
mm |
293 |
298 |
305 |
313 |
320 |
323 |
328 |
330 |
335 |
328 |
Comfortable Working Environment

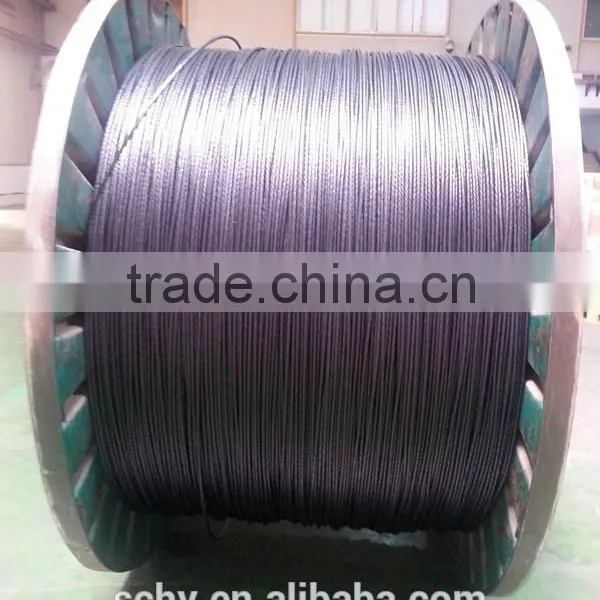

Packing
