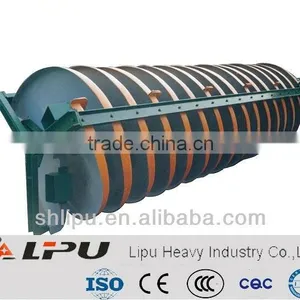

Help CenterLarge Handling Capacity Concentrator Spiral Chute for Gravity Separation
Related Products
-
Ground Spike Wood Pellet Rotary Dryer SupplierUS$ 1,000 - 99,999MOQ: 1 Set -
Heavy Duty Circle Motion Vibrating Screen DrawingUS$ 1,000 - 999,999MOQ: 1 Set
-
Linear Compost Vibrating Screen for Quarry Crusher PlantUS$ 1,000 - 999,999MOQ: 1 Set
-
Industrial Lead Zinc Ore Flotation Machine ManufacturerUS$ 10,000 - 999,999MOQ: 1 Set
-
Top Choice Mineral Good Quality Flotation MachineUS$ 10,000 - 999,999MOQ: 1 Set
Specifications
concentrator spiral chute:1.Model:5LL series;
2.Capacity:0.2-40t/h;
3.Height:1.5-6.6m;
4.Application:iron, stannum.
Features of concentrator spiral chute :
1.Simple structurer;
2.Light weight, lower power consumption;
3.Easy operation, reliable operation, easy maintenance;
4.Smaller area, high capacity, and high separating efficiency.

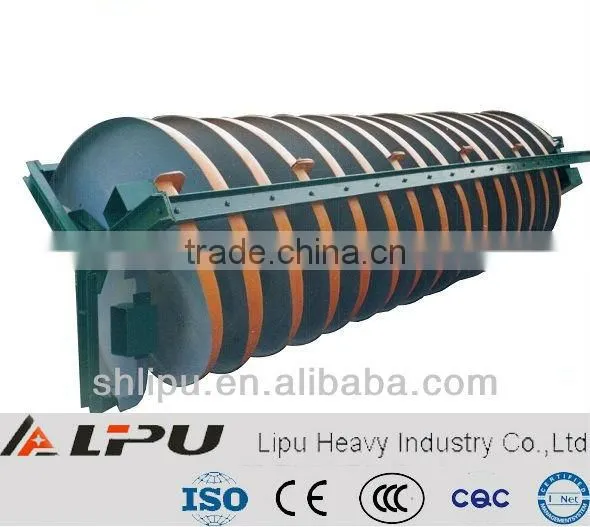

Structure of concentrator spiral chute :
Spiral chute is mde of feeder, feed chute, spiral flute, bracket, intercepting slot, and supporting frame,etc.
Application of concentrator spiral chute :
Spiral is used to process iron, stannum, tungsten, tantalum. niobium, gold ore, colliery, monazite, rutile and zircon of the size btween 0.3 and 0.02mm, metals and nonmetal minerals with enough proportion deviation.
Technical Parameters of concentrator spiral chute :
| Model | Helix No. | Cycle | Feed Size(mm) | Feed Density(%) | Capacity(t/h) | Area(m2) | Height (m) |
| 5LL400 | 1-2 | 4-5 | 0.02-2 | 30-50 | 0.5-0.2 | 0.25 | 1.5 |
| 5LL600 | 1-2 | 4-5 | 0.02-2 | 30-50 | 0.8-1.2 | 0.5 | 2.6 |
| 5LL900 | 2-3 | 4-5 | 0.03-3 | 30-50 | 2-3 | 1.2 | 3.2 |
| 5LL1200 | 2-4 | 4-5 | 0.03-3 | 30-50 | 4-6 | 2 | 5.23 |
| 5LL2000 | 2-4 | 3-5 | 0.04-4 | 20-45 | 15-40 | 5.7 | 6.6 |
Any change of technical parameters, there is no further notice.
